ZQV 1.5N/50 RD

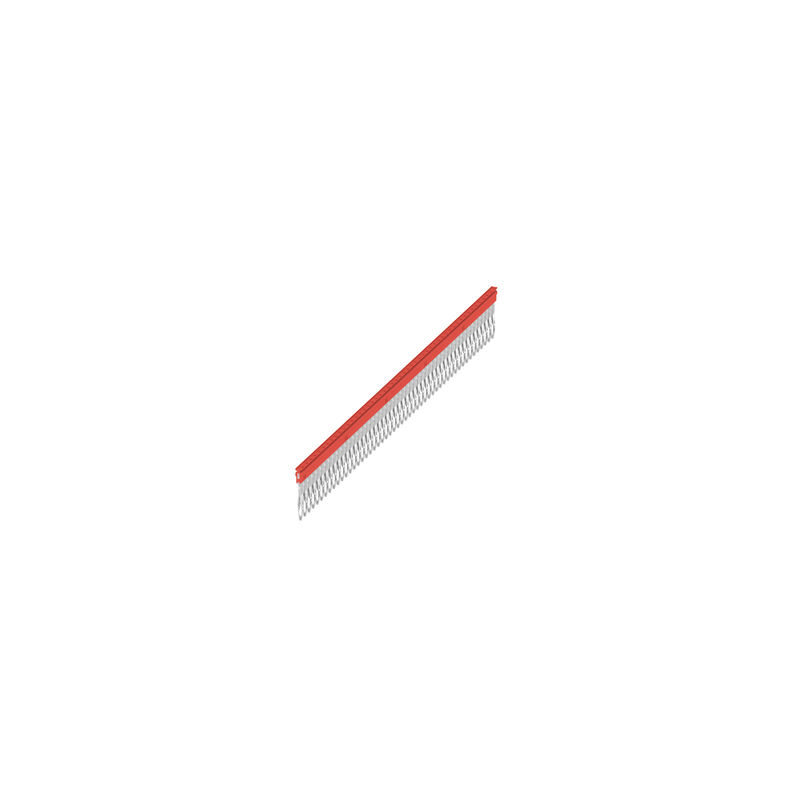

Product image

ZQV 1.5N/50 RD

Cross-connector (terminal), Plugged, red, 17.5 A, Number of poles: 50, Pitch in mm (P): 3.50, Insulated: Yes, Width: 175 mm

Produkt ID 1985820000
Download datablad Engineering Support Product Downloads
Er tilbehør til 166 Anvendte produkter 467
Omologazioni General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Additional technical data Dimensions General Rating data Important note Besorolások

Omologazioni

ROHS
Conforme

General ordering data

Version
Cross-connector (terminal), Plugged, red, 17.5 A, Number of poles: 50, Pitch in mm (P): 3.50, Insulated: Yes, Width: 175 mm
Order No.
1985820000
Type
ZQV 1.5N/50 RD
GTIN (EAN)
4050118370270
VPE
5 Styk

Dimensions and weights

Depth
21,9 mm
Depth (inches)
0,862 inch
Height
2,8 mm
Magasság (coll)
0,11 inch
Width
175 mm
폭 (인치)
6,89 inch
Net weight
16,26 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
długotrwała temperatura użytkowa, min.
-60 °C
Varaktig driftstemperatur, max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Nincs 0,1 tömeg% feletti SVHC

Material data

Základní materiál
Wemid
Farbe
red
Brennbarkeitsklasse nach UL 94
V-0

Additional technical data

Befestigungsart
Plugged
explosionsgeprüfte Ausführung
No

Dimensions

Raster in mm (P)
3,5 mm

General

Number of poles
50

Rating data

Bemessungsspannung
400 V
Nennstrom
17,5 A

Important note

Product information
Due to stability and temperature reasons It is only possible to break out 60% of contact elements The usage of cross connectors reduces the rated voltage to 400VThe voltage reduced to 25V if cut cross connection with blank cut edges are used

Besorolások

ETIM 8.0
EC000489
ETIM 9.0
EC000489
ETIM 10.0
EC000489
ECLASS 14.0
27-25-03-03
ECLASS 15.0
27-25-03-03
