Properties

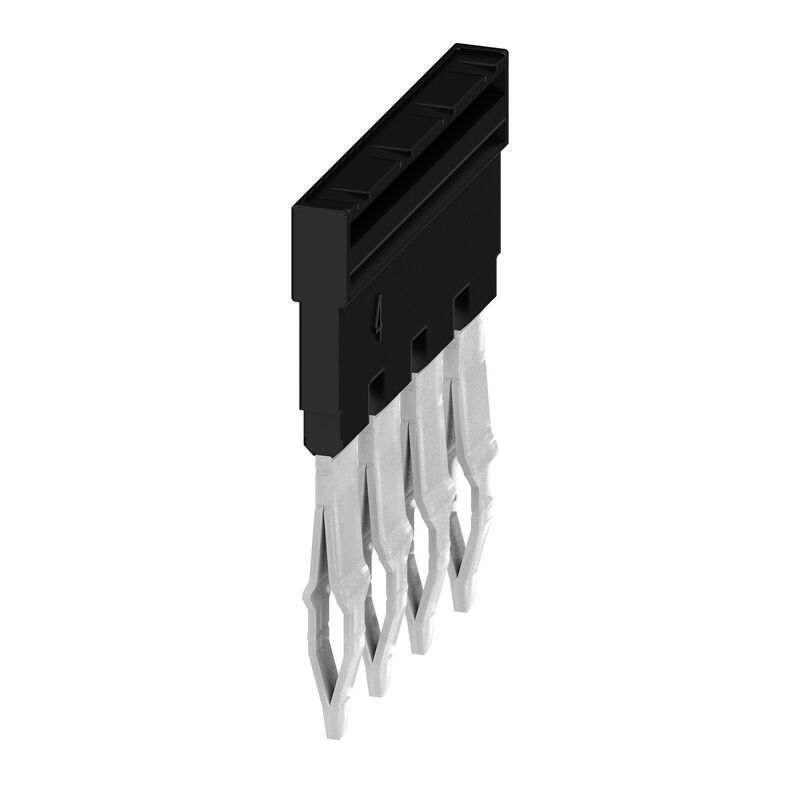

| Version | Cross-connector (terminal), Plugged, Number of poles: 4, Pitch in mm (P): 6.00, Insulated: Yes, 32 A, black |
| Order No. | 2810890000 |
| Type | ZQV 4N/4 BK |
| GTIN (EAN) | 4064675283607 |
| Qty. | 60 items |
| Depth | 23.3 mm |
| Depth (inches) | 0.917 inch |
| Height | 2.8 mm |
| Height (inches) | 0.11 inch |
| Width | 27.95 mm |
| Width (inches) | 1.1 inch |
| Net weight | 2.865 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature | -60 °C...130 °C |
| Material | Wemid |
| Colour | black |
| UL 94 flammability rating | V-0 |
| Explosion-tested version | No |
| Type of fixing | Plugged |
| Type of mounting | Plugged |
| Rated current, multi-pole | 32 A |
| Type | Cross-connector |
| Pitch in mm (P) | 6 mm |
| Number of poles | 4 |
| Rated current | 32 A |
| Product information | Due to stability and temperature reasons It is only possible to break out 60% of contact elements The usage of cross connectors reduces the rated voltage to 400VThe voltage reduced to 25V if cut cross connection with blank cut edges are used |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_249791) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2810890000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2810890000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
