Properties
| Version | Accessories, Test adapter, 6 A |
| Order No. | 1052680000 |

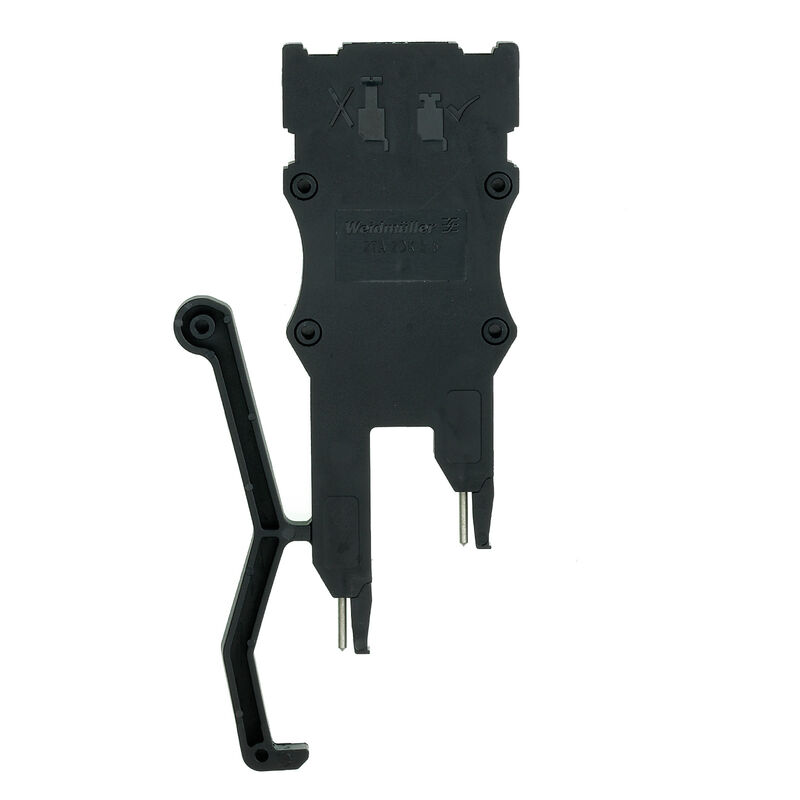

| Type | ZTA ZDK 2.5/ZA |
| GTIN (EAN) | 4032248847907 |
| Qty. | 5 items |
| Depth | 110.7 mm |
| Depth (inches) | 4.358 inch |
| Height | 35.6 mm |
| Height (inches) | 1.402 inch |
| Width | 5.1 mm |
| Width (inches) | 0.201 inch |
| Net weight | 19.4 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | e1c310ef-6b67-4efa-80a6-d307472f4de9 |
| Material | Wemid |
| Colour | black |
| Colour of operational elements | red |
| UL 94 flammability rating | V-0 |
| Version | For the terminals |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 1 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Snap-on | No |
| Type of mounting | Plugged |
| With snap-in pegs | Yes |
| Clamping range, max. | 1.5 mm² |
| Clamping range, min. | 0.5 mm² |
| Connection cross-section, stranded, max. | 1.5 mm² |
| Connection direction | top |
| Number of connections | 1 |
| Stripping length | 6 mm |
| Tightening torque, max. | 0.3 Nm |
| Tightening torque, min. | 0.3 Nm |
| Type of connection | Tension-clamp connection |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 1.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Pitch in mm (P) | 5.1 mm |
| Number of poles | 1 |
| Rated cross-section | 1.5 mm² |
| Rated voltage | 250 V |
| Rated current | 6 A |
| Volume resistance according to IEC 60947-7-x | 1.83 mΩ |
| Pollution severity | 3 |
| Surge voltage category | III |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59982) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1052680000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1052680000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002555 |
| ETIM 7.0 | EC002555 |
| ETIM 8.0 | EC002555 |
| ETIM 9.0 | EC002555 |
| ECLASS 9.0 | 27-14-11-48 |
| ECLASS 9.1 | 27-14-11-48 |
| ECLASS 10.0 | 27-14-11-48 |
| ECLASS 11.0 | 27-14-11-48 |
| ECLASS 12.0 | 27-14-11-48 |
| ECLASS 13.0 | 27-25-03-04 |
| ECLASS 14.0 | 27-25-03-04 |
| ROHS | Conform |
