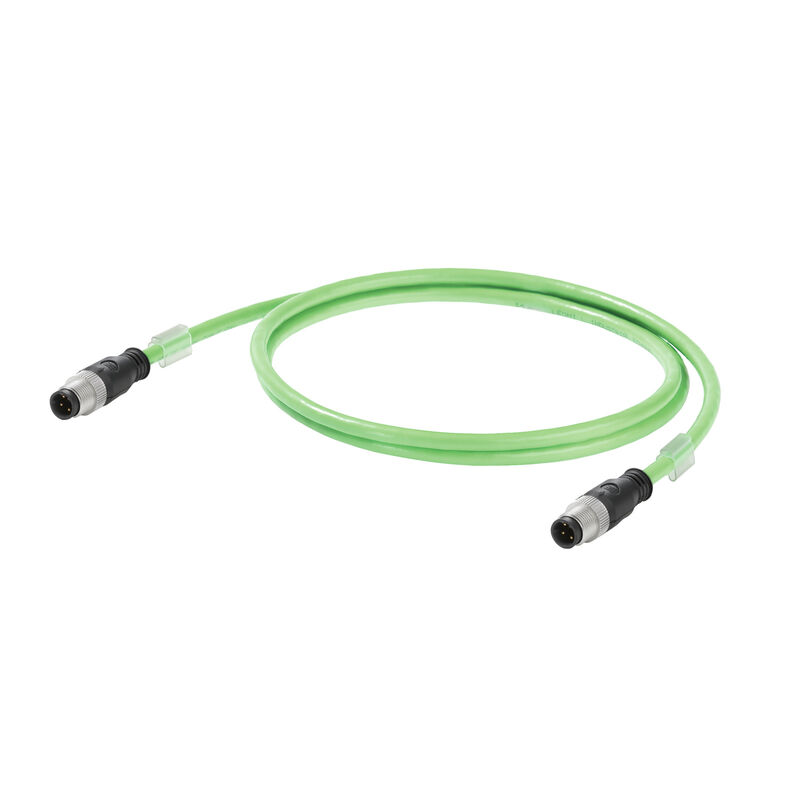

Dragline cable, PROFINET, M12 D-code – IP 67 straight pin, M12 D-code – IP 67 straight pin, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 14 m

Produkt ID 1025950140
Download datablad Engineering Support Product Downloads
Tilbehør 6 Anvendte produkter 24
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

Godkännanden
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

General ordering data

Version
Dragline cable, PROFINET, M12 D-code – IP 67 straight pin, M12 D-code – IP 67 straight pin, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 14 m
Заказ №
1025950140
Type
IE-C5DD4UG0140MCSMCS-E
GTIN (EAN)
4050118059557
Qty.
1 Styk

Dimensions and weights

Длина
14 m
Length (inches)
551,181 inch
Net weight
907,22 g

Temperatures

Storage temperature
-50 °C...70 °C
Operating temperature
-40 °C...70 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

General standards

Certificate no. (cULus)
E316369

Standards

Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

Cable structure

Arrangement of wire cores
Star-quad
Complete shielding
Aluminium foil
Shielding braid made from copper wiring
Cross-section
4*AWG 22/7 - 0.32 mm²
Diameter of inner sheathing
3,9 mm
Espesor del material del revestimiento
0,9 mm
Espesor del trenzado de apantallamiento
0,13 mm
Filler
As central element
Insulation
PE
Insulation cross-section
1,5 mm
Material del conductor
Stranded tin-plated copper wire
Material sheath
PUR
Number of wires
4
Overlap of shielding braid
85 %
Secuencia de los colores conductores – pares de conductores
white, yellow, blue, orange
Sheath diameter, max.
6,7 mm
Sheath diameter, min.
6,3 mm
Sheathing colour
green (RAL 6018)
Shielding
SF/UTP
Standard designations
2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC
Strands
7
Wire core insulation thickness
0,38 mm

Electrical properties of cable

Categoría
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Kapacitás 1 kHz-en
52 nF/km
Napięcie robocze UL
600 V
Resistance differential
3 %
Resistenza loop
120 Ω/km
Speed
180 m/min
Задержка наклона
40 ns/100m
Передаточный импеданс
20 mΩ/m at 10 MHz
Рабочее напряжение (номин. знач. UL)
600 V
Характеристический импеданс
100 ± 15 Ω at 1–100 MHz
신호 전파 시간
5,3 ns/m
테스트 전압: 와이어-와이어-차폐
2000 Veff, 50 Hz, 1 min

Mechanical and material properties of cable

Abrasion resistance
very good
Acceleration
4 m/s²
Bending cycles
3 Mio
Fire propagation
No
Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
7.5 x cable diameter
Pulling force
≤ 150 N
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1
Silicone-free
Yes
Speed
180 m/min
UV-resistant
Yes

Plug, left

Plug left
M12, D-coded, IP67, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
M12, D-coded, IP67, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
