IE-SWM-SL08-8GESFP

IE-SWM-SL08-8GESFP

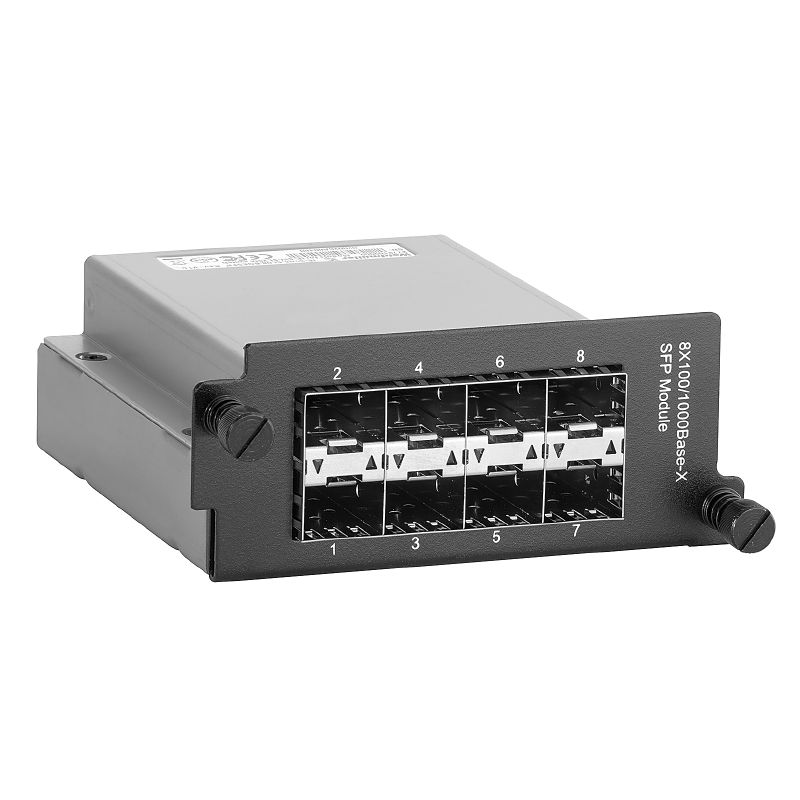

Media interface module for modular switch, Fast/Gigabit Ethernet, Number of ports: 8x 100/1000BaseSFP Slot, -40 °C...85 °C

Tuotteen tunnus 2779150000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 12 On lisävaruste 4 Samankaltaiset tuotteet 20
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Environmental conditions Guarantee Interfaces MTBF Power supply Technical data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Media interface module for modular switch, Fast/Gigabit Ethernet, Number of ports: 8x 100/1000BaseSFP Slot, -40 °C...85 °C
Order No.
2779150000
Type
IE-SWM-SL08-8GESFP
GTIN (EAN)
4064675048510
Qty.
1  items

Dimensions and weights

Depth
107  mm
Depth (inches)
4,213  inch
Height
40,7  mm
Height (inches)
1,602  inch
Width
99  mm
Width (inches)
3,898  inch
Net weight
348  g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...85 °C
Humidity
5 to 95 % (non-condensing)

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7cI
REACH SVHC
Lead monoxide 1317-36-8

Environmental conditions

Humidity
5 to 95 % (non-condensing)
Operating altitude
  • Altitude, max.:
    2 000 m
  • Note:
    in acc. with UL
  • Altitude, max.:
    6 000 m
  • Note:
    for restrictions, see the manufacturer's declaration for operating altitude in section downloads
Operating temperature, max.
85  °C
Operating temperature, min.
−40  °C
Storage temperature, max.
85  °C
Storage temperature, min.
−40  °C

Guarantee

Time interval
5 years

Interfaces

Fibre-optic ports
100/1000Base SFP Slot
Number of ports
8x 100/1000BaseSFP Slot

MTBF

MTBF
  • According to Standard:
    Telcordia SR-332
  • Operating time (hours), min.:
    3 712 062 h

Power supply

Voltage supply
via Ethernet switch

Technical data

Housing main material
Metal
Speed
Fast/Gigabit Ethernet
Type of mounting
Insert in module slot M1,M2,M3

Classifications

ETIM 6.0
EC000309
ETIM 7.0
EC000309
ETIM 8.0
EC000309
ETIM 9.0
EC000309
ETIM 10.0
EC000309
ECLASS 9.1
19-17-03-90
ECLASS 10.0
19-17-04-90
ECLASS 11.0
19-17-03-03
ECLASS 12.0
19-17-03-03
ECLASS 13.0
19-17-03-03
ECLASS 14.0
19-17-03-03
ECLASS 15.0
19-17-03-03
