SLD 5.00/42/180G 3.2SN OR BX

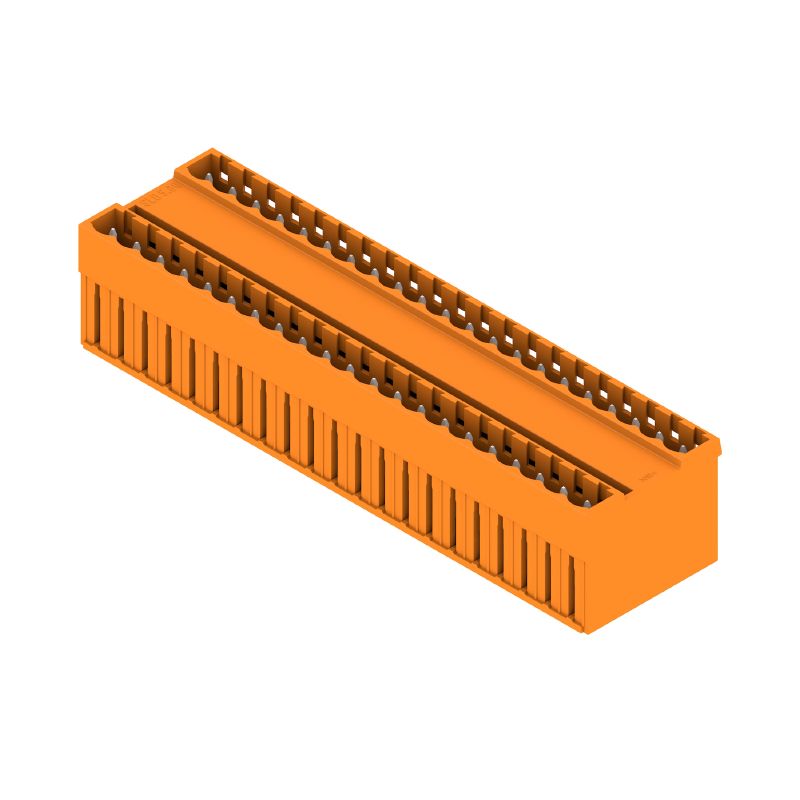

Illustrazione del prodotto
SLD 5.00/42/180G 3.2SN OR BX

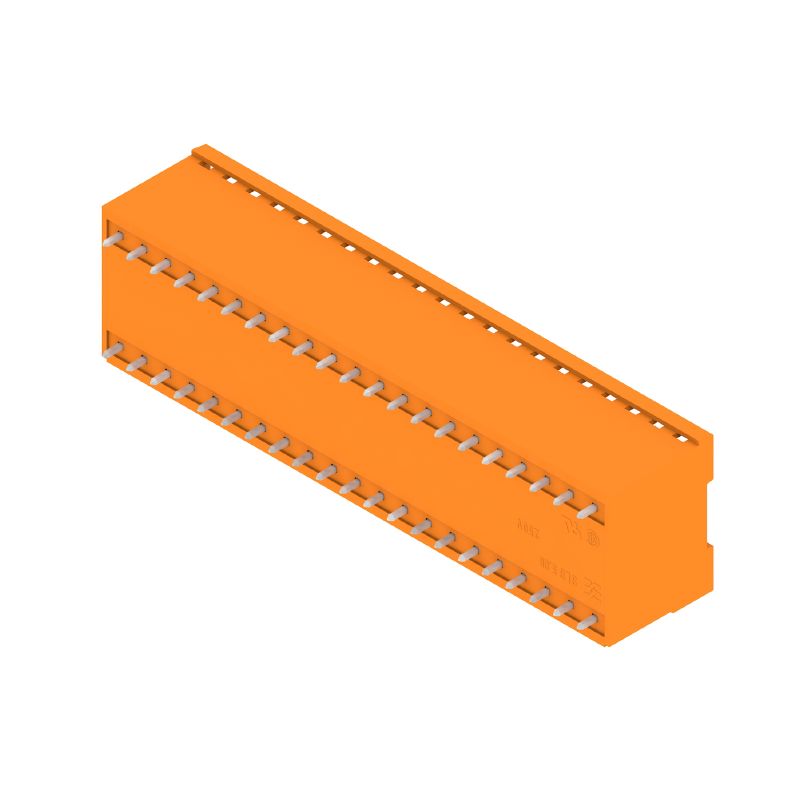

Illustrazione del prodotto
SLD 5.00/42/180G 3.2SN OR BX
Dimensional drawing

SLD 5.00/42/180G 3.2SN OR BX

This product is discontinued.

PCB plug-in connector, male header, closed side, THT solder connection, 5.00 mm, Number of poles: 42, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Box

Item No. 1615000000
Download data sheet Engineering Support Product Downloads
Accessories 4 Related products 12
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data IEC 정격데이터 Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N° certificato (UR)
E60693

General ordering data

Versione
PCB plug-in connector, male header, closed side, THT solder connection, 5.00 mm, Number of poles: 42, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Box
N. d’ordine
1615000000
Tipo
SLD 5.00/42/180G 3.2SN OR BX
GTIN (EAN)
4008190041205
CPZ
10 items
Product data
IEC: 400 V / 11 A
UL: 300 V / 10 A
Packaging
Box
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1793401200000)/

Dimensions and weights

Profondità
28,5 mm
Profondità (pollici)
1,122 inch
Posizione verticale
25,2 mm
Height (inches)
0,992 inch
Height of lowest version
22 mm
Larghezza
106,96 mm
Width (inches)
4,211 inch
Peso netto
38 g

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Termékcsalád
OMNIMATE Signal - series BL/SL 5.00
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Delning i mm (P)
5 mm
Passo in pollici (P)
0,197 "
Angolo di uscita
180°
Number of poles
42
Numero di codoli a saldare per polo
1
Longitud del terminal de soldadura (l)
3,2 mm
Tolleranza della lunghezza del codolo a saldare
+0.1 / -0.2 mm
Dimensioni del codolo a saldare
d = 1.2 mm
Octagonal
Dimensioni del codolo a saldare = tolleranza d
0 / -0,03 mm
Diametro foro di equipaggiamento (D)
1,3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
100 mm
L1 in inches
3,937 "
Number of rows
2
Pin series quantity
2
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging force/pole, max.
3 N
Pulling force/pole, max.
3 N

Material data

Materiale isolante
PBT
Colori
orange
Tabella dei colori (simile)
RAL 2000
Gruppo materiali isolanti
IIIa
Comparative Tracking Index (CTI)
≥ 200
UL 94 flammability rating
V-0
Materiale dei contatti
Cu-alloy
Superficie dei contatti
tinned
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
Struttura a strati del connettore maschio
1...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

IEC 정격데이터

표준에 따라 시험완료
IEC 60664-1
IEC 61984
Corrente di dimensionamento, numero minimo di poli (Tu=20 °C)
11 A
Corrente di dimensionamento, numero massimo di poli (Tu=20 °C)
8,5 A
Corrente di dimensionamento, numero minimo di poli (Tu=40 °C)
9,5 A
Corrente di dimensionamento, numero massimo di poli (Tu = 40°C)
7 A
Rated voltage for surge voltage class / pollution degree II/2
400 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Tensione nominale con classe di sovratensione/grado di lordura III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Tensione di dimensionamento con classe di sovratensione/grado di lordura III/2
4 kV
Sovratensione nominale con classe di sovratensione/grado di lordura III/3
4 kV
Portata transitoria
1 x 1s with 120 A

Rated data acc. to CSA

Istituto (CSA)
CSA
N° certificato (CSA)
200039-1121690
Tensione nominale (Gruppo B / CSA)
300 V
Tensione nominale (Gruppo D / CSA)
300 V
Corrente nominale (Gruppo B / CSA)
10 A
Corrente nominale (Gruppo D / CSA)
10 A
Riferimento ai valori di omologazione
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institut (UR)
UR
N° certificato (UR)
E60693
Tensión nominal (Use Group B / UL 1059)
300 V
Märkspänning (användargrupp D / UL 1059)
300 V
Номинальный ток (группа использования B/UL 1059)
10 A
Corrente nominale (Gruppo D / UL 1059)
10 A
Riferimento ai valori di omologazione
Specifications are maximum values, details - see approval certificate.

Packing

Imballaggio
Box
Lunghezza VPE
235 mm
Larghezza VPE
140 mm
Altezza VPE
35 mm

Important note

Conformità IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Note
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Spacing between rows: see hole layout
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
