VPU PV I+II 0 600 E

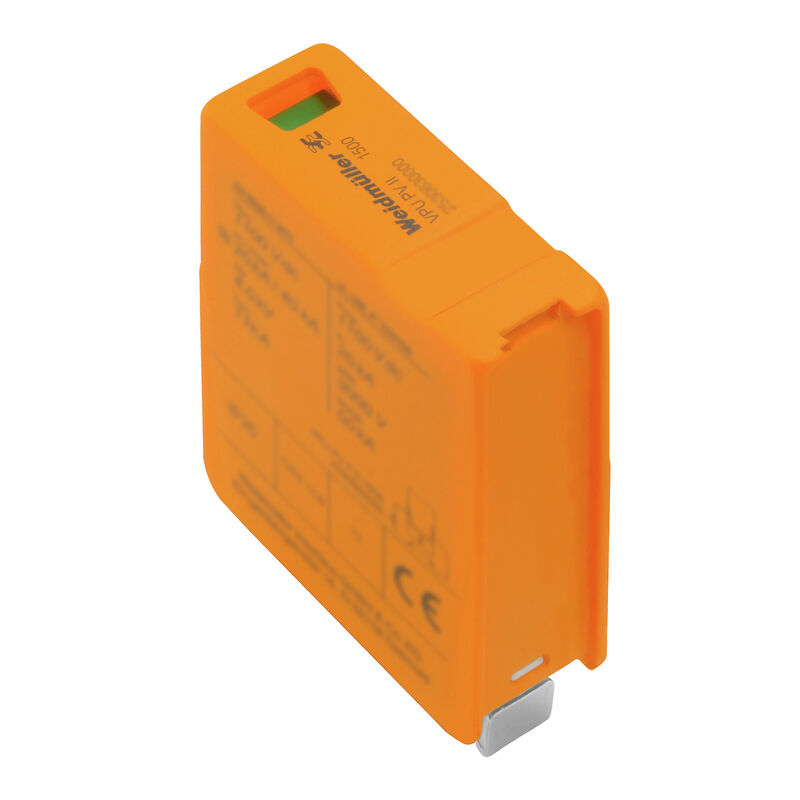

Product image
VPU PV I+II 0 600 E
Electric symbol
Schematic circuit diagram

VPU PV I+II 0 600 E

Tuotteen tunnus 2857050000
Lataa tietosivu Tuotelataukset
Lisävarusteet 3 Samankaltaiset tuotteet 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Общие данные Insulation coordination acc. to EN 50178 태양광 기술 데이터 Datos nominales IEC / EN Connection data Electrical data General data Guarantee Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Order No.
2857050000
Type
VPU PV I+II 0 600 E
GTIN (EAN)
4064675537410
Qty.
9 items

Dimensions and weights

Depth
57,2 mm
Depth (inches)
2,252 inch
Height
45 mm
Height (inches)
1,772 inch
Width
18 mm
Width (inches)
0,709 inch
Net weight
8,111 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...85 °C
Humidity
5 - 95% rel. humidity

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Category
SPD TYPE 1CA

Общие данные

Colour
оранжевый
Design
Insta IP 20
Operating altitude
≤ 4000 m
Optical function display
green = OK; red = arrester is defective - replace
Protection degree
IP20
UL 94 flammability rating
V-0
Version
Spare arrester

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

태양광 기술 데이터

Celkový vybíjecí proud Icelkový (10/350 µs)
6,25 kA
Discharge current In (8/20 µs)
20 kA
Lightning test current Iimp (10/350 µs)
6.25 kA
Operating height in the grounded PV system
≤ 2000 m
Operating height in ungrounded PV system
<4,000 m, see operating instructions
Protection level Up (+/- , -/PE , +/PE)
<2800 V
PV system voltage, max. Ucpv
600 V
Requirements class
Type I/II
Short-circuit curent ISCPV
11 000 A
Standards
EN 61643-31
EN 50539-11
Total discharge current Itotal ( 8/20µs)
50 kA

Datos nominales IEC / EN

Absicherung
Non
Ansprechzeit / Rückfallzeit
≤ 25 ns
Blitzprüfstrom Iimp (10/350 µs)
6.25 kA
Energy coordination (≤10 m)
Type I
Type II
Type III
Integrated back-up fuse
No
Meldekontakt
No
Nennspannung (DC)
600 V
Normen
EN 61643-31
EN 50539-11
Polzahl
1
Spannungsart
DC
SPD type
T1
T2

Connection data

Type of connection
pluggable
Stripping length, rated connection
18 mm
Wire cross-section, solid, min.
1,5 mm²
Wire cross-section, solid, max.
16 mm²
Wire connection cross section, finely stranded, min.
1,5 mm²
Wire connection cross section, finely stranded, max.
35 mm²
Connection cross-section, stranded, min.
1,5 mm²
Connection cross-section, stranded, max.
35 mm²

Electrical data

Voltage type
DC

General data

Number of poles
1
Protection degree
IP20
Colour
orange

Guarantee

Time interval
5 years

Classifications

ETIM 8.0
EC001457
ETIM 9.0
EC001457
ETIM 10.0
EC001457
ECLASS 14.0
27-17-14-03
ECLASS 15.0
27-17-14-03
