VRSTI/1,5-2,5
VRSTI/1,5-2,5

VRSTI/1,5-2,5

Dette produkt er snart ikke længere tilgængeligt.

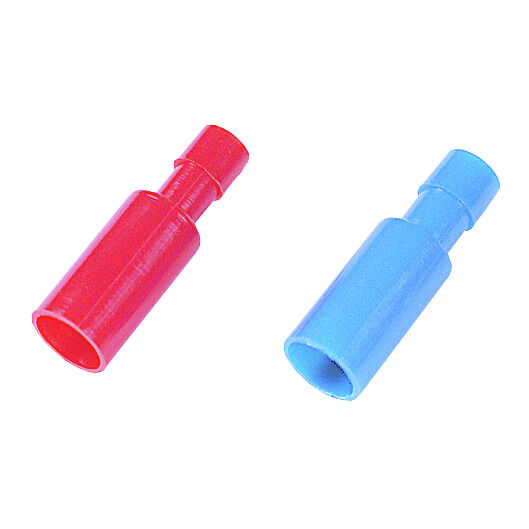

cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²,blue

Produkt ID 1492080000
Download datablad Produktdownloads
Anvendte produkter 2
Approvals General ordering data Dimensions and weights Environmental Product Compliance Connectors Classifications

Approvals

ROHS
Conform

General ordering data

Version
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²,blue
Order No.
1492080000
Type
VRSTI/1,5-2,5
GTIN (EAN)
4050118301991
Qty.
100 Styk
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1774908000000)/

Dimensions and weights

Net weight
1,43 g

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
7b42d2b9-0a0f-4f66-a989-e9bfbbfeb1b3

Connectors

Identification colour
blue
Insulation
Fully insulated

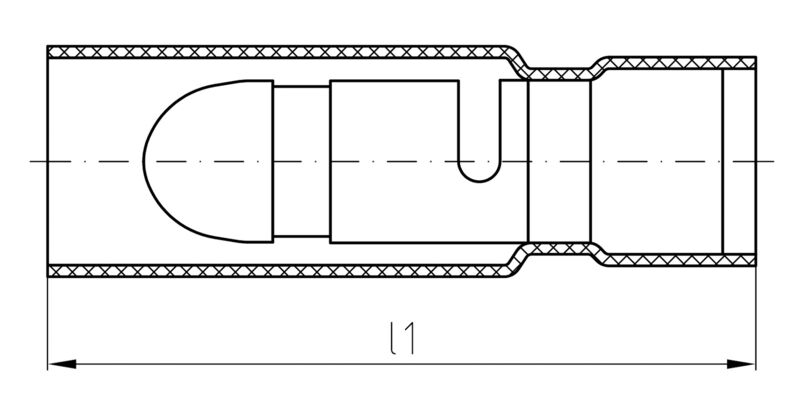

Length 1 (I1)
27 mm
Material/Kunststoff
PVC
Průřez vodiče
2,5 mm²
Průřez vodiče, max.
2,5 mm²
Průřez vodiče, min.
1,5 mm²
Ø polo/conector macho
4 mm

Classifications

ETIM 8.0
EC001059
ETIM 9.0
EC001059
ETIM 10.0
EC001059
ECLASS 14.0
27-40-02-12
ECLASS 15.0
27-40-02-12
