Ominaisuudet

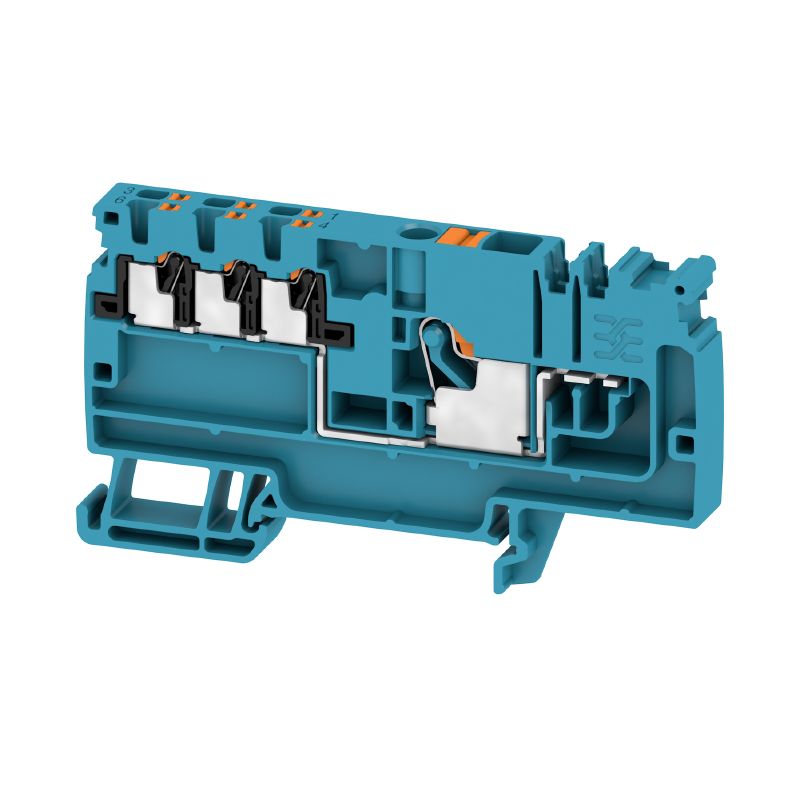

| Version | Modular distribution terminals, PUSH IN, 6 mm², 500 V, 41 A, blue |
| Order No. | 2522830000 |
| Type | AAP11 6/6X1.5 LO-LI BL/OR |
| GTIN (EAN) | 4050118757194 |
| Qty. | 20 items |
| Depth | 47 mm |
| Depth (inches) | 1,85 inch |
| Depth including DIN rail | 48 mm |
| Height | 85,5 mm |
| Height (inches) | 3,366 inch |
| Width | 8,1 mm |
| Width (inches) | 0,319 inch |
| Net weight | 19,869 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | −60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | blue |
| Colour of operational elements | orange |
| UL 94 flammability rating | V-0 |
| Marking EN 60079-7 | Ex ec II C Gc |
| Ex 2014/34/EU label | II 2 G D |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 7 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | Yes |
| PE function | No |
| PEN function | No |
| Explosion-tested version | Yes |
| Installation advice | Rail |
| Open sides | right |
| Type of fixing | Snap-on |
| Type of mounting | TS 35 |
| Blade size, additional connection | 0.4 x 2.0 mm |
| Clamping range, further connection, max. | 1,5 mm² |
| Clamping range, further connection, min. | 0,14 mm² |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 1,5 mm² |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, min. | 0,5 mm² |
| Conductor cross-section, flexible, further connection, min. | 0,5 mm² |
| Connection direction | top |
| Connection type, additional connection | PUSH IN |
| Cross-section for connected wire, flexible, further connection, max. | 1,5 mm² |
| Cross-section for connected wire, multi-core, further connection, max. | 1,5 mm² |
| Cross-section for connected wire, multi-core, further connection, min. | 0,5 mm² |
| Cross-section for connected wire, solid-core, further connection, max. | 1,5 mm² |
| Cross-section for connected wire, solid-core, further connection, min. | 0,5 mm² |
| Number of connections, additional connection | 6 |
| Rated cross-section, further connection | 1,5 mm² |
| Rated current, additional connection | 17,5 A |
| Stripping length , additional connection | 8 mm |
| Blade size | 1.0 x 5.5 mm |
| Clamping range, max. | 6 mm² |
| Clamping range, min. | 0,34 mm² |
| Connection cross-section, stranded, max. | 6 mm² |
| Connection cross-section, stranded, min. | 0,5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A5 |
| Number of connections | 1 |
| Stripping length | 12 mm |
| Tube length for twin wire-end ferrule |
|
| Tube length for wire-end ferrule with plastic collar DIN 46228/4 |
|
| Tube length for wire-end ferrule without plastic collar DIN 46228/1 |
|
| Twin wire-end ferrules, max. | 1,5 mm² |
| Twin wire-end ferrules, min. | 0,5 mm² |
| Type of connection | PUSH IN |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 6 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Certificate No. (CSA) | 200039-70089609 |
| Current size B (CSA) | 38 A |
| Current size C (CSA) | 38 A |
| Current size D (CSA) | 10 A |
| Voltage size B (CSA) | 300 V |
| Voltage size C (CSA) | 300 V |
| Voltage size D (CSA) | 300 V |
| Wire cross section max. (CSA) | 8 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| Installation advice | Rail |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Rated cross-section | 6 mm² |
| Rated voltage | 500 V |
| Rated DC voltage | 500 V |
| Rated current | 41 A |
| Current at maximum wires | 41 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0,78 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 1,31 W |
| Pollution severity | 3 |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 8 AWG |
| Conductor size Factory wiring min. (cURus) | 26 AWG |
| Conductor size Field wiring max. (cURus) | 8 AWG |
| Conductor size Field wiring min. (cURus) | 26 AWG |
| Current size B (cURus) | 38 A |
| Current size C (cURus) | 38 A |
| Current size D (cURus) | 10 A |
| Voltage size B (cURus) | 300 V |
| Voltage size C (cURus) | 300 V |
| Voltage size D (cURus) | 300 V |
| Product information | The applicable safety regulations for the overload and short-circuit of the connected conductors must be followed. The total current of all connected conductors must not exceed the max. load current. |
| Approval/Certificate/Document of Conformity |
[DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152120)
[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_103334) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284539) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66297) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2522830000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2522830000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2522830000&norm=0) |
| User Documentation |
[AAP Terminal Blocks for control voltage distribution](https://mdcop.weidmueller.com/mediadelivery/asset/900_102992)
[User Manual AXC 1.5-16](https://mdcop.weidmueller.com/mediadelivery/asset/900_229201) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| ECLASS 14.0 | 27-25-01-01 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
