Ominaisuudet

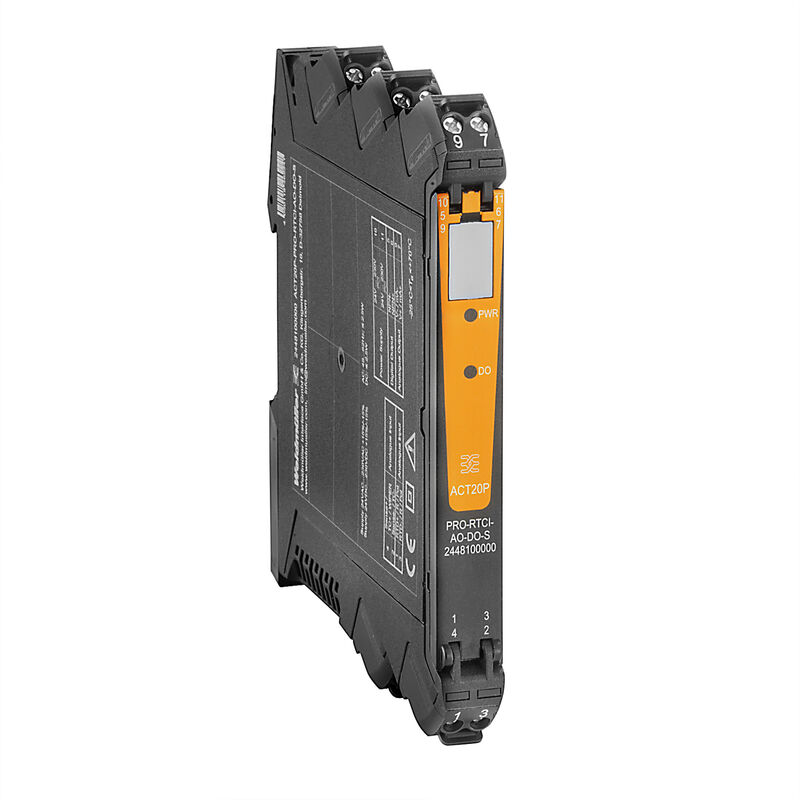

| Version | Isolating amplifier, Input : 2 x 0(4) - 20 mA, Output : 2 x 4-20 mA, Signal converter/isolator, HART® |
| Order No. | 7760054117 |
| Type | ACT20P-2CI-2CO-12-S |
| GTIN (EAN) | 6944169656576 |
| Qty. | 1 items |

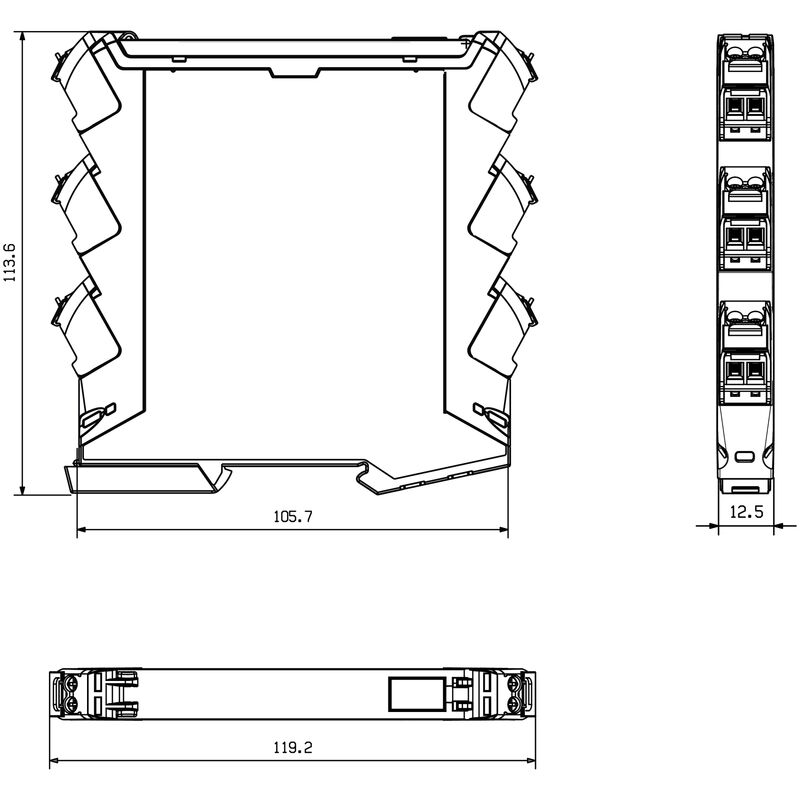

| Depth | 113,7 mm |
| Depth (inches) | 4,476 inch |
| Height | 117,2 mm |
| Height (inches) | 4,614 inch |
| Width | 12,5 mm |
| Width (inches) | 0,492 inch |
| Net weight | 170 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -20 °C...60 °C |
| Humidity at operating temperature | 0...95 % (no condensation) |
| Humidity | 5...95 %, no condensation |
| SIL in compliance with IEC 61508 | None |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2f6dd957-421a-46db-a0c2-cf1609156924 |
| Input current |
0...20 mA
4…20mA |
| Input signal | HART signal® bidirectional |
| Input voltage | ≤ 28 V DC |
| Number of inputs | 2 |
| Sensor | 4- wire sensor (with own power supply) |
| Voltage drop | ≤ 1 V |
| Load impedance current |
<300 Ω
per channel |
| Number of outputs | 2 |
| Output current |
0…20 mA (if input: 0…20 mA)
4…20 mA (if input: 4…20 mA) HART® digital signal |
| Type |
active
connected control must be passive |
| Max. switching voltage, AC | 0 V |
| Max. switching voltage, DC | 0 V |
| Rated switching current | 0.1 A |
| Accuracy | <0.1 % of end value |
| Configuration | none |
| Current consumption | ≤100 mA (24V power supply, 20mA output) |

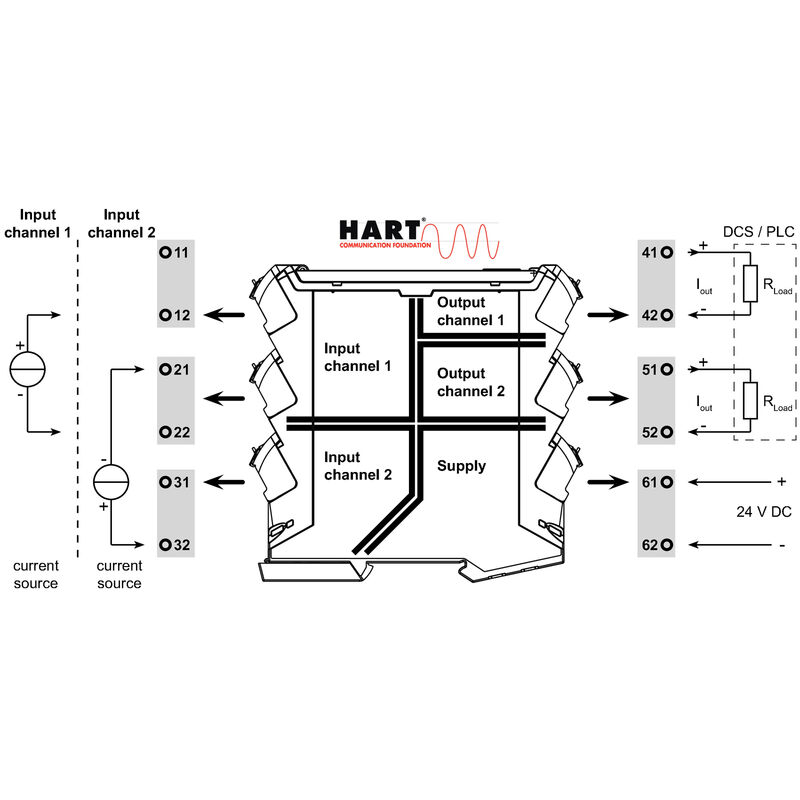

| Galvanic isolation |
3-way isolator
between input ⁄ output ⁄ supply |
| Protection degree | IP20 |
| Rail | TS 35 |
| Step response time | ≤ 0,5 ms |
| Temperature coefficient | 80 ppm/K |
| Type of signal forwarding according to HART® | unchanged |
| Voltage supply | 20…30 V DC |
| EMC standards |
EN 61010-1:2011
UL 61010-1 EN 61326-1 |
| Galvanic isolation |
3-way isolator
between input ⁄ output ⁄ supply |
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Insulation voltage | 2 kV inputs / outputs / power supply |
| Pollution severity | 2 |
| Surge voltage category | III |
| Test voltage | 0,3 kV |
| Marking | II 3 G Ex ec IIC T5 Gc |
| Type of connection | Screw connection |
| Tightening torque, min. | 0,4 Nm |
| Tightening torque, max. | 0,6 Nm |
| Clamping range, rated connection | 2,5 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 12 |
| Approval/Certificate/Document of Conformity |
[IECEx Certification](https://mdcop.weidmueller.com/mediadelivery/asset/900_97255)
[ATEX Certification](https://mdcop.weidmueller.com/mediadelivery/asset/900_97260) [UL Certification (hazardous location)](https://mdcop.weidmueller.com/mediadelivery/asset/900_178185) [UL Certification (US-CAN)](https://mdcop.weidmueller.com/mediadelivery/asset/900_178186) [UL certification (hazardous locations) for canada](https://mdcop.weidmueller.com/mediadelivery/asset/900_321818) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_158017) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66428) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.7760054117) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=7760054117) |
| User Documentation | [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_37895) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002653 |
| ETIM 7.0 | EC002653 |
| ETIM 8.0 | EC002653 |
| ETIM 9.0 | EC002653 |
| ECLASS 9.0 | 27-21-01-20 |
| ECLASS 9.1 | 27-21-01-20 |
| ECLASS 10.0 | 27-21-01-20 |
| ECLASS 11.0 | 27-21-01-20 |
| ECLASS 12.0 | 27-21-01-20 |
| ECLASS 13.0 | 27-21-01-20 |
| ECLASS 14.0 | 27-21-01-20 |
| Approvals |       |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E469563 |
| Certificate no. (cULusEX) | E338066 |
