Properties

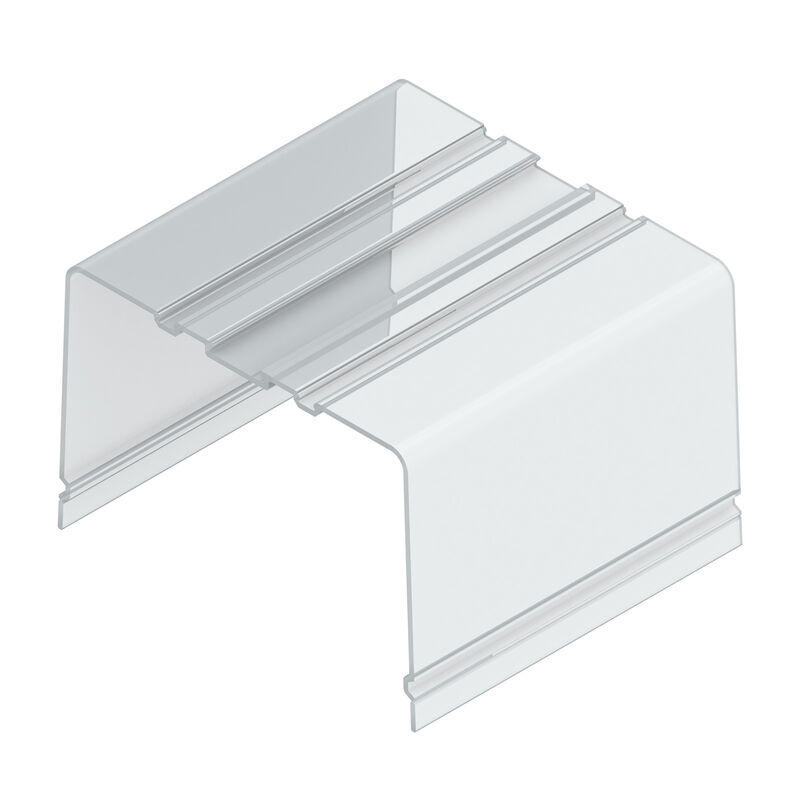

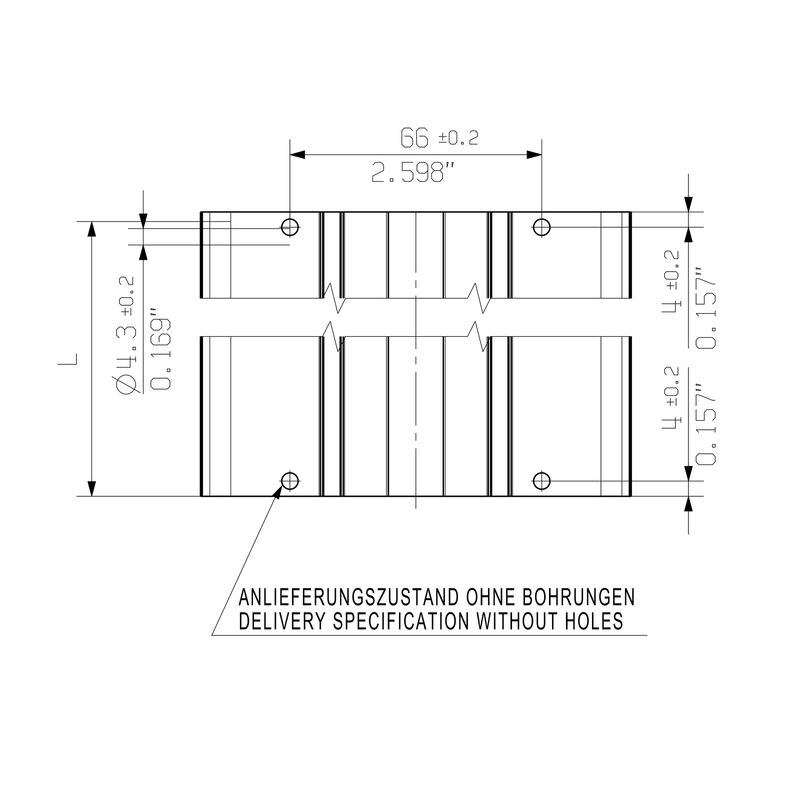

| Version | Hood, RS 100 Transparent, Cover profile high height, Width: 108 mm |
| Order No. | 4169330000 |
| Type | ADP 11 |
| GTIN (EAN) | 4008190229030 |
| Qty. | 2 |
| Height | 74.5 mm |
| Height (inches) | 2.933 inch |
| Width | 108 mm |
| Width (inches) | 4.252 inch |
| Length | 2,000 mm |
| Length (inches) | 78.74 inch |
| Net weight | 557.5 g |
| Insulating material | PVC |
| UL 94 flammability rating | V-0 |
| Colour | Transparent |
| Colour chart (similar) | - |
| Encapsulation option | No |
| Protection degree | IP20 in installed state |
| Rail | TS 32 |
| Product information |
3 heights are available for the cover profile and the end plates: TS mounting without cover: TS 32 = 45 mm, TS35x7.5 = 40.5 mm TS mounting with low cover: TS 32 = 89 mm, TS 35x7.5 = 84.5 mm TS mounting with high cover: TS 32 = 121 mm, TS 35x7.5 = 116.5 mm Direct mounting, without/low/high cover: 24 / 69 / 99 mm Dimensions of the PCB Thickness: 1.6 (±0.2) mm, width: 100 (+0.5) mm Dimension of the RS section = length of the printed circuit board – 4.5 mm Dimension of ADP section = PCB length - 1 mm Example: PCB length 160 mm, RS = 155.5 mm, ADP = 159 mm" |
