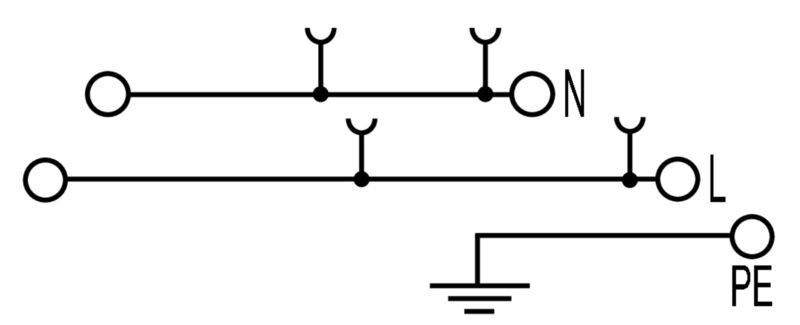

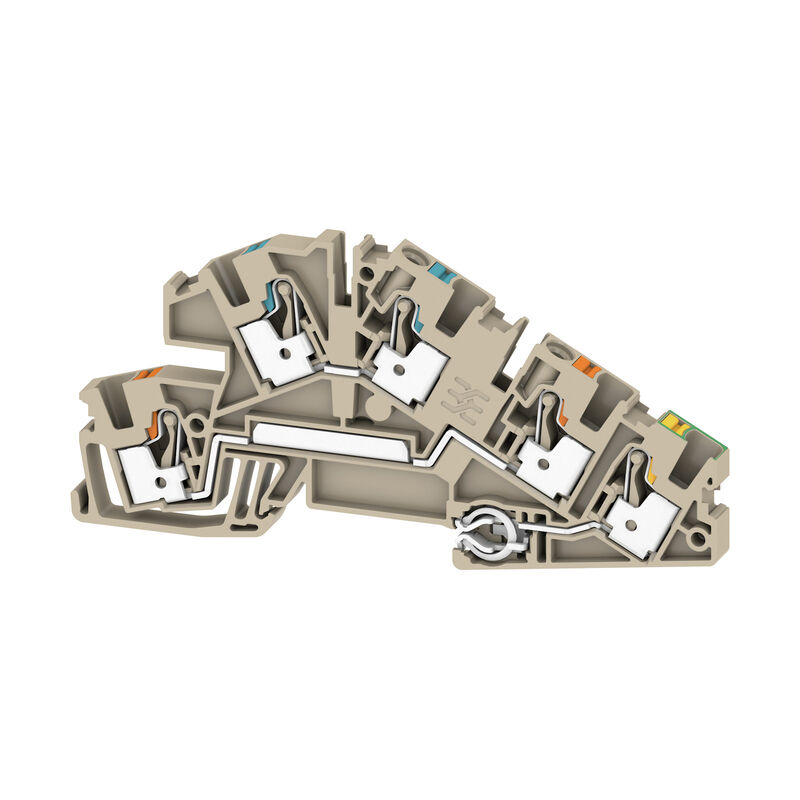

AITB 4 BB N-L-PE

Multi level installation terminal block, PUSH IN, dark beige, 4 mm², 30 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Tuotteen tunnus 2669090000

Ominaisuudet

General ordering data

Version	Multi level installation terminal block, PUSH IN, dark beige, 4 mm², 30 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid
Order No.	2669090000
Type	AITB 4 BB N-L-PE
GTIN (EAN)	4064675266327
Qty.	25 items

Dimensions and weights

Depth	53,2 mm
Depth (inches)	2,094 inch
Height	110,2 mm
Height (inches)	4,339 inch
Width	6,1 mm
Width (inches)	0,24 inch
Net weight	24,859 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	−60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	dark beige
Colour of operational elements	orange
UL 94 flammability rating	V-0

System specifications

End cover plate required	Yes
Number of potentials	3
Number of levels	3
Number of clamping points per level	2
Rail	TS 35
N-function	No
PE function	Yes
PEN function	No

Additional technical data

Open sides	right
Snap-on	Yes
Type of mounting	Snap-on

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	6 mm²
Clamping range, min.	0,14 mm²
Connection cross-section, stranded, max.	6 mm²
Connection cross-section, stranded, min.	0,5 mm²
Connection direction	top
Gauge to IEC 60947-1	A4
Number of connections	5
Stripping length	12 mm
Tube length for twin wire-end ferrule	Tube length: min.: 8 mm max.: 12 mm Cross-section for conductor connection: min.: 0,5 mm² max.: 1,5 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Tube length: min.: 6 mm max.: 12 mm Cross-section for conductor connection: min.: 0,5 mm² max.: 1 mm² Tube length: min.: 8 mm max.: 12 mm Cross-section for conductor connection: min.: 1,5 mm² max.: 2,5 mm² Tube length: min.: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 4 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Tube length: min.: 6 mm max.: 10 mm Cross-section for conductor connection: min.: 0,5 mm² max.: 1 mm² Tube length: min.: 7 mm max.: 12 mm Cross-section for conductor connection: min.: 1,5 mm² max.: 2,5 mm² Tube length: min.: 9 mm max.: 15 mm Cross-section for conductor connection: nominal: 4 mm²
Twin wire-end ferrules, max.	1,5 mm²
Twin wire-end ferrules, min.	0,5 mm²
Type of connection	PUSH IN
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section, finely stranded, max.	6 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,5 mm²
Wire connection cross-section, solid core, max.	6 mm²
Wire connection cross-section, solid core, min.	0,5 mm²

General

Rail	TS 35
Standards	IEC 60947-7-1 (-7-2)
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 26

Rating data

Rated cross-section	4 mm²
Rated voltage	250 V
Rated DC voltage	250 V
Rated current	30 A
Current at maximum wires	36 A
Standards	IEC 60947-7-1 (-7-2)
Rated impulse withstand voltage	4 kV
Power loss in accordance with IEC 60947-7-x	1,02 W
Rated voltage (L / L)	400 V
Rated voltage (L / N)	250 V
Rated voltage (L / PE)	250 V
Pollution severity	3
Surge voltage category	III

UL rating data

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	10 AWG
Conductor size Factory wiring min. (cURus)	26 AWG
Conductor size Field wiring max. (cURus)	10 AWG
Conductor size Field wiring min. (cURus)	26 AWG

Downloads

Approval/Certificate/Document of Conformity	[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_199388)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_257177)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2669090000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2669090000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2669090000&norm=0)
Tender specification	[Ausschreibungstext AITB 4 BB N-L-PE](https://mdcop.weidmueller.com/mediadelivery/asset/900_246183)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001329
ETIM 7.0	EC001329
ETIM 8.0	EC001329
ETIM 9.0	EC001329
ECLASS 9.0	27-14-11-25
ECLASS 9.1	27-14-11-25
ECLASS 10.0	27-14-11-25
ECLASS 11.0	27-14-11-25
ECLASS 12.0	27-14-11-25
ECLASS 13.0	27-25-01-10
ECLASS 14.0	27-25-01-10

Approvals

Approvals	![CE](/picture/CE.gif) ![CURUS](/picture/CURUS.gif) ![VDE](/picture/VDE.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
