Ominaisuudet

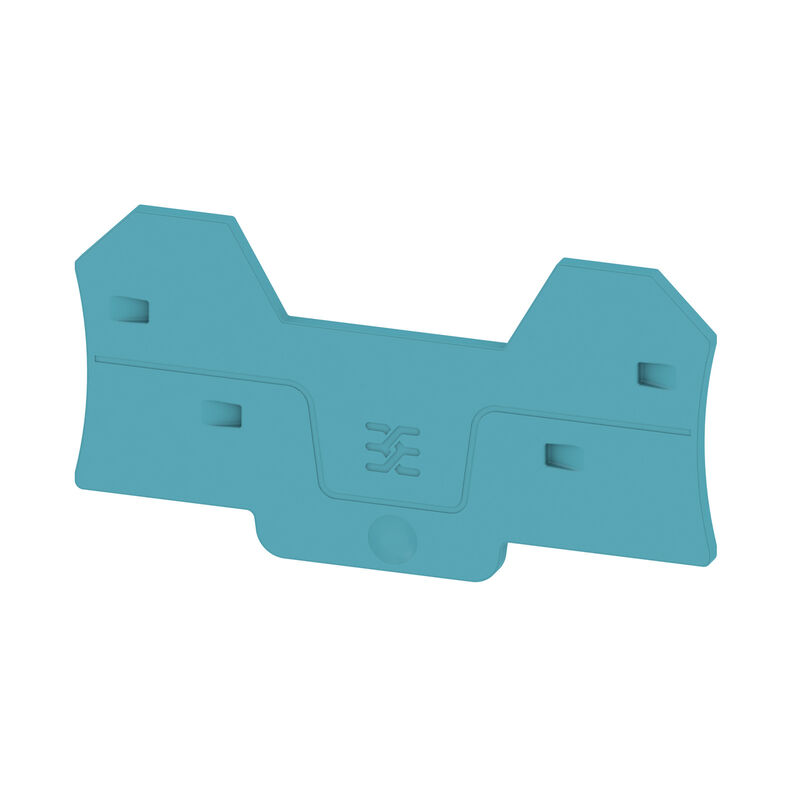

| Version | End plate (terminals), blue, Height: 77.6 mm, Width: 2.1 mm, V-0, Wemid |
| Order No. | 2871800000 |
| Type | ALEP 4C 2.5 BL |
| GTIN (EAN) | 4064675639923 |
| Qty. | 20 items |
| Depth | 40,5 mm |
| Depth (inches) | 1,594 inch |
| Height | 77,6 mm |
| Height (inches) | 3,055 inch |
| Width | 2,1 mm |
| Width (inches) | 0,083 inch |
| Net weight | 1,81 g |
| Continuous operating temp., min. | −60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Snap-on | Yes |
| Approval/Certificate/Document of Conformity |
[CB Certificate and Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_303977)
[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_253741) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2871800000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2871800000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2871800000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
