AM 35
AM 35
Example of use
AM 35
Example of use
AM 35

AM 35

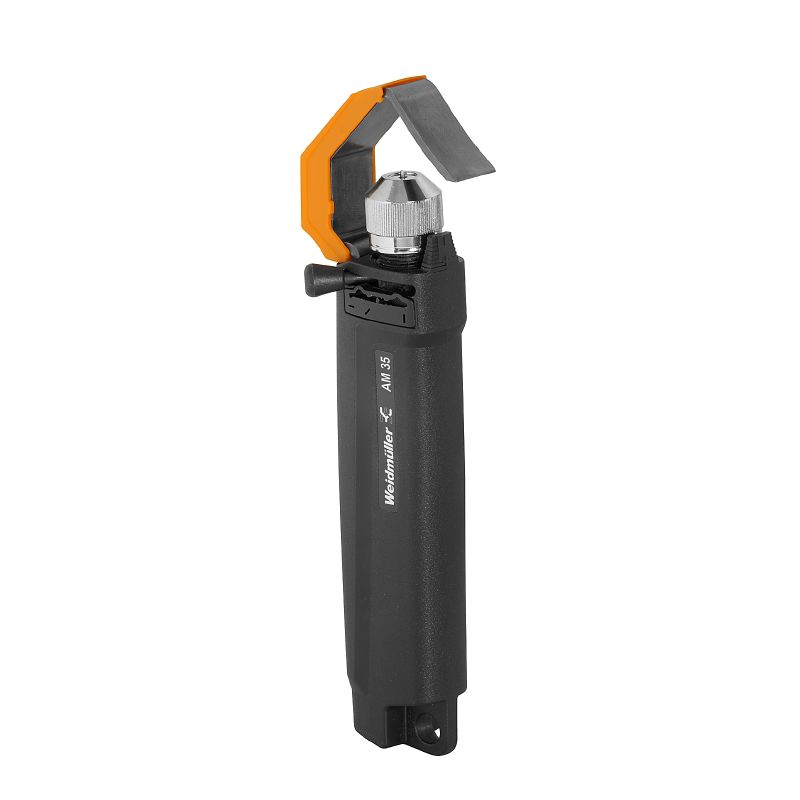

Tools, Sheathing strippers

Tuotteen tunnus 9001080000
Lataa tietosivu Product Downloads
Lisävarusteet 1 On lisävaruste 1 Yksittäinen osa tuotteelle 1 Samankaltaiset tuotteet 5
General ordering data Dimensions and weights Environmental Product Compliance Dati tecnici Herramientas para desaislar Classifications

General ordering data

Version
Tools, Sheathing strippers
Order No.
9001080000
Type
AM 35
GTIN (EAN)
4008190208011
Qty.
1 items

Dimensions and weights

Depth
33 mm
Depth (inches)
1,299 inch
Height
174 mm
Height (inches)
6,85 inch
Width
53 mm
Width (inches)
2,087 inch
Net weight
127,73 g

Environmental Product Compliance

RoHS Compliance Status
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0

Dati tecnici

Description of article
Utensile sguainacavi per diametri esterni fino a 35 mm

Herramientas para desaislar

Cable type
Câble rond PVC
Conductor cross-section, min.
490 mm²
Hloubka řezu
adjustable up to 4.5 mm
Leiteranschlussquerschnitt, max.
962 mm²
Max. conductor diameter
35 mm
Min. průměr vodiče
25 mm

Classifications

ETIM 8.0
EC000163
ETIM 9.0
EC000163
ETIM 10.0
EC000163
ECLASS 14.0
21-04-90-90
ECLASS 15.0
21-04-90-90
