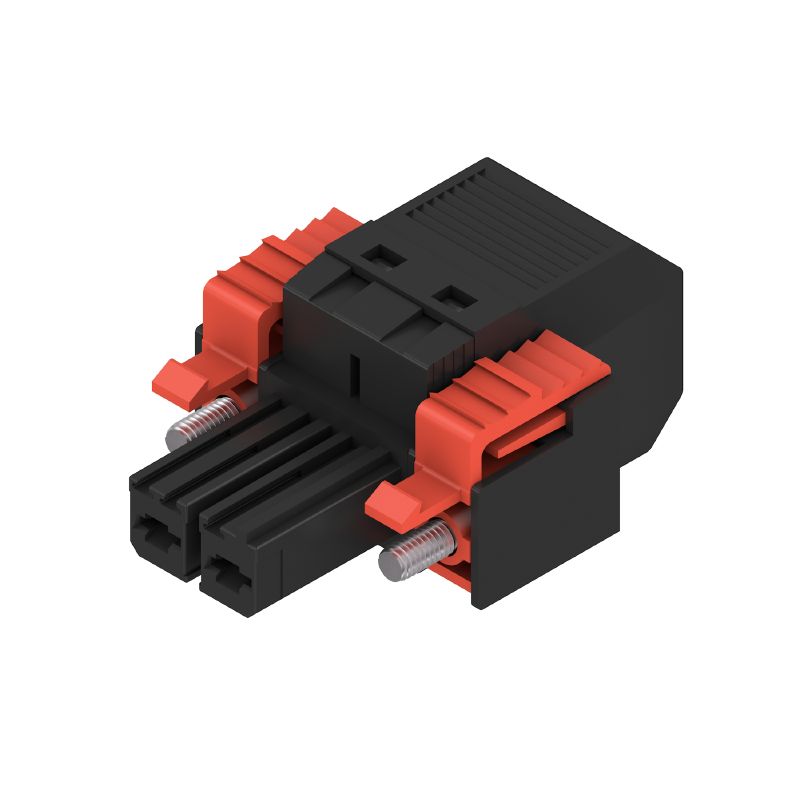

BVF 7.62HP/02/180SF SN BK BX

PCB plug-in connector, female plug, 7.62 mm, Number of poles: 2, 180°, PUSH IN without actuator, Tension-clamp connection, Clamping range, max. : 10 mm², Box

Tuotteen tunnus 1060500000

Ominaisuudet

General ordering data

Version	PCB plug-in connector, female plug, 7.62 mm, Number of poles: 2, 180°, PUSH IN without actuator, Tension-clamp connection, Clamping range, max. : 10 mm², Box
Order No.	1060500000
Type	BVF 7.62HP/02/180SF SN BK BX
GTIN (EAN)	4032248810031
Qty.	50 items
Product data	IEC: 1000 V / 57 A / 0.5 - 10 mm² UL: 600 V / 39 A / AWG 24 - AWG 8
Packaging	Box

Dimensions and weights

Depth	44,7 mm
Depth (inches)	1,76 inch
Height	20 mm
Height (inches)	0,787 inch
Net weight	16,66 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

System Parameters

Product family	OMNIMATE Power - series BV/SV 7.62HP
Type of connection	Field connection
Wire connection method	PUSH IN without actuator Tension-clamp connection
Pitch in mm (P)	7,62 mm
Pitch in inches (P)	0,3 "
Conductor outlet direction	180°
Number of poles	2
L1 in mm	7,62 mm
L1 in inches	0,3 "
Number of rows	1
Pin series quantity	1
Rated cross-section	6 mm²
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470	IP 20
Protection degree	IP20
Volume resistance	4.50 mΩ
Can be coded	Yes
Stripping length	12 mm
Tightening torque for screw flange, min.	0,2 Nm
Tightening torque for screw flange, max.	0,3 Nm
Screwdriver blade	0.6 x 3.5
Plugging cycles	25
Plugging force/pole, max.	17 N
Pulling force/pole, max.	15 N

Material data

Insulating material	PA GF
Colour	black
Colour chart (similar)	RAL 9011
Insulating material group	II
Comparative Tracking Index (CTI)	≥ 500
UL 94 flammability rating	V-0
Contact material	Cu-alloy
Contact surface	tinned
Tinning type	glossy
Layer structure of plug contact	6...8 µm Sn
Storage temperature, min.	−40 °C
Storage temperature, max.	70 °C
Operating temperature, min.	−50 °C
Operating temperature, max.	125 °C
Temperature range, installation, min.	−25 °C
Temperature range, installation, max.	125 °C

Conductors suitable for connection

Clamping range, min.	0,5 mm²
Clamping range, max.	10 mm²
Solid, min. H05(07) V-U	0,5 mm²
Solid, max. H05(07) V-U	10 mm²
Stranded, max. H07V-R	10 mm²
Flexible, min. H05(07) V-K	0,5 mm²
Flexible, max. H05(07) V-K	10 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	6 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	10 mm²
Clampable conductor	Cross-section for conductor connection: Type: fine-wired nominal: 0,5 mm² wire end ferrule: Stripping length: nominal: 14 mm Recommended wire-end ferrule: 0409500000 Cross-section for conductor connection: Type: fine-wired nominal: 0,75 mm² wire end ferrule: Stripping length: nominal: 14 mm Recommended wire-end ferrule: 9025910000 Cross-section for conductor connection: Type: fine-wired nominal: 1 mm² wire end ferrule: Stripping length: nominal: 15 mm Recommended wire-end ferrule: 9025930000 Cross-section for conductor connection: Type: fine-wired nominal: 1,5 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 9004060000 Stripping length: nominal: 15 mm Recommended wire-end ferrule: 9019140000 Cross-section for conductor connection: Type: fine-wired nominal: 2,5 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 0186100000 Stripping length: nominal: 14 mm Recommended wire-end ferrule: 9019170000 Cross-section for conductor connection: Type: fine-wired nominal: 4 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 0244100000 Stripping length: nominal: 14 mm Recommended wire-end ferrule: 9019200000 Cross-section for conductor connection: Type: fine-wired nominal: 6 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 0191900000 Stripping length: nominal: 14 mm Recommended wire-end ferrule: 0533500000 Cross-section for conductor connection: Type: fine-wired nominal: 10 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 0282900000
Reference text	The outside diameter of the plastic collar should not be larger than the pitch (P) Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard	IEC 60664-1 IEC 61984
Rated current, min. number of poles (Tu=20°C)	57 A
Rated current, max. number of poles (Tu=20°C)	51 A
Rated current, min. number of poles (Tu=40°C)	57 A
Rated current, max. number of poles (Tu=40°C)	45 A
Rated voltage for surge voltage class / pollution degree II/2	1 000 V
Rated voltage for surge voltage class / pollution degree III/2	1 000 V
Rated voltage for surge voltage class / pollution degree III/3	800 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2	8 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	8 kV
Short-time withstand current resistance	3 x 1s with 420 A
Clearance, min.	10,4 mm
Creepage distance, min.	12,7 mm

Rated data acc. to CSA

Institute (CSA)	CSA
Certificate No. (CSA)	200039-1121690
Rated voltage (Use group B / CSA)	600 V
Rated voltage (Use group C / CSA)	600 V
Rated voltage (Use group D / CSA)	600 V
Rated current (Use group B / CSA)	33 A
Rated current (Use group C / CSA)	33 A
Rated current (Use group D / CSA)	5 A
Wire cross-section, AWG, min.	AWG 24
Wire cross-section, AWG, max.	AWG 8
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)	CURUS
Certificate No. (cURus)	E60693
Rated voltage (Use group B / UL 1059)	600 V
Rated voltage (Use group C / UL 1059)	600 V
Rated voltage (Use group D / UL 1059)	600 V
Rated current (Use group B / UL 1059)	39 A
Rated current (Use group C / UL 1059)	39 A
Rated current (Use group D / UL 1059)	5 A
Wire cross-section, AWG, min.	AWG 24
Wire cross-section, AWG, max.	AWG 8
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Packing

Packaging	Box
VPE length	351 mm
VPE width	137 mm
VPE height	61 mm

Type tests

Test: Durability of markings	Standard: DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96 Test: mark of origin, type identification, pitch Evaluation: available Test: durability Evaluation: passed
Test: Misengagement (Non-interchangeability)	Standard: DIN EN 61984 section 6.3 and 6.9.1 / 09.02, DIN EN 60512-13-5 / 11.08 Test: 180° turned with coding elements Evaluation: passed Test: 180° turned without coding elements Evaluation: passed
Test: Clampable cross section	Standard: DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 04.08 Conductor type: Type of conductor and conductor cross-section: solid 0.5 mm² Type of conductor and conductor cross-section: stranded 0.5 mm² Type of conductor and conductor cross-section: solid 6 mm² Type of conductor and conductor cross-section: stranded 6 mm² Type of conductor and conductor cross-section: AWG 24/1 Type of conductor and conductor cross-section: AWG 24/19 Type of conductor and conductor cross-section: AWG 14/1 Type of conductor and conductor cross-section: AWG 14/19 Evaluation: passed
Test for damage to and accidental loosening of conductors	Standard: DIN EN 60999-1 section 9.4 / 12.00 Requirement: 0.3 kg Conductor type: Type of conductor and conductor cross-section: H05V-U0.5 Type of conductor and conductor cross-section: H05V-K0.5 Type of conductor and conductor cross-section: AWG 20/1 Type of conductor and conductor cross-section: AWG 20/19 Evaluation: passed Requirement: 1.4 kg Conductor type: Type of conductor and conductor cross-section: H07V-U6 Type of conductor and conductor cross-section: H07V-K6 Type of conductor and conductor cross-section: AWG 10/1 Type of conductor and conductor cross-section: AWG 10/19 Evaluation: passed
Pull-out test	Standard: DIN EN 60999-1 section 9.5 / 12.00 Requirement: ≥20 N Conductor type: Type of conductor and conductor cross-section: H05V-U0.5 Type of conductor and conductor cross-section: H05V-K0.5 Type of conductor and conductor cross-section: AWG 20/1 Type of conductor and conductor cross-section: AWG 20/19 Evaluation: passed Requirement: ≥80 N Conductor type: Type of conductor and conductor cross-section: H07V-U6 Type of conductor and conductor cross-section: H07V-K6 Type of conductor and conductor cross-section: AWG 10/1 Type of conductor and conductor cross-section: AWG 10/19 Evaluation: passed

Important note

IPC conformity

Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Notes

Additional variants on request

Wire end ferrule with plastic collar to DIN 46228/4

Wire end ferrule without plastic collar to DIN 46228/1

P on drawing = pitch

Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load

Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months

Downloads

Approval/Certificate/Document of Conformity	[Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_70056)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1060500000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1060500000)
Product Change Notification	[2018, March - BVF 7.62HP 2-pole version, fixed coding at pole 1](https://mdcop.weidmueller.com/mediadelivery/asset/900_56176) [20220201 Visual change OMNIMATE® Power PCB terminal blocks and connectors](https://mdcop.weidmueller.com/mediadelivery/asset/900_251007) [20220201 Visuelle Änderung OMNIMATE® Power Leiterplattenklemmen und -steckverbinder](https://mdcop.weidmueller.com/mediadelivery/asset/900_251008) [20220208 Visual change Temporarily different color for connectors and accessories](https://mdcop.weidmueller.com/mediadelivery/asset/900_251161) [20220208 Visuelle Änderung Vorübergehend anderer Farbton für Steckverbinder und Zubehör](https://mdcop.weidmueller.com/mediadelivery/asset/900_251162)
User Documentation	[Operating Instruction BVF](https://mdcop.weidmueller.com/mediadelivery/asset/900_58185) [QR-Code product handling video](https://mdcop.weidmueller.com/mediadelivery/asset/900_78400)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL DRIVES EN](http://download.weidmueller.com/asset/download/file/40061) [MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [FL DRIVES DE](http://download.weidmueller.com/asset/download/file/40062) [FL HEATING ELECTR EN](http://download.weidmueller.com/asset/download/file/38195) [FL APPL_INVERTER EN](http://download.weidmueller.com/asset/download/file/38256) [FL_BASE_STATION_EN](http://download.weidmueller.com/asset/download/file/38194) [FL ELEVATOR EN](http://download.weidmueller.com/asset/download/file/38203) [FL POWER SUPPLY EN](http://download.weidmueller.com/asset/download/file/38213) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132)

Classifications

ETIM 6.0	EC002638
ETIM 7.0	EC002638
ETIM 8.0	EC002638
ETIM 9.0	EC002638
ECLASS 9.0	27-44-03-09
ECLASS 9.1	27-44-03-09
ECLASS 10.0	27-44-03-09
ECLASS 11.0	27-46-02-02
ECLASS 12.0	27-46-02-02
ECLASS 13.0	27-46-02-02
ECLASS 14.0	27-46-02-02

Approvals

Approvals	![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
