BVFL 7.62HP/03/180F SN BK BX

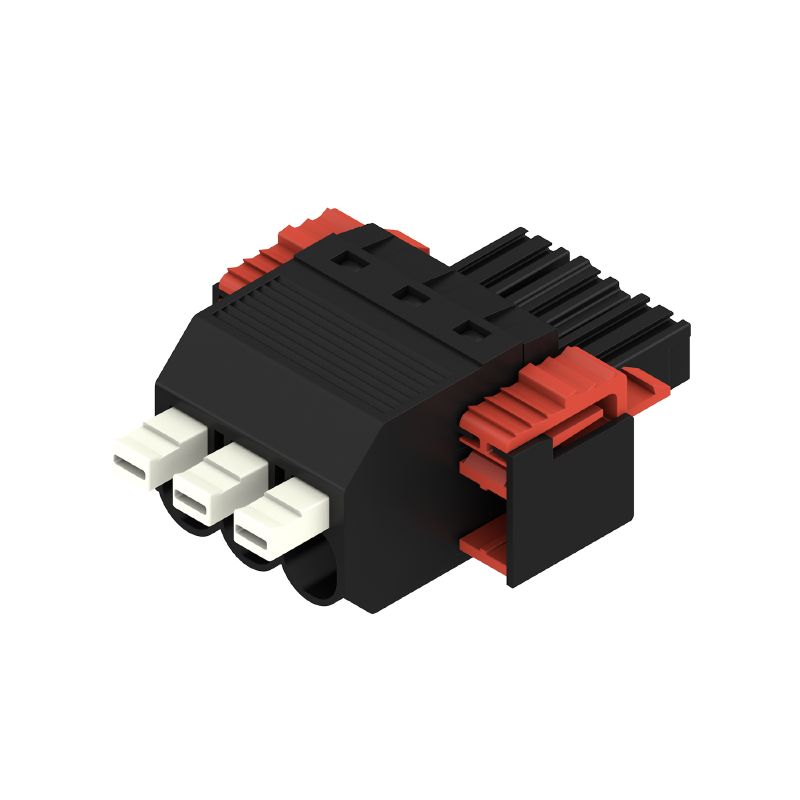

Product image
BVFL 7.62HP/03/180F SN BK BX
Product image
BVFL 7.62HP/03/180F SN BK BX
Dimensional drawing
BVFL 7.62HP/03/180F SN BK BX
Graph
BVFL 7.62HP/03/180F SN BK BX
Graph
Installation without tools
Outlet direction: 90° und 180°
BVFL 7.62HP/03/180F SN BK BX
Graph
BVFL 7.62HP/03/180F SN BK BX
Product benefits
Secure connection of small conductors
PUSH IN WIRE READY
BVFL 7.62HP/03/180F SN BK BX
Product benefits
Installation without tools
Outlet direction: 90° und 180°

BVFL 7.62HP/03/180F SN BK BX

PCB plug-in connector, female plug, 7.62 mm, Number of poles: 3, 180°, PUSH IN with actuator, Clamping range, max. : 6 mm², Box

Tuotteen tunnus 2549340000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 3 Vastineet 6 Samankaltaiset tuotteet 4
Approvals General ordering data Mått och vikter Environmental Product Compliance System Parameters Material data Провода, подходящие для подключения IEC 정격데이터 Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
PCB plug-in connector, female plug, 7.62 mm, Number of poles: 3, 180°, PUSH IN with actuator, Clamping range, max. : 6 mm², Box
Order No.
2549340000
Type
BVFL 7.62HP/03/180F SN BK BX
GTIN(EAN)
4050118558814
Qty.
48 items
Product data
IEC: 1000 V / 41 A / 0.5 - 6 mm²
UL: 600 V / 39 A / AWG 24 - AWG 8
Packaging
Box

Mått och vikter

Depth
52,1 mm
깊이 (인치)
2,051 inch
Height
20,6 mm
Height (inches)
0,811 inch
Net weight
16,856 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE Power - series BV/SV 7.62HP
Type of connection
Field connection
Wire connection method
PUSH IN with actuator
Pitch in mm (P)
7,62 mm
Pitch in inches (P)
0,3 "
Conductor outlet direction
180°
Number of poles
3
L1 in mm
15,24 mm
L1 in inches
0,6 "
Number of rows
1
Pin series quantity
1
Rated cross-section
6 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP 20
Protection degree
IP20
Volume resistance
4.50 mΩ
Can be coded
Yes
Stripping length
12 mm
Screwdriver blade
0.6 x 3.5
Plugging cycles
25

Material data

Izolační materiál
PA GF
Barevný
black
Barevný graf (podobné)
RAL 9011
Insulating material group
II
CTI(Comparative Tracking Index, 비교 추적 지수)
≥ 600
UL 94 flammability rating
V-0
Materiál kontaktu
Cu-alloy
Contact surface
tinned
Estructura de capas del contacto del conector
6...8 µm Sn glossy
Storage temperature, min.
−40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
−50 °C
Operating temperature, max.
125 °C
Temperature range, installation, min.
−25 °C
Temperature range, installation, max.
125 °C

Провода, подходящие для подключения

Clamping range, min.
0,5 mm²
Clamping range, max.
6 mm²
단선, 최소 H05(07) V-U
0,5 mm²
Solid, max. H05(07) V-U
6 mm²
Flexible, min. H05(07) V-K
0,5 mm²
연선, 최대 H05(07) V-K
6 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,5 mm²
플라스틱 소매 페럴 포함, DIN 46228 pt 4, 최대
6 mm²
con terminale, DIN 46228 pt 1, min.
0,5 mm²
avec embout selon DIN 46 228/1, max.
6 mm²
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      0409500000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9025910000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      9025930000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9004060000
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      9019140000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0186100000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019170000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      4 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0244100000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019200000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0191900000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      0533500000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

IEC 정격데이터

przetestowane zgodnie z normą
IEC 60664-1
IEC 61984
Jmenovitý proud, min. počet pólů (Tu=20 °C)
41 A
Jmenovitý proud, max. počet pólů (Tu=20 °C)
41 A
Jmenovitý proud, min. počet pólů (Tu=40 °C)
41 A
Rated current, max. number of poles (Tu=40°C)
38 A
서지 전압 클래스 정격 전압 / 오염 등급 II/2
1 000 V
서지 전압 클래스 정격 전압 / 오염 등급 III/2
1 000 V
서지 전압 클래스 정격 전압 / 오염 등급 III/3
800 V
서지 전압 클래스 정격 임펄스 전압 / 오염 등급 II/2
6 kV
Névleges lökőfeszültség a III/2 túlfeszültség osztályhoz / szennyezés mértékéhez
8 kV
Jmenovité impulzní napětí pro třídu přepětí / stupeň znečištění III/3
8 kV
Short-time withstand current resistance
3 x 1s with 420 A
Clearance, min.
10,4 mm
Creepage distance, min.
12,7 mm

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
600 V
Rated voltage (Use group C / CSA)
600 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group B / CSA)
33 A
Rated current (Use group C / CSA)
33 A
Rated current (Use group D / CSA)
5 A
Wire cross-section, AWG, min.
AWG 24
Wire cross-section, AWG, max.
AWG 8

Rated data acc. to UL 1059

Rated voltage (Use group B / UL 1059)
600 V
Rated voltage (Use group C / UL 1059)
600 V
Rated voltage (Use group D / UL 1059)
600 V
Rated current (Use group B / UL 1059)
39 A
Rated current (Use group C / UL 1059)
39 A
Rated current (Use group D / UL 1059)
5 A
Wire cross-section, AWG, min.
AWG 24
Wire cross-section, AWG, max.
AWG 8

Packing

Packaging
Box
VPE length
351 mm
VPE width
135 mm
VPE height
61 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Wire end ferrule with plastic collar to DIN 46228/4
  • Wire end ferrule without plastic collar to DIN 46228/1
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Additional pole combinations on request
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
