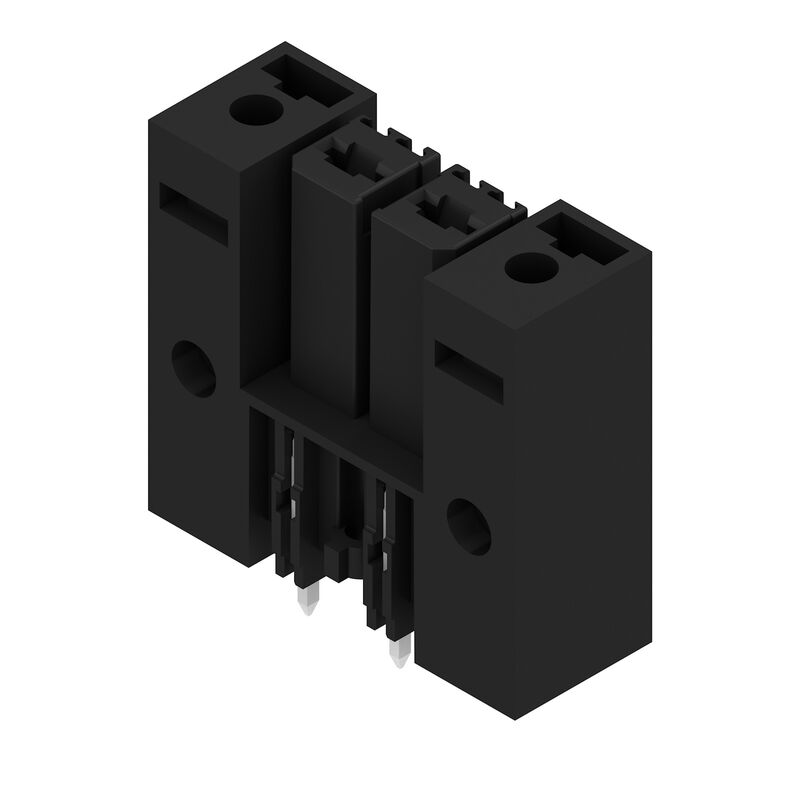

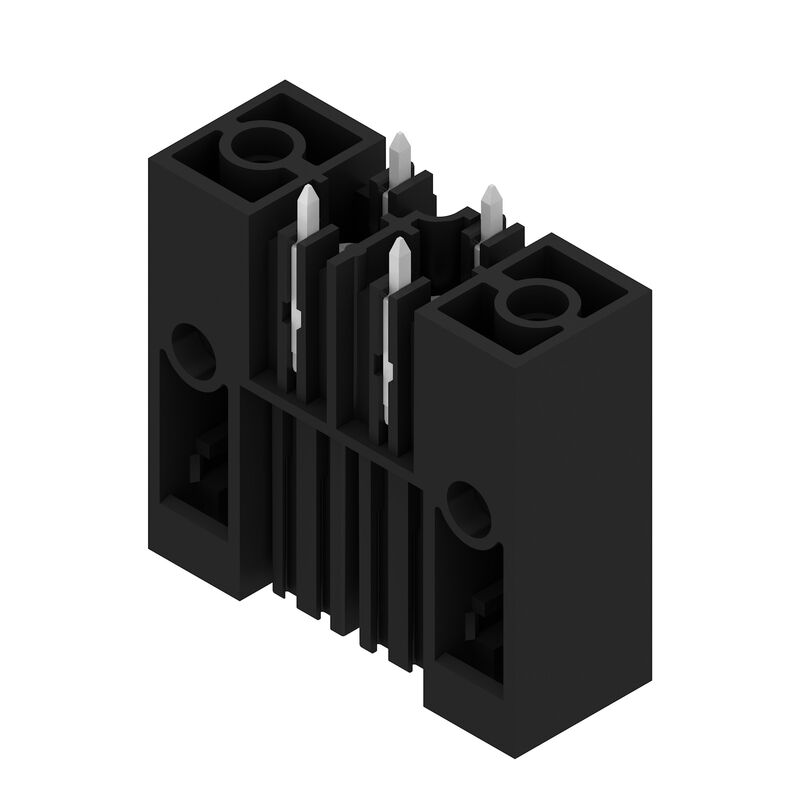

| Version | PCB plug-in connector, female header, Clip-on flange, inverted, THT solder connection, 7.62 mm, Number of poles: 2, 180°, Solder pin length (l): 3.5 mm, tinned, black, Box |
| Order No. | 1928730000 |
| Type | BVL 7.62HP/02/180FI 3.5SN BK BX |
| GTIN (EAN) | 4032248578085 |
| Qty. | 100 items |
| Product data |
IEC: 1000 V / 56.8 A UL: 300 V / 42 A |
| Packaging | Box |
| Depth | 11,4 mm |
| Depth (inches) | 0,449 inch |
| Height | 31,4 mm |
| Height (inches) | 1,236 inch |
| Width | 30,48 mm |
| Width (inches) | 1,2 inch |
| Net weight | 8,5 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Product family | OMNIMATE Power - series BV/SV 7.62HP |
| Type of connection | Board connection |
| Pitch in mm (P) | 7,62 mm |
| Pitch in inches (P) | 0,3 " |
| Number of poles | 2 |
| L1 in mm | 7,62 mm |
| L1 in inches | 0,3 " |
| Number of rows | 1 |
| Pin series quantity | 1 |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch, plugged |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Protection degree | IP20 |
| Volume resistance | 2.00 mΩ |
| Can be coded | Yes |
| Plugging cycles | 25 |
| Plugging force/pole, max. | 7 N |
| Pulling force/pole, max. | 4 N |
| Insulating material | PA GF |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Insulating material group | II |
| Comparative Tracking Index (CTI) | ≥ 500 |
| Insulation strength | ≥ 10⁸ Ω |
| UL 94 flammability rating | V-0 |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Layer structure of solder connection | 4...6 µm Sn matt |
| Layer structure of plug contact | 4...6 µm Sn matt |
| Storage temperature, min. | −40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | −50 °C |
| Operating temperature, max. | 130 °C |
| Temperature range, installation, min. | −25 °C |
| Temperature range, installation, max. | 130 °C |
| tested acc. to standard |
IEC 60664-1
IEC 61984 |
| Rated current, min. number of poles (Tu=20°C) | 56,8 A |
| Rated current, max. number of poles (Tu=20°C) | 41 A |
| Rated current, min. number of poles (Tu=40°C) | 41 A |
| Rated current, max. number of poles (Tu=40°C) | 41 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 1 000 V |
| Rated voltage for surge voltage class / pollution degree III/2 | 630 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 630 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 6 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 6 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 6 kV |
| Short-time withstand current resistance | 3 x 1s with 420 A |
| Clearance, min. | 6,9 mm |
| Creepage distance, min. | 9,66 mm |
| Institute (CSA) | CSA |
| Certificate No. (CSA) | 200039-1534443 |
| Rated voltage (Use group B / CSA) | 300 V |
| Rated voltage (Use group C / CSA) | 300 V |
| Rated voltage (Use group D / CSA) | 600 V |
| Rated current (Use group B / CSA) | 35 A |
| Rated current (Use group C / CSA) | 35 A |
| Rated current (Use group D / CSA) | 5 A |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Institute (cURus) | CURUS |
| Certificate No. (cURus) | E60693 |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated voltage (Use group C / UL 1059) | 300 V |
| Rated voltage (Use group D / UL 1059) | 600 V |
| Rated current (Use group B / UL 1059) | 42 A |
| Rated current (Use group C / UL 1059) | 42 A |
| Rated current (Use group D / UL 1059) | 5 A |
| Clearance distance, min. | 6,9 mm |
| Creepage distance, min. | 9,66 mm |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Packaging | Box |
| VPE length | 215 mm |
| VPE width | 108 mm |
| VPE height | 105 mm |
| Test: Durability of markings |
|
| Test: Misengagement (Non-interchangeability) |
|
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
