Ominaisuudet
| Version | Assortment crimping tool, Crimping tool: PZ 4, Stripping tool: STRIPAX, Crimping range, min.: 0.5, Colour code: DIN |
| Order No. | 9028630000 |
| Type | CRIMP-SET PZ 4 D |
| GTIN (EAN) | 4032248392636 |
| Qty. | 1 items |
| Packaging | Plastic box |
| Depth | 261 mm |
| Depth (inches) | 10,276 inch |
| Height | 57 mm |
| Height (inches) | 2,244 inch |
| Width | 338 mm |
| Width (inches) | 13,307 inch |
| Net weight | 1 752 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1eacbb3e-7931-4ebb-9179-f29fd9b50028 |

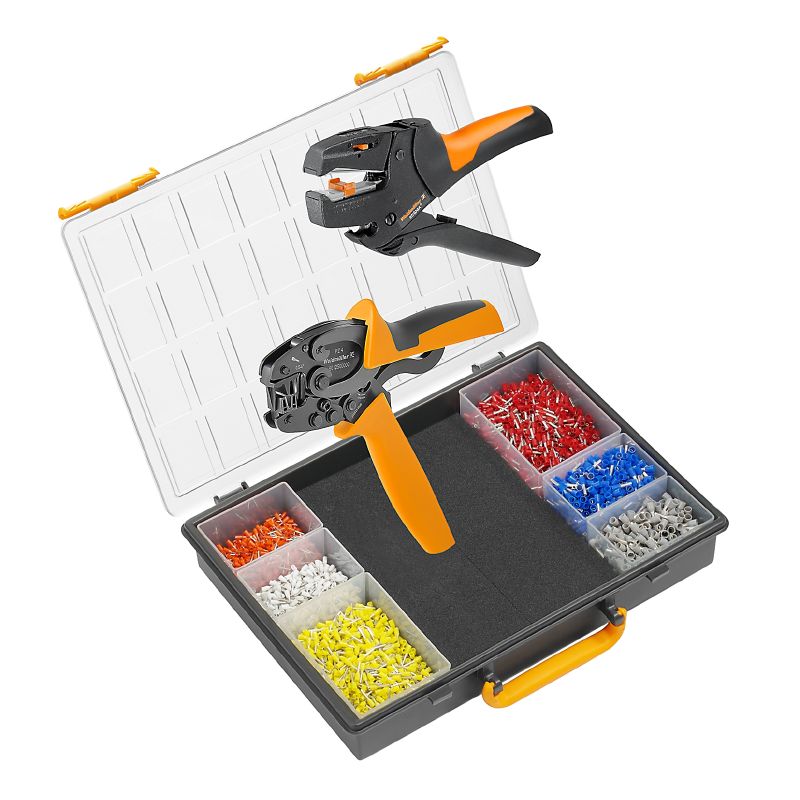

| Description of article | Set includes crimping tool for up to 4 mm², stripping tool and wire-end ferrules in DIN colour code |
| Colour code | DIN |
| Crimping range, max. | 4 mm² |
| Crimping range, min. | 0,5 mm² |
| Crimping tool | PZ 4 |
| Number of AEH | 3 000 pcs. |
| Packaging | Plastic box |
| Stripping tool | STRIPAX |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000524 |
| ETIM 7.0 | EC000524 |
| ETIM 8.0 | EC000524 |
| ETIM 9.0 | EC000524 |
| ECLASS 9.0 | 27-40-02-18 |
| ECLASS 9.1 | 27-40-02-18 |
| ECLASS 10.0 | 27-40-02-18 |
| ECLASS 11.0 | 27-40-02-18 |
| ECLASS 12.0 | 27-40-02-18 |
| ECLASS 13.0 | 27-40-02-18 |
| ECLASS 14.0 | 27-40-02-18 |
