Ominaisuudet

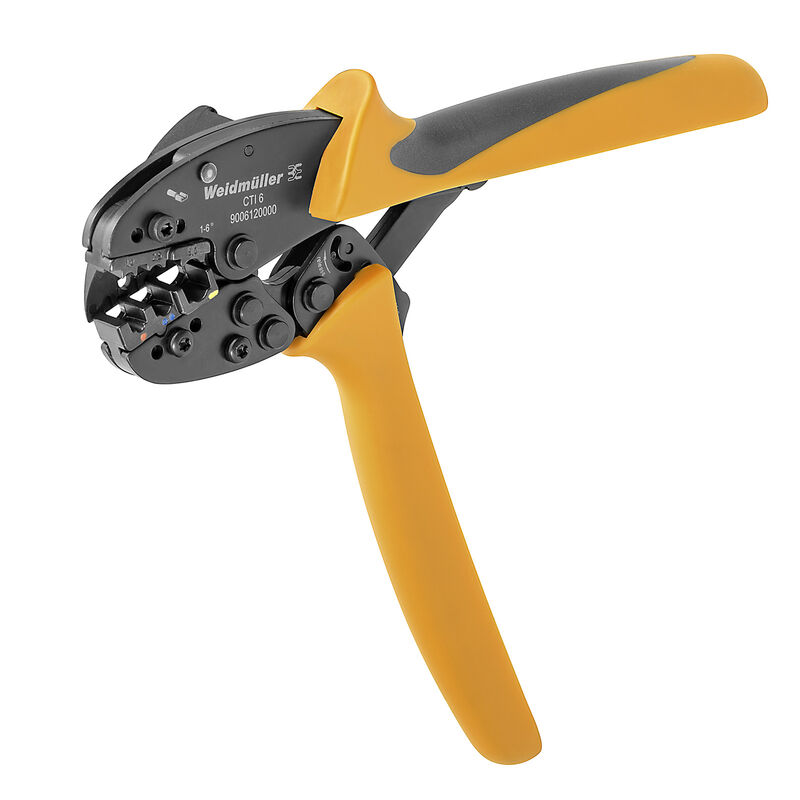

Version | Pressing tool, Crimping tool for contacts, 0.5mm², 6mm², Oval crimping, Double crimp |
Order No. | 9006120000 |
Type | CTI 6 |
GTIN (EAN) | 4008190044527 |
Qty. | 1 items |
Width | 250 mm |
Width (inches) | 9,842 inch |
Net weight | 690,27 g |
RoHS Compliance Status | Not affected |
REACH SVHC | Lead 7439-92-1 |
SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
Description of article | Crimping tool for insulated connectors, 0.5-6 mm² |
Version | Mechanical, without interchangeable inserts |
Conductor cross-section, max. AWG | AWG 10 |
Conductor cross-section, min. AWG | AWG 21 |
Crimping range, max. | 6 mm² |
Crimping range, min. | 0,5 mm² |
Type of contact | Insulated connector |
Crimping station |
|
Crimping type/profile |
Oval crimping
Double crimp |
Wire end ferrules cross-section, max. | 6 mm² |
Wire end ferrules cross-section, min. | 0,5 mm² |
Product information | Not suitable for solid conductors. Insulation on the contact is pressed conically. |
Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66793) |
CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9006120000) |
User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_101215) |
Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
ETIM 6.0 | EC000168 |
ETIM 7.0 | EC000168 |
ETIM 8.0 | EC000168 |
ETIM 9.0 | EC000168 |
ECLASS 9.0 | 21-04-38-11 |
ECLASS 9.1 | 21-04-38-11 |
ECLASS 10.0 | 21-04-38-11 |
ECLASS 11.0 | 21-04-38-11 |
ECLASS 12.0 | 21-04-38-11 |
ECLASS 13.0 | 21-04-38-11 |
ECLASS 14.0 | 21-04-38-11 |
Lisävarusteet
-
Tuotteen tunnus:9200670000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:9200690000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:1492060000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:9200680000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491480000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:1491460000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1491770000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:1491780000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:9200630000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:9200620000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:9200610000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:9200710000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491980000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:9200700000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:1491990000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1491930000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491950000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:9200650000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:9200660000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:1491890000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:1491560000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:9200510000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:1491570000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:9200500000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:9200490000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:1492020000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1492030000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1492190000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1492090000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm²,0.1 mm² - 0.5 mm²
-
Tuotteen tunnus:1492150000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1492180000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1492390000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:1492370000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:1492210000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1492130000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1492100000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm²,0.1 mm² - 0.5 mm²
-
Tuotteen tunnus:1492120000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm²,0.1 mm² - 0.5 mm²
-
Tuotteen tunnus:1492320000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1492220000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1492290000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1492410000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:1492330000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1492240000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1492420000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:9200410000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:1492610000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:9200300000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:9200290000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:9200370000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1492620000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:9200380000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1492630000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:9200360000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491320000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:9200430000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:1492540000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1491270000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:9200320000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:9200420000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:1492520000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1491290000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:9200390000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1312470000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:1233340000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:1216230000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:9036300000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1 mm² - 2.5 mm²,16.75 mm
-
Tuotteen tunnus:9200520000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:1491710000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491740000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491680000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:1491650000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:9200550000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1491620000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm²,0.1 mm² - 0.5 mm²,yellow
-
Tuotteen tunnus:1491760000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:1491670000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:1491690000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491630000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm²,0.1 mm² - 0.5 mm²,yellow
-
Tuotteen tunnus:9200570000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:1491840000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:9200580000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:1491820000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:9200590000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491830000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491790000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:9200270000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:9200210000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:9200090000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²
-
Tuotteen tunnus:9200170000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:2792000000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²
-
Tuotteen tunnus:9200190000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:9200250000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:9200240000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:9200100000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²
-
Tuotteen tunnus:9200120000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²
-
Tuotteen tunnus:9200160000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:9200180000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1491390000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1491370000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm²,0.1 mm² - 0.5 mm²
-
Tuotteen tunnus:1491420000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:1491410000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
On lisävaruste
-
Tuotteen tunnus:9200590000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491840000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:1491810000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:1491790000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:1491850000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491930000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491870000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:9200660000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:1491890000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:1491860000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:9200640000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:1491950000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:9200720000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:9200710000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1887220000VPE:50 items
Feed-through terminal block, Screw connection, dark beige, 6 mm², 41 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, TS 32, V-0, Wemid, 120 °C
-
Tuotteen tunnus:1491550000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:9200510000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:1491540000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm²,0.1 mm² - 0.5 mm²
-
Tuotteen tunnus:1491570000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:9036290000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,0.25 mm² - 1.5 mm²,16.75 mm
-
Tuotteen tunnus:1312450000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1216230000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:9036300000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1 mm² - 2.5 mm²,16.75 mm
-
Tuotteen tunnus:1233330000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1233340000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:9200370000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1492530000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:9200330000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:9200440000VPE:50 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:1492590000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1491270000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:1492520000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1492620000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:9200310000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:1492630000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:9200430000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:1492640000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:9200360000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491260000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1492600000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1491290000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:9200350000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:9200320000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:9200390000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1492060000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:9200680000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:9200630000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:9200620000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1887210000VPE:50 items
Measuring transformer disconnect terminal, Screw connection, 41, 2
-
Tuotteen tunnus:1491770000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:1491780000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1492020000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:9200480000VPE:100 items
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:9200470000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491390000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1491420000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:9200110000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²
-
Tuotteen tunnus:9200180000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:9200250000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:9200210000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:9200080000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²
-
Tuotteen tunnus:9200240000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:9200170000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:2792000000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²
-
Tuotteen tunnus:9200200000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:9200120000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²
-
Tuotteen tunnus:9200090000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²
-
Tuotteen tunnus:1492380000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:1492210000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1492240000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1492180000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1492120000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm²,0.1 mm² - 0.5 mm²
-
Tuotteen tunnus:1492150000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1492280000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1492310000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1492330000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1492390000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:1492400000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:1492250000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1492290000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1492320000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1492200000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1492090000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm²,0.1 mm² - 0.5 mm²
-
Tuotteen tunnus:1492170000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1491680000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:9200560000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:9200530000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:1491750000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²,yellow
-
Tuotteen tunnus:1491710000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491740000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:1491650000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:1491620000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm²,0.1 mm² - 0.5 mm²,yellow
-
Tuotteen tunnus:9200550000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,1.5 mm² - 2.5 mm²
-
Tuotteen tunnus:1491660000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²,red
-
Tuotteen tunnus:1491730000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²,blue
-
Tuotteen tunnus:9200520000VPE:100 items
cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²,red
-
Tuotteen tunnus:1491630000VPE:100 items
cable lug, terminal end,Insulated cable connector,0.5 mm²,0.1 mm² - 0.5 mm²,yellow
-
Tuotteen tunnus:1491460000VPE:100 items
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²
-
Tuotteen tunnus:1491480000VPE:100 items
cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²
-
Tuotteen tunnus:1491470000VPE:100 items
cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²
Varaosat
Yksittäinen osa tuotteelle
-
Tuotteen tunnus:9202610000VPE:1 items
Assortment crimping tool, Crimping tool: PZ 6 Roto/CTI 6, Stripping tool: STRIPAX, Crimping range, min.: 0.14, Colour code: DIN
-
Tuotteen tunnus:9202600000VPE:1 items

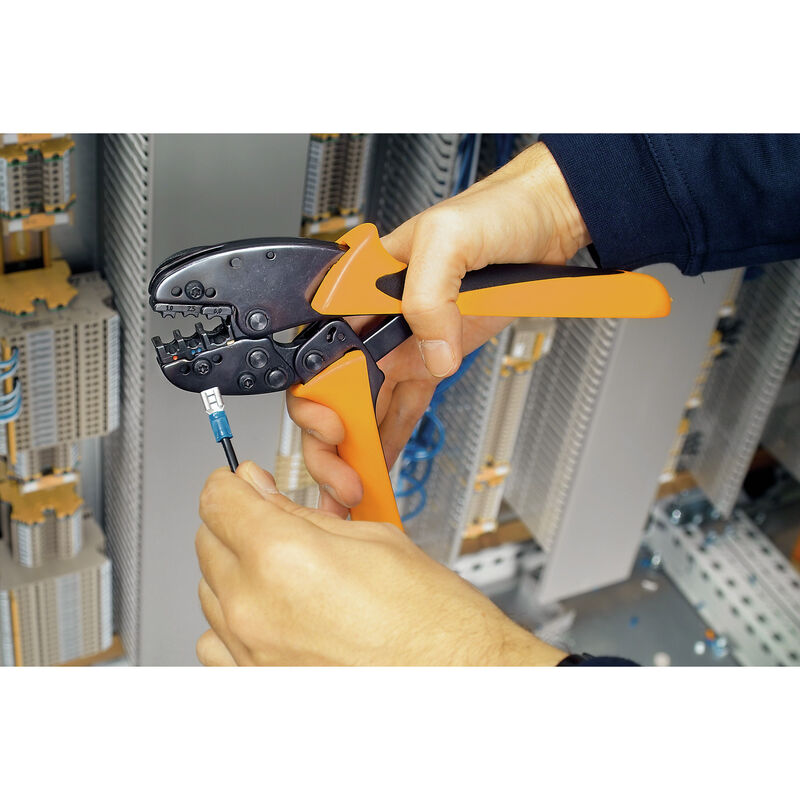

Assortment crimping tool, Crimping tool: CTI 6, Stripping tool: STRIPAX, Crimping range, min.: 0.5
-
-
-
-
-
-
