Tämä tuote ei ole vielä saatavana .

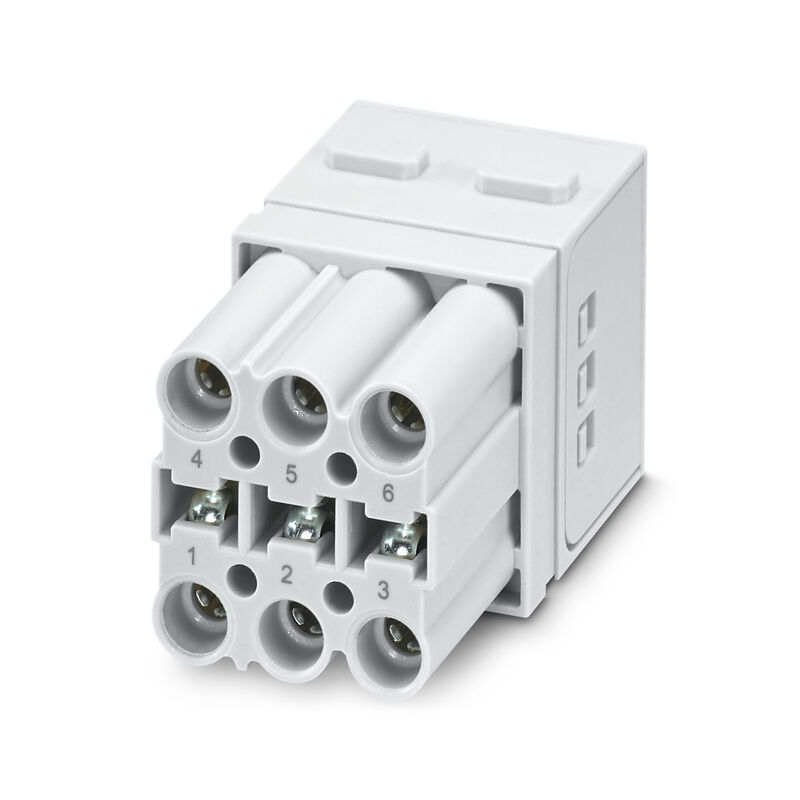

Module, 100 V, 20 A, Number of poles: 6, PUSH IN with actuator, Female, Required plug-in slots: 2

Tuotteen tunnus 3193730000
Lataa tietosivu Tekninen tuki
Lisävarusteet 24 Samankaltaiset tuotteet 113
General ordering data Dimensions and weights Temperatures General data PE connection data Version Power contact Classifications

General ordering data

Version
Module, 100 V, 20 A, Number of poles: 6, PUSH IN with actuator, Female, Required plug-in slots: 2
Order No.
3193730000
Type
HDC MHE 6 TSC FP
GTIN (EAN)
4099987981071
Qty.
1 items

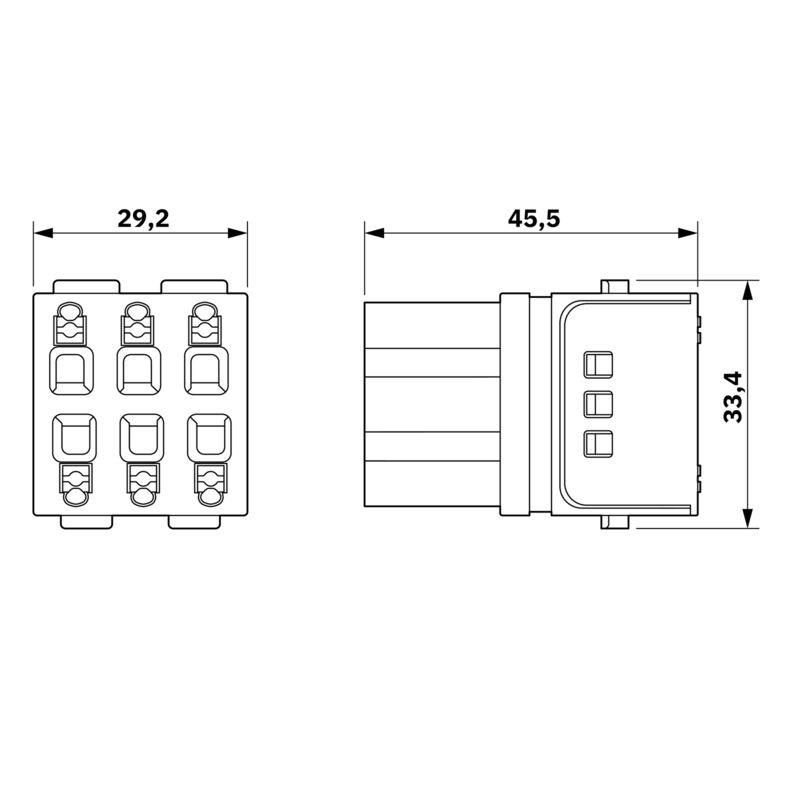

Dimensions and weights

Depth
34 mm
Depth (inches)
1,339 inch
Height
45,8 mm
Height (inches)
1,803 inch
Width
33,8 mm
Width (inches)
1,331 inch
Length
29,2 mm
Length (inches)
1,15 inch
Net weight
17 g

Temperatures

Limit temperature
-40 °C ... 125 °C

General data

Basic material
Polycarbonate
Number of poles
6
Plugging cycles
≥ 500
Pollution severity
3

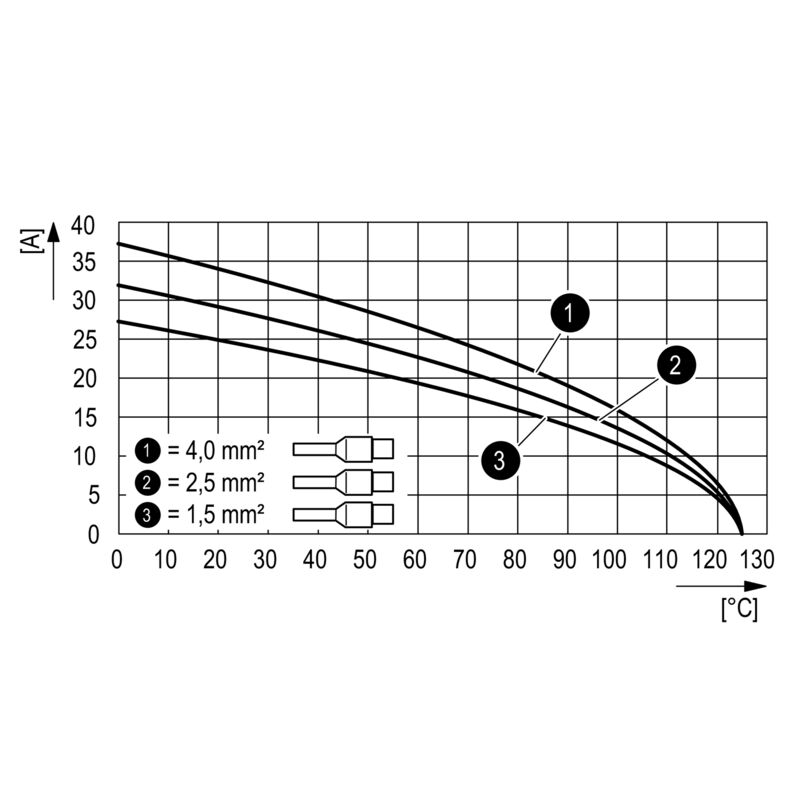

Rated current (DIN EN 61984)
20 A
Rated impulse voltage (DIN EN 61984)
6 kV
Rated voltage (DIN EN 61984)
100 V
Required plug-in slots
2
Series
ModuPlug
Surge voltage category
III
Type
Female
UL 94 flammability rating
V-0

PE connection data

Connection type PE
Screw connection via module frame

Version

Conductor cross-section, max.
4 mm²
Conductor cross-section, min.
1,5 mm²
Type of connection

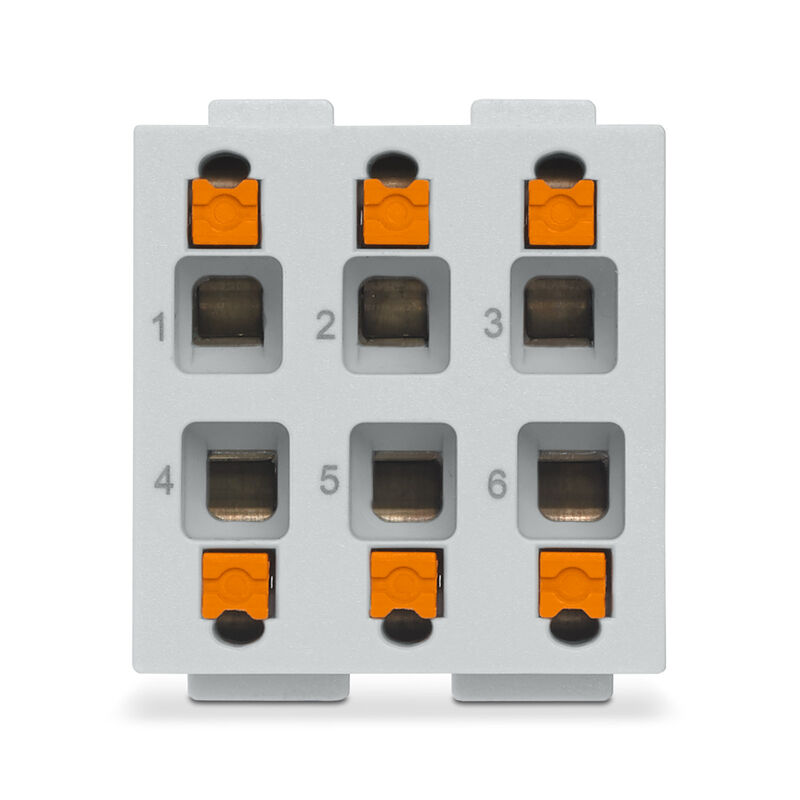

PUSH IN with actuator
Wire connection cross section AWG, max.
AWG 20
Wire connection cross section AWG, min.
AWG 12

Power contact

Stripping length according to the cable diameter
  • Stripping length:
    8 mm

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-17
ECLASS 15.0
27-44-02-17
