Ominaisuudet
| Version | Pressing tool, Crimping tool for contacts, 0.22mm², 2.5mm², B-Crimp |
| Order No. | 9014140000 |

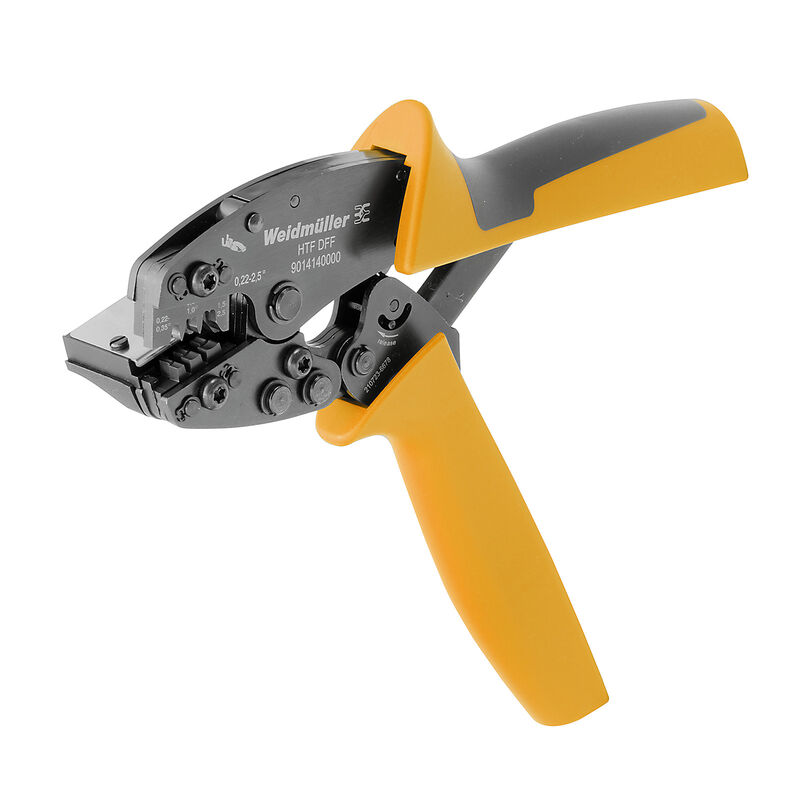

| Type | HTF DFF |
| GTIN (EAN) | 4008190297305 |
| Qty. | 1 items |
| Width | 205 mm |
| Width (inches) | 8,071 inch |
| Net weight | 442 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
| Description of article | Crimping tools for Weidmüller DFF contacts |
| Version | Mechanical, without interchangeable inserts |
| Conductor cross-section, max. AWG | AWG 14 |
| Conductor cross-section, min. AWG | AWG 24 |
| Crimping range, max. | 2,5 mm² |
| Crimping range, min. | 0,22 mm² |
| Type of contact | Weidmüller DFF |
| Crimping type/profile | B-Crimp |
| Wire end ferrules cross-section, max. | 2,5 mm² |
| Wire end ferrules cross-section, min. | 0,22 mm² |
| Approval/Certificate/Document of Conformity | [Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_318099) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9014140000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
