Ominaisuudet
| Order No. | 1166000022 |

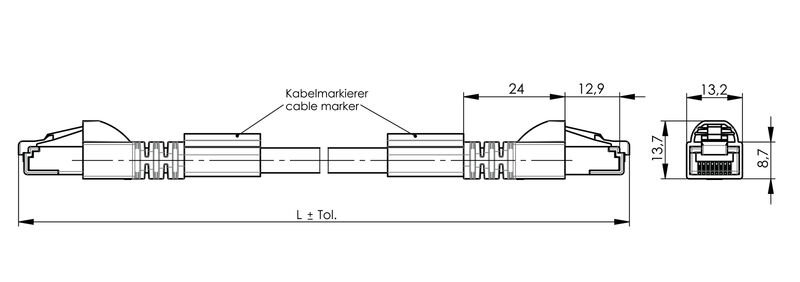

| Type | IE-C5ES8UG0022M40M40-G |
| GTIN (EAN) | 4064675855132 |
| Qty. | 1 items |
| Length | 2,2 m |
| Length (inches) | 86,614 inch |
| Net weight | 89 g |
| Installation temperature | -10 °C...60 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| PoE / PoE+ | conforming to IEEE 802.3at |
| Connector standard | IEC 60603-7-51 |
| Connector standard | IEC 60603-7-51 |
| Arrangement of wire cores | Twisted pair |
| Colour sequence or wires - wire pairs | white/blue - blue, white/orange - orange, white/green - green, white/brown - brown |
| Complete shielding | Shielding braid made from copper wiring |
| Cross-section | 4*2*AWG 26/7 - 4*2*0.128 mm² |
| Insulation | PE |
| Insulation cross-section | 0,98 mm |
| Material sheath | PUR |
| Number of wires | 8 |
| Sheath diameter, max. | 6 mm |
| Sheath diameter, min. | 5,6 mm |
| Sheathing colour | green |
| Shielding | SF/UTP |
| Strands | 7 |
| Wire material | Stranded tin-plated copper wire |
| Wire pair shielding | Aluminium foil |
| Category | Cat.5 (ISO/IEC 11801) |
| Test voltage: wire-wire-shield | 750 V DC, 1 min |
| Transmission rate |
10/100 MBit/s
1000 MBit/s |
| Abrasion resistance | very good |
| Halogen | halogen-free, according to IEC 60754-2 |
| Min. bending radius, once only | 5 x cable diameter |
| Min. bending radius, repetitive | 10 x cable diameter |
| Resistance to oils | EN 50305 |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| Silicone-free | Yes |
| UV-resistant | Yes |
| Plug left | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
| Plug right | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
| Plug left | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
| Plug right | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
| ETIM 9.0 | EC002599 |
| ECLASS 9.0 | 27-06-03-08 |
| ECLASS 9.1 | 27-06-03-08 |
| ECLASS 10.0 | 27-06-03-08 |
| ECLASS 11.0 | 27-06-03-08 |
| ECLASS 12.0 | 27-06-03-08 |
| ECLASS 13.0 | 27-06-03-08 |
| ECLASS 14.0 | 27-06-03-08 |
| Approvals |   |
| ROHS | Conform |
