IE-FSMZ2LY0015MLD0LD0-X

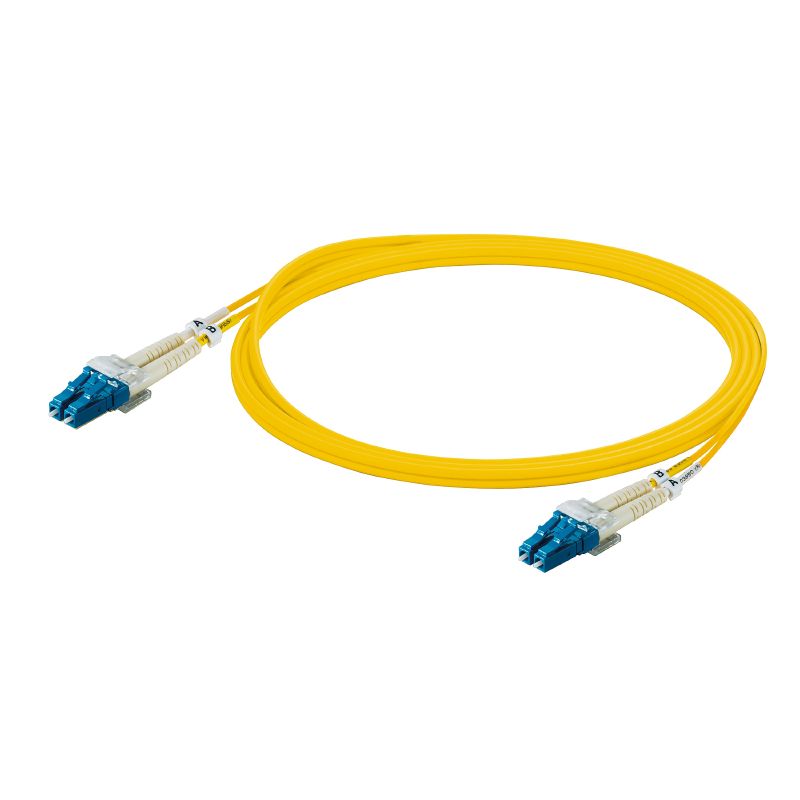

Pre-assembled patch cable, crossover, LC-Duplex IP 20, LC-Duplex IP 20, 9 µm, LSZH, 15 m

Product ID 1433950150
Gegevensblad downloaden Product Downloads
Toebehoren 2 Verwante producten 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Fibre-optic Cable structure Plug Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
Pre-assembled patch cable, crossover, LC-Duplex IP 20, LC-Duplex IP 20, 9 µm, LSZH, 15 m
Order No.
1433950150
Type
IE-FSMZ2LY0015MLD0LD0-X
GTIN (EAN)
4050118694246
Qty.
1  items

Dimensions and weights

Length
15  m
Length (inches)
590,551  inch
Net weight
0,01  g

Temperatures

Storage temperature
-25 °C...75 °C
Operating temperature
-5 °C...75 °C
Installation temperature
-5 °C...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Fibre-optic

Fibre type
Singlemode
OS1

Cable structure

Cable layout
ZIPCORD
Core diameter
9  µm
Material sheath
LSZH
Primary coating
245  µm
Sheath diameter
3*6 mm
Sheathing colour
yellow
Standard designations
I-V(ZN)Y

Plug

Plug left
LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded
Plug right
LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded

Plug, left

Plug left
LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded

Plug, right

Plug right
LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded

Classifications

ETIM 6.0
EC002607
ETIM 7.0
EC002607
ETIM 8.0
EC002607
ETIM 9.0
EC002607
ETIM 10.0
EC002607
ECLASS 9.0
27-06-10-03
ECLASS 9.1
27-06-10-03
ECLASS 10.0
27-06-10-03
ECLASS 11.0
27-06-10-03
ECLASS 12.0
27-06-10-03
ECLASS 13.0
27-06-10-03
ECLASS 14.0
27-06-10-03
ECLASS 15.0
27-06-10-03
