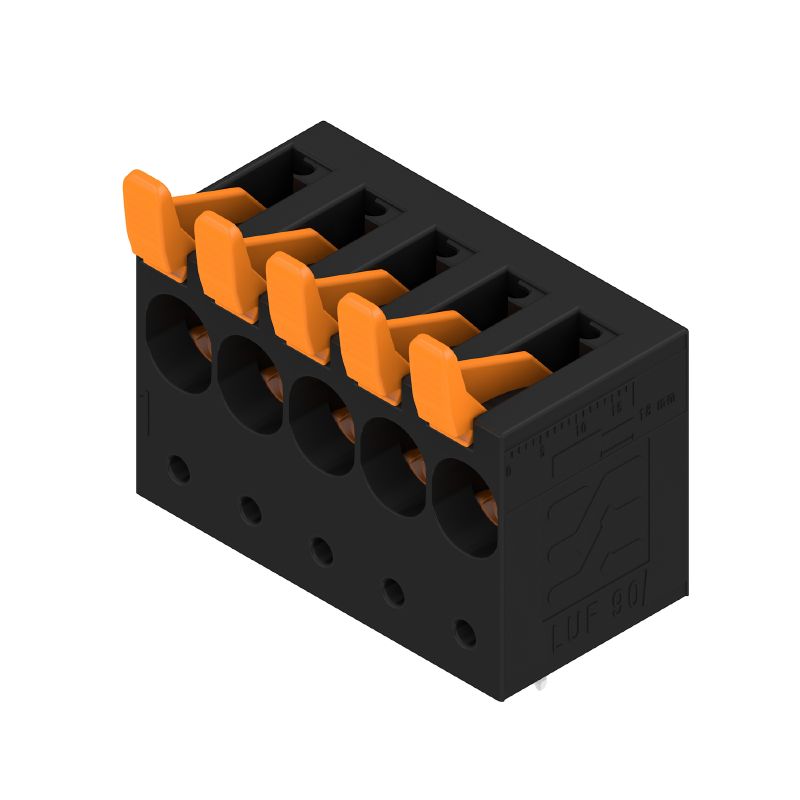

LUF 10.00/05/90V 5.0SN BK BX — Product image

Lataa tietosivu EDA-yksittäisosa

LUF 10.00/05/90V 5.0SN BK BX

Printed circuit board terminals, 10.00 mm, Number of poles: 5, 90°, Solder pin length (l): 5 mm, black, PUSH IN with actuator, Clamping range, max. : 16 mm², Box

Tuotteen tunnus 2453720000

Ominaisuudet

General ordering data

Version	Printed circuit board terminals, 10.00 mm, Number of poles: 5, 90°, Solder pin length (l): 5 mm, black, PUSH IN with actuator, Clamping range, max. : 16 mm², Box
Order No.	2453720000
Type	LUF 10.00/05/90V 5.0SN BK BX
GTIN (EAN)	4050118493603
Qty.	25 items
Product data	IEC: 1000 V / 92 A / 0.5 - 25 mm² UL: 600 V / 58 A / AWG 18 - AWG 6
Packaging	Box

Dimensions and weights

Depth	26,45 mm
Depth (inches)	1,041 inch
Height	47,03 mm
Height (inches)	1,852 inch
Height of lowest version	42,03 mm
Width	51,58 mm
Width (inches)	2,031 inch
Net weight	51,493 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

System parameters

Product family	OMNIMATE Power - series LU
Wire connection method	PUSH IN with actuator
Mounting onto the PCB	THT solder connection
Conductor outlet direction	90°
Pitch in mm (P)	10 mm
Pitch in inches (P)	0,394 "
Number of poles	5
Pin series quantity	1
Fitted by customer	No
Number of rows	1
Solder pin length (l)	5 mm
Solder pin dimensions	d = 1.2 mm Octagonal
Solder eyelet hole diameter (D)	1,6 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
Number of solder pins per pole	2
Screwdriver blade	0.8 x 4.0
Stripping length	18 mm
L1 in mm	40 mm
L1 in inches	1,575 "
Touch-safe protection acc. to DIN VDE 0470	IP20 plugged/ IP10 unplugged
Touch-safe protection acc. to DIN VDE 57 106	touch-safe with connected connectors from 6 mm²
Protection degree	IP20

Material data

Insulating material	Wemid (PA)
Colour	black
Colour chart (similar)	RAL 9011
Insulating material group	I
Comparative Tracking Index (CTI)	≥ 600
UL 94 flammability rating	V-0
Contact base material	E-Cu
Contact material	Cu-alloy
Storage temperature, min.	−40 °C
Storage temperature, max.	70 °C
Operating temperature, min.	−40 °C
Operating temperature, max.	120 °C

Conductors suitable for connection

Clamping range, min.	0,5 mm²
Clamping range, max.	16 mm²
Solid, min. H05(07) V-U	0,5 mm²
Solid, max. H05(07) V-U	16 mm²
Stranded, min. H07V-R	6 mm²
Stranded, max. H07V-R	25 mm²
Flexible, min. H05(07) V-K	0,5 mm²
Flexible, max. H05(07) V-K	25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	16 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	16 mm²
Plug gauge in accordance with EN 60999 a x b; ø	5.3mm (B6)
Clampable conductor	Cross-section for conductor connection: Type: fine-wired nominal: 2,5 mm² wire end ferrule: Stripping length: nominal: 20 mm Recommended wire-end ferrule: 9019180000 Stripping length: nominal: 18 mm Recommended wire-end ferrule: 9004090000 Cross-section for conductor connection: Type: fine-wired nominal: 4 mm² wire end ferrule: Stripping length: nominal: 20 mm Recommended wire-end ferrule: 9019210000 Stripping length: nominal: 18 mm Recommended wire-end ferrule: 9004110000 Cross-section for conductor connection: Type: fine-wired nominal: 6 mm² wire end ferrule: Stripping length: nominal: 20 mm Recommended wire-end ferrule: 0565700000 Stripping length: nominal: 18 mm Recommended wire-end ferrule: 9004130000 Cross-section for conductor connection: Type: fine-wired nominal: 10 mm² wire end ferrule: Stripping length: nominal: 21 mm Recommended wire-end ferrule: 0565800000 Stripping length: nominal: 18 mm Recommended wire-end ferrule: 0379300000 Cross-section for conductor connection: Type: fine-wired nominal: 16 mm² wire end ferrule: Stripping length: nominal: 21 mm Recommended wire-end ferrule: 0566000000 Stripping length: nominal: 18 mm Recommended wire-end ferrule: 0375200000 Cross-section for conductor connection: Type: fine-wired nominal: 1,5 mm² wire end ferrule: Stripping length: nominal: 20 mm Recommended wire-end ferrule: 0565600000 Stripping length: nominal: 18 mm Recommended wire-end ferrule: 9004070000
Reference text	Length of ferrules is to be chosen depending on the product and the rated voltage. The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard	IEC 60947-7-4
Rated current, min. number of poles (Tu=20°C)	92 A
Rated current, max. number of poles (Tu=20°C)	80 A
Rated current, min. number of poles (Tu=40°C)	82 A
Rated current, max. number of poles (Tu=40°C)	76 A
Rated voltage for surge voltage class / pollution degree II/2	1 000 V
Rated voltage for surge voltage class / pollution degree III/2	690 V
Rated voltage for surge voltage class / pollution degree III/3	1 000 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2	6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	8 kV

Rated data acc. to CSA

Rated voltage (Use group B / CSA)	600 V
Rated voltage (Use group C / CSA)	600 V
Rated voltage (Use group D / CSA)	600 V
Rated current (Use group B / CSA)	58 A
Rated current (Use group C / CSA)	58 A
Rated current (Use group D / CSA)	5 A
Wire cross-section, AWG, min.	AWG 18
Wire cross-section, AWG, max.	AWG 6

Rated data acc. to UL 1059

Institute (cURus)	CURUS
Certificate No. (cURus)	E60693
Rated voltage (Use group B / UL 1059)	600 V
Rated voltage (Use group C / UL 1059)	600 V
Rated voltage (Use group D / UL 1059)	600 V
Rated current (Use group B / UL 1059)	58 A
Rated current (Use group C / UL 1059)	58 A
Rated current (Use group D / UL 1059)	5 A
Wire cross-section, AWG, min.	AWG 18
Wire cross-section, AWG, max.	AWG 6
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Packing

Packaging	Box
VPE length	316 mm
VPE width	135 mm
VPE height	52 mm

Type tests

Test: Durability of markings	Standard: IEC 60947-1 section 8.2.4.5.1 / 06.07, IEC 60512-1-1:2002-02 Test: mark of origin, type identification, pitch, durability, stripping length Evaluation: available
Test: Clampable cross section	Standard: IEC 60999-1 section 7 and 9.1 / 11.99, IEC 60947-1 section 8.2.4.5.1 / 03.11 Conductor type: Type of conductor and conductor cross-section: solid 0.5 mm² Type of conductor and conductor cross-section: stranded 0.5 mm² Type of conductor and conductor cross-section: solid 16 mm² Type of conductor and conductor cross-section: stranded 16 mm² Type of conductor and conductor cross-section: H07V-U16 Type of conductor and conductor cross-section: H07V-U6 Type of conductor and conductor cross-section: H07V-K16 Type of conductor and conductor cross-section: AWG 4 Evaluation: passed
Test for damage to and accidental loosening of conductors	Standard: IEC 60999-1 section 9.4 / 11.99 Requirement: 0.3 kg Conductor type: Type of conductor and conductor cross-section: AWG 20/1 Type of conductor and conductor cross-section: AWG 20/19 Type of conductor and conductor cross-section: H05V-U0.5 Type of conductor and conductor cross-section: H05V-K0.5 Evaluation: passed Requirement: 2.9 kg Conductor type: Type of conductor and conductor cross-section: H07V-U16 Type of conductor and conductor cross-section: H07V-K16 Evaluation: passed Requirement: 4,5 kg Conductor type: Type of conductor and conductor cross-section: AWG 4/7 Type of conductor and conductor cross-section: AWG 4/19 Evaluation: passed
Pull-out test	Standard: IEC 60999-1 section 9.5 / 11.99 Requirement: ≥20 N Conductor type: Type of conductor and conductor cross-section: AWG 20/1 Type of conductor and conductor cross-section: AWG 20/19 Type of conductor and conductor cross-section: H05V-U0.5 Type of conductor and conductor cross-section: H05V-K0.5 Evaluation: passed Requirement: ≥100 N Conductor type: Type of conductor and conductor cross-section: H07V-U16 Type of conductor and conductor cross-section: H07V-K16 Evaluation: passed Requirement: ≥ 135 N Conductor type: Type of conductor and conductor cross-section: AWG 4/7 Type of conductor and conductor cross-section: AWG 4/19 Evaluation: passed

Important note

IPC conformity

Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Notes

Additional variants on request

Rated current related to rated cross-section & min. No. of poles.

Wire end ferrule without plastic collar to DIN 46228/1

Wire end ferrule with plastic collar to DIN 46228/4

P on drawing = pitch

Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

The test point can only be used as potential-pickup point.

The single-position PCB terminal block can be used for voltages up to 1500 V (DC) and 1000 V (AC). The relevant device standard and the appropriate required clearances and creepage distances should be observed in the application

Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months

Downloads

Approval/Certificate/Document of Conformity	[Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_42090)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2453720000)
Product Change Notification	[20210909 Color Change of Actuator to LLF(S) and LUF(S) Family](https://mdcop.weidmueller.com/mediadelivery/asset/900_236822) [20210909 LLF(S) und LUF(S) Familie - Farbänderung des Betätigungselementes](https://mdcop.weidmueller.com/mediadelivery/asset/900_236823)
User Documentation	[QR-Code product handling video](https://mdcop.weidmueller.com/mediadelivery/asset/900_78411) [Assembly_instruction_Montageanleitung_LLF_LUF_EN_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_268108)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL DRIVES EN](http://download.weidmueller.com/asset/download/file/40061) [MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL DRIVES DE](http://download.weidmueller.com/asset/download/file/40062) [FL APPL_INVERTER EN](http://download.weidmueller.com/asset/download/file/38256) [FL_BASE_STATION_EN](http://download.weidmueller.com/asset/download/file/38194) [FL ELEVATOR EN](http://download.weidmueller.com/asset/download/file/38203) [FL POWER SUPPLY EN](http://download.weidmueller.com/asset/download/file/38213) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132)

Classifications

ETIM 6.0	EC002643
ETIM 7.0	EC002643
ETIM 8.0	EC002643
ETIM 9.0	EC002643
ECLASS 9.0	27-44-04-01
ECLASS 9.1	27-44-04-01
ECLASS 10.0	27-44-04-01
ECLASS 11.0	27-46-01-01
ECLASS 12.0	27-46-01-01
ECLASS 13.0	27-46-01-01
ECLASS 14.0	27-46-01-01

Approvals

Approvals	![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
