Ominaisuudet

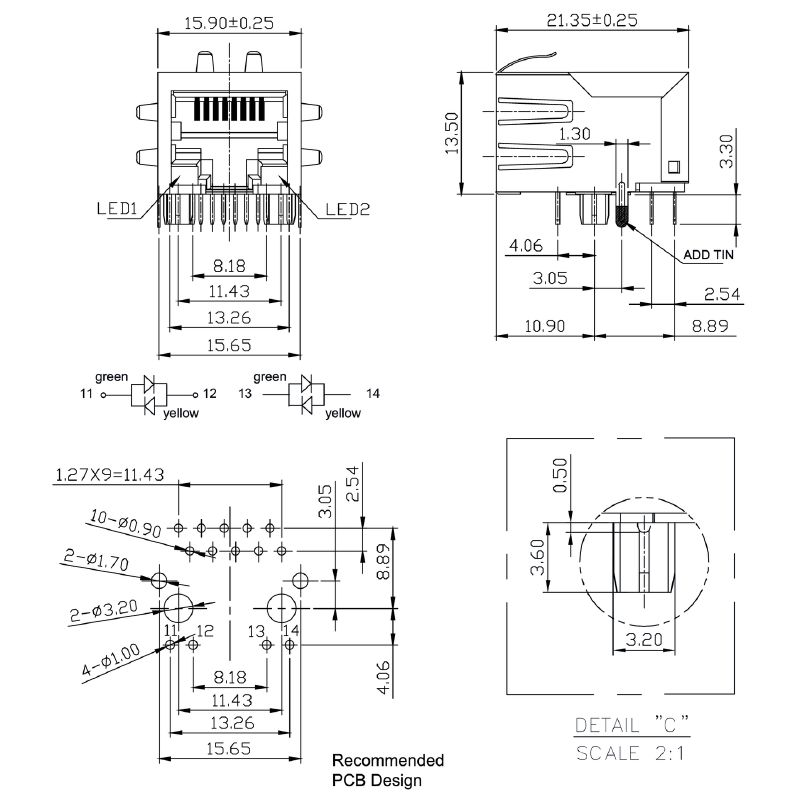

| Version | PCB plug-in connector, RJ45 jacks transformer, THT/THR solder connection, 90°, Latch option: bottom, Number of poles: 8, Tape |
| Order No. | 2638860000 |
| Type | RJ45G1 R1D 3.3E4GY/GY RL |
| GTIN (EAN) | 4050118657098 |
| Qty. | 200 items |
| Packaging | Tape |
| Net weight | 0,025 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Forward current | 20 mA |
| Forward voltage, max. | 2,5 V |
| Forward voltage, min. | 1,8 V |
| Latch option | bottom |
| Mounting onto the PCB | THT/THR solder connection |
| Number of poles | 8 |
| Outgoing elbow | 90° |
| Pitch in inches (P) | 0,05 " |
| Pitch in mm (P) | 1,27 mm |
| Plugging cycles | 750 |
| Product family | OMNIMATE Data - RJ45 transformer jack |
| Protection degree | IP20 |
| Solder pin dimensions | Octagonal |
| Solder pin length (l) | 3,3 mm |
| Soldering process |
Reflow soldering
Manual soldering Wave soldering |
| Tolerance of solder pin position | ± 0.1 mm |
| Type of connection | Solder connection |
| Dielectric strength, contact / contact | 1000 V DC |
| Dielectric strength, contact / shield | 1500 V DC |
| Rated current | 1.5 A |
| Rated voltage | 125 V |
| Insulating material | PA 9T |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Moisture Level (MSL) | 1 |
| UL 94 flammability rating | V-0 |
| Contact material | Cu-alloy |
| Contact surface | Gold over nickel |
| Operating temperature, min. | −40 °C |
| Operating temperature, max. | 85 °C |
| Packaging | Tape |
| VPE length | 356 mm |
| VPE width | 353 mm |
| VPE height | 131 mm |
| Approval/Certificate/Document of Conformity | [Certificate of Compliance](https://mdcop.weidmueller.com/mediadelivery/asset/900_217537) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_96826) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
| ETIM 8.0 | EC002637 |
| ETIM 9.0 | EC002637 |
| ECLASS 9.0 | 27-44-04-02 |
| ECLASS 9.1 | 27-44-04-02 |
| ECLASS 10.0 | 27-44-04-02 |
| ECLASS 11.0 | 27-46-02-01 |
| ECLASS 12.0 | 27-46-02-01 |
| ECLASS 13.0 | 27-46-02-01 |
| ECLASS 14.0 | 27-46-02-01 |
| ROHS | Conform |
