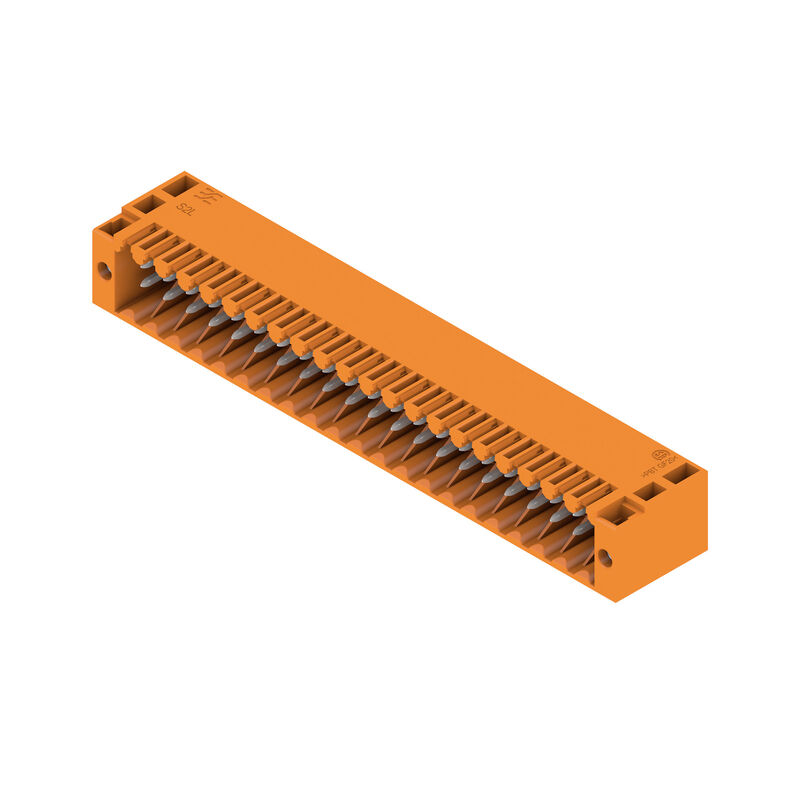

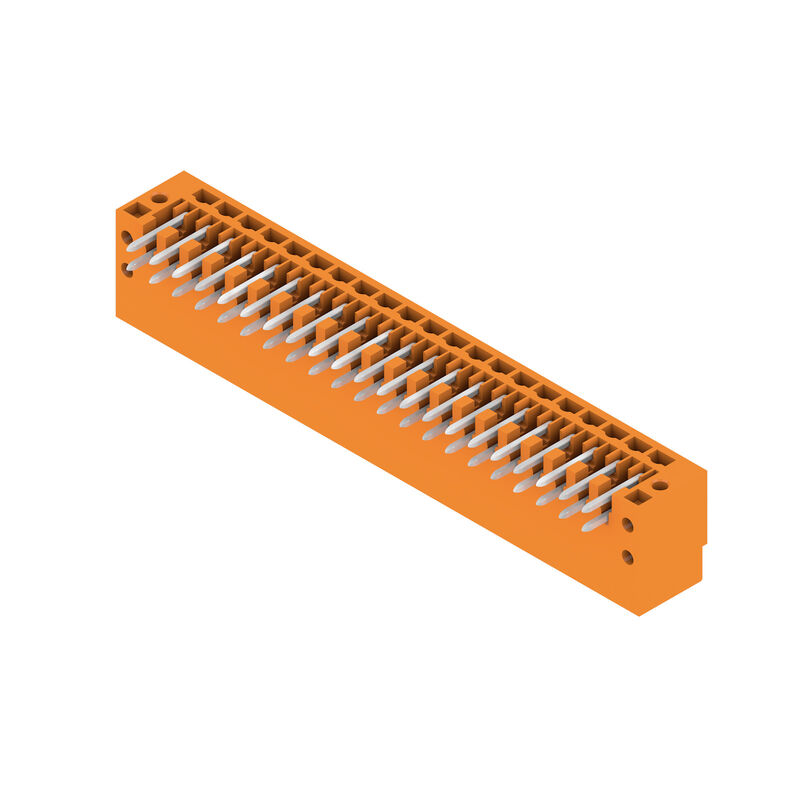

S2L 3.50/42/90F 3.5SN OR BX — Product image

Lataa tietosivu EDA-yksittäisosa Samankaltaiset tuotteet

S2L 3.50/42/90F 3.5SN OR BX

PCB plug-in connector, male header, Flange, THT solder connection, 3.50 mm, Number of poles: 42, 90°, Solder pin length (l): 3.5 mm, tinned, orange, Box

Tuotteen tunnus 2559430000

Ominaisuudet

General ordering data

Version	PCB plug-in connector, male header, Flange, THT solder connection, 3.50 mm, Number of poles: 42, 90°, Solder pin length (l): 3.5 mm, tinned, orange, Box
Order No.	2559430000
Type	S2L 3.50/42/90F 3.5SN OR BX
GTIN (EAN)	4050118669022
Qty.	18 items
Product data	IEC: 250 V / 10 A UL: 150 V / 10 A
Packaging	Box

Dimensions and weights

Depth	14,2 mm
Depth (inches)	0,559 inch
Height	14 mm
Height (inches)	0,551 inch
Height of lowest version	10,5 mm
Width	80,5 mm
Width (inches)	3,169 inch
Net weight	10,929 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

System specifications

Product family	OMNIMATE Signal - series B2L/S2L 3.50 - 2-row
Type of connection	Board connection
Mounting onto the PCB	THT solder connection
Pitch in mm (P)	3,5 mm
Pitch in inches (P)	0,138 "
Outgoing elbow	90°
Number of poles	42
Number of solder pins per pole	1
Solder pin length (l)	3,5 mm
Solder pin dimensions	d = 1.0 mm Octagonal
Solder eyelet hole diameter (D)	1,3 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
L1 in mm	70 mm
L1 in inches	2,758 "
Pin series quantity	2
Touch-safe protection acc. to DIN VDE 57 106	finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470	IP20 plugged/ IP10 unplugged
Can be coded	Yes
Plugging force/pole, max.	5 N
Pulling force/pole, max.	4 N
Tightening torque	Torque type: Mounting screw, PCB Usage information: Tightening torque: min.: 0,1 Nm max.: 0,15 Nm Recommended screw: Part number: 1610740000

Material data

Insulating material	PBT
Colour	orange
Colour chart (similar)	RAL 2000
Insulating material group	IIIa
Comparative Tracking Index (CTI)	≥ 200
UL 94 flammability rating	V-0
Contact material	Cu-alloy
Contact surface	tinned
Layer structure of solder connection	2...3 µm Ni / 5...7 µm Sn glossy
Storage temperature, min.	−40 °C
Storage temperature, max.	70 °C
Operating temperature, min.	−50 °C
Operating temperature, max.	100 °C
Temperature range, installation, min.	−30 °C
Temperature range, installation, max.	100 °C

Rated data acc. to IEC

tested acc. to standard	IEC 60664-1 IEC 61984
Rated current, min. number of poles (Tu=20°C)	10 A
Rated current, max. number of poles (Tu=20°C)	10 A
Rated current, min. number of poles (Tu=40°C)	9 A
Rated current, max. number of poles (Tu=40°C)	8,5 A
Rated voltage for surge voltage class / pollution degree II/2	250 V
Rated voltage for surge voltage class / pollution degree III/2	125 V
Rated voltage for surge voltage class / pollution degree III/3	80 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	2,5 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2	2,5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	2,5 kV
Short-time withstand current resistance	3 x 1s with 77 A

Rated data acc. to CSA

Rated voltage (Use group B / CSA)	150 V
Rated current (Use group B / CSA)	5 A

Rated data acc. to UL 1059

Rated voltage (Use group B / UL 1059)	150 V
Rated current (Use group B / UL 1059)	10 A

Packing

Packaging	Box
VPE length	338 mm
VPE width	130 mm
VPE height	27 mm

Important note

IPC conformity

Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Notes

Additional variants on request

Gold-plated contact surfaces on request

Spacing between rows: see hole layout

Rated current related to rated cross-section & min. No. of poles.

Diameter of solder eyelet D = 1.3+0.1 mm

P on drawing = pitch

Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

For additional mechanical support for male connectors with screw flange (…F), we recommend an additional cable gland with fastening screws (sheet metal screw ISO 1481-ST 2.2x4.5 C or ISO 7049-ST 2.2x4.5 C – see Accessories). Cable gland only permitted before soldering.

In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load

Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
