SAIL-M12BG-2SD3.0UBL
Product image
SAIL-M12BG-2SD3.0UBL
Detailed drawing
Straight socket
SAIL-M12BG-2SD3.0UBL
Pole scheme
SAIL-M12BG-2SD3.0UBL

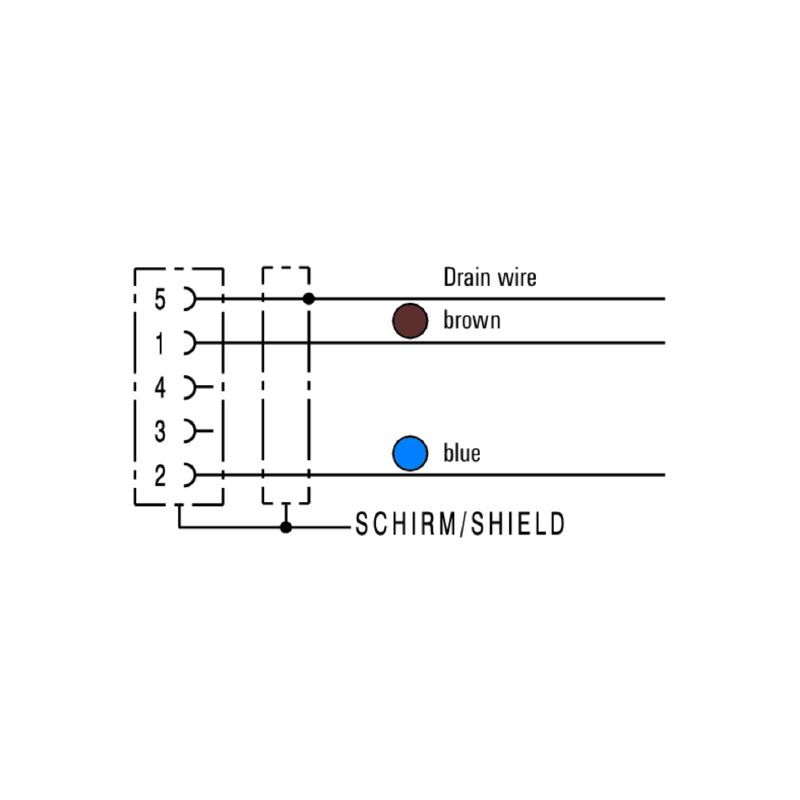

Wiring diagram
SAIL-M12BG-2SD3.0UBL
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BG-2SD3.0UBL

Sensor/actuator line, One end without connector, M12, Number of poles : 2, 3 m, Female socket, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Tuotteen tunnus 3108000300
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 7 Samankaltaiset tuotteet 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 2, 3 m, Female socket, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Order No.
3108000300
Type
SAIL-M12BG-2SD3.0UBL
GTIN (EAN)
4099987808477
Qty.
1 items

Dimensions and weights

Net weight
108 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1

Technical specifications for cable

Aderquerschnitt
0,34 mm²
Beidraht-Querschnitt
0,25 mm²
Beschleunigung
5 m/s²
Beständighet mot svetsgnistor
No
Biegeradius min., bewegt
10 x cable diameter
Biegeradius, min., fest verlegt
5 x cable diameter
Biegezyklen
3 Mio
Cable capacity
<200 pF/m
Colour coding
brown
blue
Drain wire integrated
Yes
Flammwidrigkeit
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-1-2
Geschirmt
Yes
Geschwindigkeit
3,33 m/s
Guaina secondo UL AWM Style
20549 (80 °C / 300 V)
Halogene
No
Hidrolízis és mikróba-ellenálló
Yes
Hybrid cable
No
Isolation
PP
Isolationsspannung
500 V AC / 750 V DC
Kabelinduktivität
<1 μH/m
Kabellänge
3 m
Length of torsion
1 m
Longitud del conductor configurable
No
Mantelfarbe
blue (RAL 5015)
Mantelmaterial
PUR
Number of poles
2
Outside diameter
4.6 mm ± 0.2 mm
Resistant to welding beads
No
sans LABS
Yes
Schleppkettentauglichkeit
Yes
Sheath material hygroscopic
No
Temperature range, moving
-25...80 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
360 °/m
UL AWM 방식 규격 코어
10493 (80 °C / 300 V)
Zugfestigkeit
15 N
Ölbeständigkeit
in accordance with IEC 60811:404
Облучение с перекрестными связями
No

General technical data

AF size
12 mm
Coding
A-coded
Connection thread
M12
Contact material
CuZn35PB2
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
60 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
IP69
when screwed in
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Version
Female socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
60 V

General standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
connector, M12, A-coded, Number of poles: 2, female contact, straight, shielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
