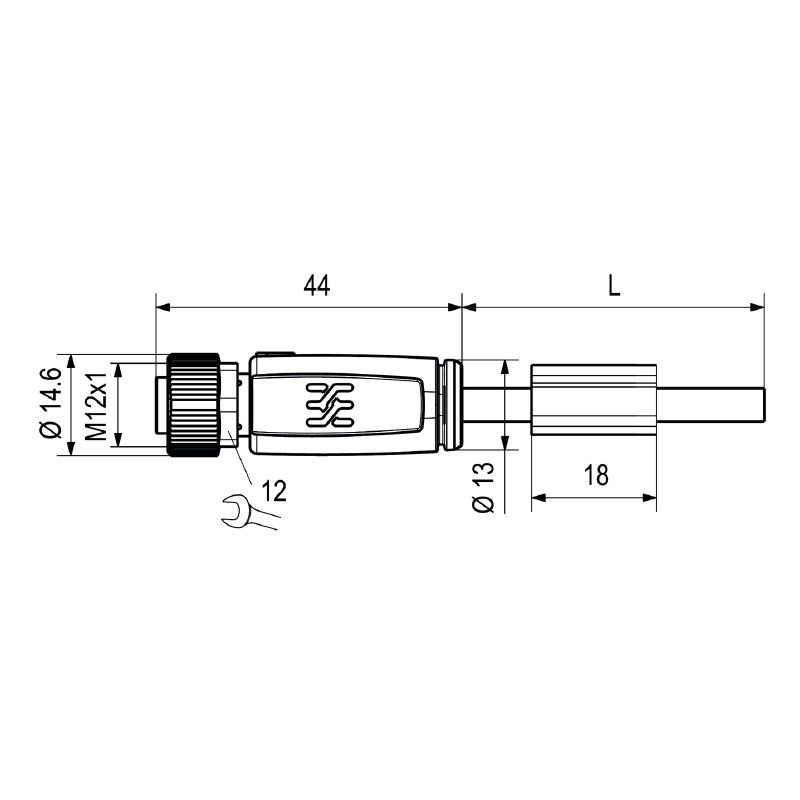

SAIL-M12BG-4-2.0TOV

Sensor/actuator line, M12, Number of poles : 4, 2 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Tuotteen tunnus 2812520200

Version	Sensor/actuator line, M12, Number of poles : 4, 2 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.	2812520200
Type	SAIL-M12BG-4-2.0TOV
GTIN (EAN)	4064675342984
Qty.	1 items

Net weight

110 g

REACH SVHC	Lead 7439-92-1
SCIP	bd63baef-8092-4596-90c7-5b4daa22710b

Product type	Sensor/actuator line
Sheathing colour	orange

Bending cycles	10 Mio
Bending radius, min., moving	7.5 x cable diameter
Bending radius, min., stationary	4 x cable diameter
Cable length	2 m
Colour coding	brown blue black white
Core cross-section	0,34 mm²
Core in accordance with UL AWM style	10995 (80 °C / 300 V)
Halogen	No
Irradiation crosslinked	No
LABS-free	Yes
Number of poles	4
Outer cladding in accordance with UL AWM style	20233 (80 °C / 300 V)
Outside diameter	4.9 mm ± 0.2 mm
Resistant to welding beads	Yes
Sheath material	PUR
Sheathing colour	orange
Shielded	No
Suitable for cable carriers	Yes
Temperature range, moving	-25...80 °C
Temperature range, stationary	-40...80 °C
Torsion resistance	360 °/m
Welding spark resistance	Yes

AF size	12 mm
Coding	A-coded
Connection thread	M12
Contact surface	Gold-plated
Housing main material	PUR
LED	No
Pollution severity	3
Protection degree	IP65 IP66 IP67 IP68 when screwed in
Rated current	4 A
Rated voltage	24 V
Temperature range of housing	-25…+85 °C
Version	Female socket, straight

Rated voltage

24 V

Plug left

M12, A-coded, IP68, male contact, straight, Plastic, LED
