SAIL-M12BG-5-15U
SAIL-M12BG-5-15U
Dimensioned drawing
Straight socket
SAIL-M12BG-5-15U
Pole scheme
Socket
SAIL-M12BG-5-15U
Wiring diagram
SAIL-M12BG-5-15U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BG-5-15U

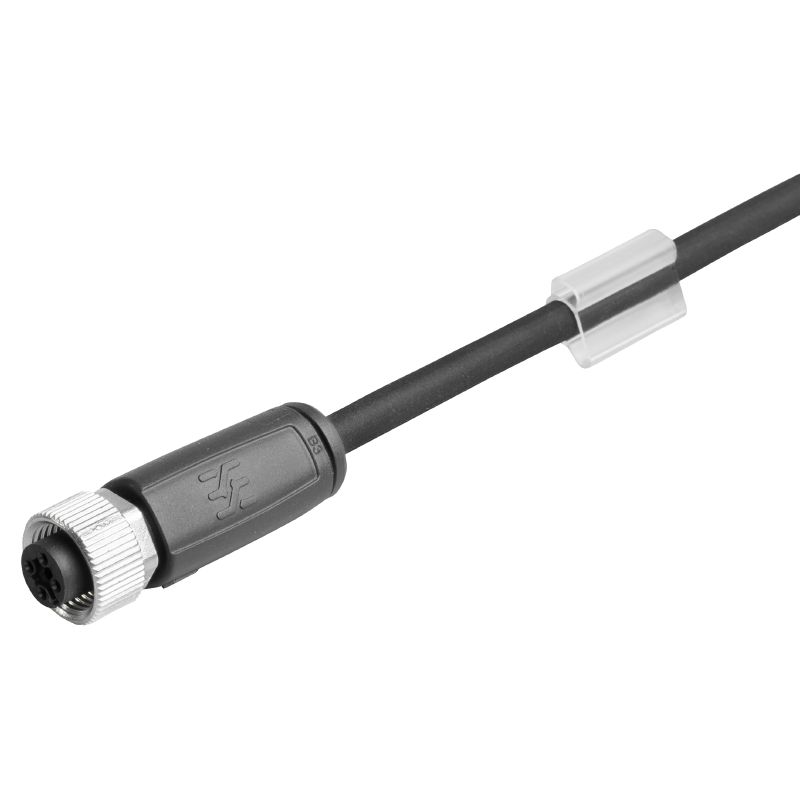

Sensor/actuator line, One end without connector, M12, Number of poles : 5, 15 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Tuotteen tunnus 9457911500
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 7 Samankaltaiset tuotteet 19
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 5, 15 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
9457911500
Type
SAIL-M12BG-5-15U
GTIN (EAN)
4032248799725
Qty.
1 items

Dimensions and weights

Net weight
548 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Außendurchmesser
4.7 mm ± 0.15 mm
Bending cycles
12 Mio
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
15 m
Colour coding
brown
white
blue
black
grey
Configurable cable length
No
Core cross-section
0,34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Délka krutu
1 m
Halogen
No
Hybrid cable
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
LABS-free
Yes
Number of poles
5
Number of wires
5
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
3,33 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
180 °/m
Welding spark resistance
No

General technical data

Cicli di inserimento
≥ 100
Coding
A-coded
Connection thread
M12
Contact material
Copper alloy
Contact surface
Gold-plated
Corriente nominal
4 A
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal voltage
60 V
Taille de clé
12 mm
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Version
Female socket, straight
Védelmi osztály
IP65
IP66
IP67
IP68
when screwed in
Момент затяжки
M12: 0.8 - 1.2 Nm
오염 심각도
3

Electrical properties

Isolationswiderstand
108 Ω
Nennspannung
60 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, Number of poles: 5, female contact, straight, plug, unshielded

Plug, right

Plug right
Free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
