SAIL-M12GM12G-L-5.0PGR
SAIL-M12GM12G-L-5.0PGR
Dimensioned drawing
SAIL-M12GM12G-L-5.0PGR
Dimensioned drawing
SAIL-M12GM12G-L-5.0PGR
Pole scheme
Plug
SAIL-M12GM12G-L-5.0PGR
Pole scheme
Socket
SAIL-M12GM12G-L-5.0PGR
Wiring diagram
SAIL-M12GM12G-L-5.0PGR
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12GM12G-L-5.0PGR

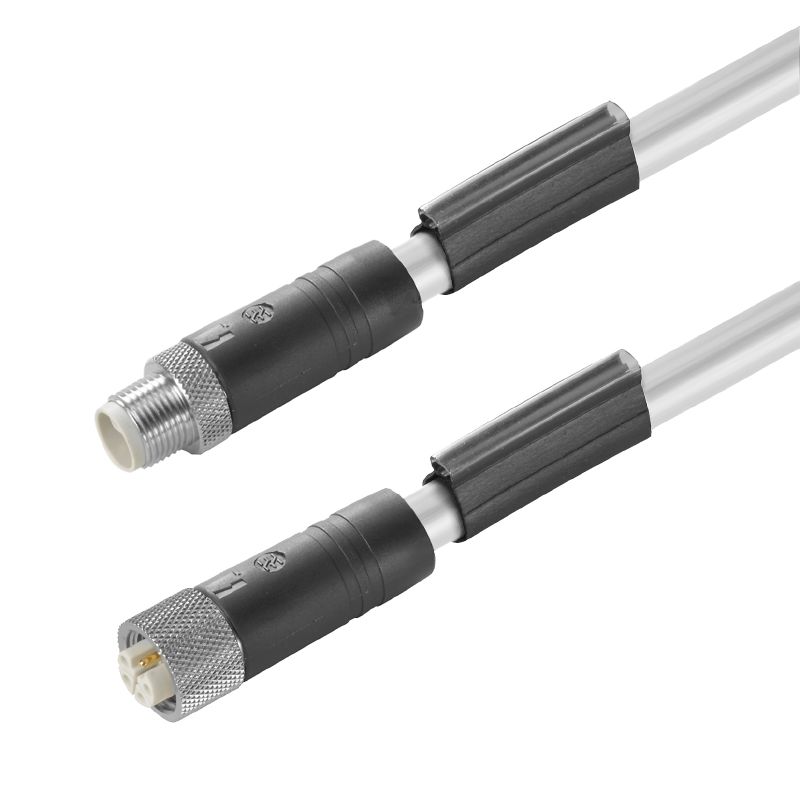

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 5, 5 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Tuotteen tunnus 2455260500
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance Datos técnicos del cable Datos técnicos generales Electrical properties General standards Стандарты Plug, left Plug, right Classifications

Approvals

Zulassungen
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E257571

General ordering data

Ausfuehrung
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 5, 5 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Best.-Nr.
2455260500
Type
SAIL-M12GM12G-L-5.0PGR
GTIN (EAN)
4050118470307
Qty.
1 items

Dimensions and weights

Net weight
300 g

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Datos técnicos del cable

Acceleration
5 m/s²
Außendurchmesser
8 mm ± 0.2 mm
Bending cycles
10 Mio
Bending radius, min., moving
7,5 x diametro cavo
Bending radius, min., stationary
4 x diametro cavo
Cable length
5 m
Colour coding
brązowy
biały
niebieski
czarny
różowy
Configurable cable length
Nie
Core cross-section
1,5 mm²
Halogen
No
Insulation
PP
Materiál pláště
PUR
Odolnost vůči jiskrám ze sváření
No
Polzahl
5
Schweißperlenfest
No
Sheathing colour
grey
Shielded
No
Speed
5 m/s
Suitable for cable carriers
Yes
Temperaturbereich, bewegt
-30...80 °C
Temperature range, stationary
-40...80 °C
Vnější potah v souladu se stylem UL AWM
20939 (80 °C / 600 V)
Zesítěné vyzařování
No

Datos técnicos generales

Anschlussgewinde
M12 / M12
Anzugsdrehmoment
M12: 0,8 - 1,2 Nm
Ausführung
Mâle, droit - Femelle, droite
Codierung
L-coded
gebrückt
No
Gehäusebasismaterial
PUR
Isolationswiderstand
108 Ω
Kontaktoberfläche
Gold-plated
LED
No
Nennspannung
50 V
Nennstrom
16 A
Schutzart
IP65
IP67
when screwed in
Steckzyklen
≤ 100
Temperaturbereich Gehäuse
-40 … +85 ° C
Verschmutzungsgrad
3

Electrical properties

Isolationswiderstand
108 Ω
Nennspannung
50 V

General standards

Certificate no. (cULus)
E257571
Connector standard
IEC 61076-2-111

Стандарты

Connector standard
IEC 61076-2-111

Plug, left

Plug left
M12, L-coded, IP67, male contact, straight, Plastic, unshielded

Plug, right

Stecker rechts
M12, L-coded, IP67, female contact, straight, Plastic, unshielded

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
