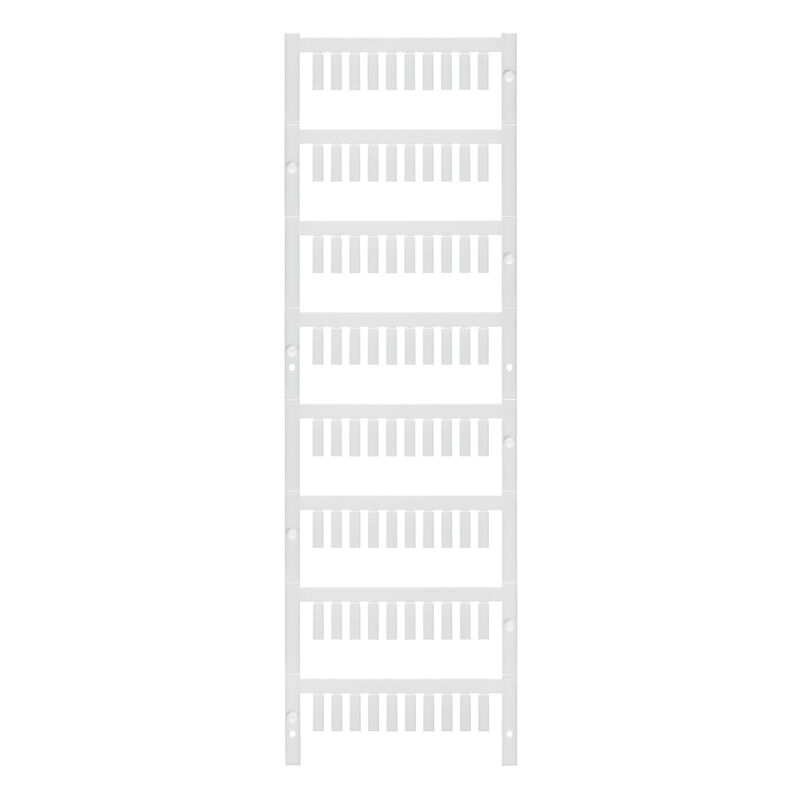

SFR 2/12 MC SDR

SFR 2/12 MC SDR

SlimFix R, Conductor and cable markers, 2.2 - 2.9 mm, 12 x 5.8 mm, To customer specification

Produkt ID 1318780000
Download datablad Product Downloads Engineering-support
Anvendte produkter 3
Osvědčení General ordering data Dimensions and weights Teploty Environmental Product Compliance General data Conductor and cable markers Klasifikace

Osvědčení

ROHS
Shoda

General ordering data

Version
SlimFix R, Conductor and cable markers, 2.2 - 2.9 mm, 12 x 5.8 mm, To customer specification
Order No.
1318780000
Type
SFR 2/12 MC SDR
GTIN (EAN)
4050118179583
Množství
80 ks

Dimensions and weights

Height
12 mm
Výška (v palcích)
0,472 inch
Width
5,8 mm
Šířka (v palcích)
0,228 inch
Nettogewicht
0,173 g

Teploty

Operating temperature range
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Ne SVHC nad 0,1 wt%
Uhlíková stopa výrobku
  • Kolébka k bráně:
    0.003 kg CO2 eq.

General data

Advice label
Colour based on customer requirements (Please send M-Print PRO file)
Basic material
Polyamide 66
Colour
To customer specification
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Number of markers per combination
1 MultiCard = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Number per sheet
80
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
Printed characters
Requires M-Print PRO File
Size of labelling field
12 x 3.2 mm
Type of printing
To customer specification
UL 94 flammability rating
V-2
Width
5,8 mm

Conductor and cable markers

Conductor cross-section, max.
1,5 mm²
Conductor cross-section, min.
0,75 mm²
Conductor O.D.
2.2 - 2.9 mm
Conductor O.D., max.
2,9 mm
Conductor O.D., min.
2,2 mm
Cross-section for connected wire
0.75 - 1.5 mm²
Halogen
No

Klasifikace

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
