TFIP 24-240VUC 1CO ON
TFI-SERIES, On-delay timing relay, Number of contacts: 1, CO contact, AgNi, Rated control voltage: 24...240 V UC -15 % / +10 %, Continuous current: 8 A, PUSH IN
Tuotteen tunnus
2898340000
Ominaisuudet
| Version | TFI-SERIES, On-delay timing relay, Number of contacts: 1, CO contact, AgNi, Rated control voltage: 24...240 V UC -15 % / +10 %, Continuous current: 8 A, PUSH IN |
| Order No. | 2898340000 |
| Type | TFIP 24-240VUC 1CO ON |
| GTIN (EAN) | 4064675903673 |
| Qty. | 1 items |
| Depth | 60 mm |
| Depth (inches) | 2,362 inch |
| Height | 87 mm |
| Height (inches) | 3,425 inch |
| Width | 17,5 mm |
| Width (inches) | 0,689 inch |
| Net weight | 999 g |
| Storage temperature | -25 °C...70 °C |
| Operating temperature | -25 °C...55 °C |
| Humidity | 15…85 % rel. humidity, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Rated control voltage | 24...240 V UC -15 % / +10 % |
| Power rating |
4 VA
1.5 W |

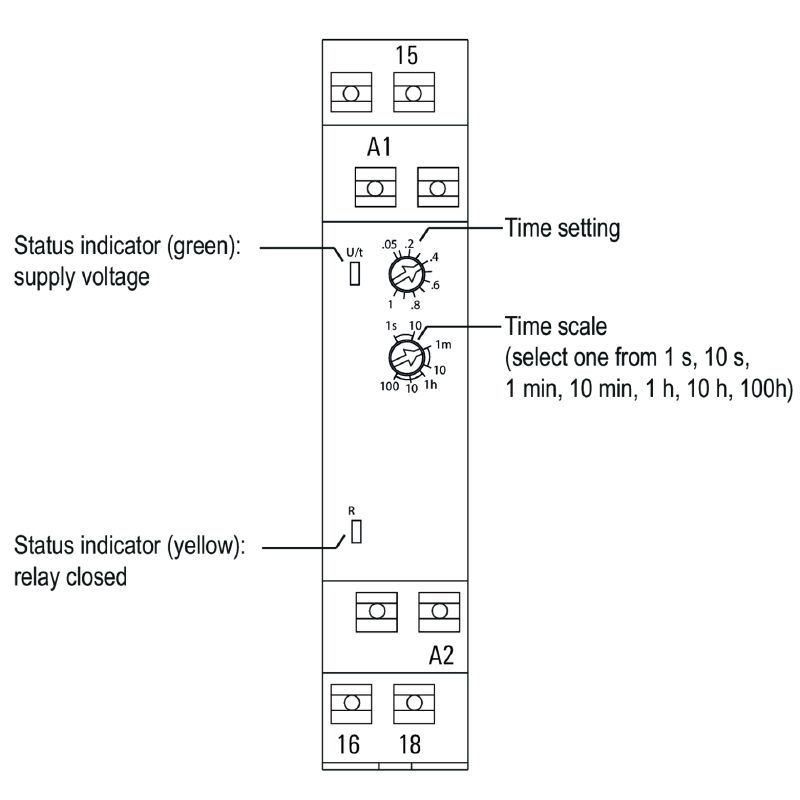

| Status indicator |
LED green (U/t): flashes when time runs, lights permanently with supply voltage applied
LED yellow (R): relay closed |
| Time ranges |
0.05 s - 1 s
0.5 s - 10 s 3 s - 60 s 30 s - 10 min 3 min - 1 h 30 min - 10 h 5 h - 100 h |
| Setting tolerance | 5 % |
| Max. reset time after voltage interruption | 100 ms |
| Basic accuracy |
±6% (of scale-end value, for time range 0.05 s - 1 s)
±1% (of scale-end value, for all other time ranges) |
| Min. pulse duration | 100 ms |
| Repeat accuracy | <0.5 % or ±5 ms |
| Rated switching voltage | 250 V AC |
| Continuous current | 8 A |
| Max. switching voltage, AC | 250 V |
| Max. switching voltage, DC | 30 V |
| Min. switching power |
10 mA @ 12 V
100 mA @ 5 V |
| AC switching capacity (resistive), max. | 2000 VA |
| DC switching capacity (resistive), max. | 240 W |
| Contact type | 1 CO contact (AgNi) |
| Electrical service life, DC coil | 2x105 switching cycles (1000 VA ohm load) |
| Mechanical service life | 20 x 106 switching cycles |
| Design | Installation housing; 1TE |
| Suitable for front mounting | No |
| Rail | TS 35 |
| Test button available | No |
| Mechanical switch position indicator | No |
| Colour | black |
| UL 94 flammability rating | V-0 |
| UL94 flammability rating component |
|
| Resistance to vibration EN 61812-1 |
10 Hz...60 Hz: 0.15 mm
60 Hz...150 Hz: 2 g |
| Rated voltage | 300 V |
| Pollution severity | 2 |
| Surge voltage category | III |
| Clearance and creepage distances for control side - load side | ≥ 3 mm |
| Dielectric strength for control side - load side | 1.6 kV |
| Impulse withstand voltage | 4 kV |
| Protection degree | IP20 |
| Certificate no. (cULus) | E360862 |
| Wire connection method | PUSH IN |
| Stripping length, rated connection | 8 mm |
| Clamping range, rated connection | 2,5 mm² |
| Clamping range, min. | 0,2 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire connection cross section AWG, min. | AWG 24 |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire cross-section, solid, min. | 0,2 mm² |
| Wire cross-section, solid, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,2 mm² |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,25 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0,25 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 1,5 mm² |
| Blade size | 0.6 x 3.5 mm |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_94020) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_296249) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2898340000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2898340000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2898340000&norm=0) |
| User Documentation |
[Beschreibung der Zeitfunktionen - Deutsch](https://mdcop.weidmueller.com/mediadelivery/asset/900_97435)
[Declaration of timing functions - English](https://mdcop.weidmueller.com/mediadelivery/asset/900_97445) [Beipackzettel / Package Insert – multilingual](https://mdcop.weidmueller.com/mediadelivery/asset/900_297851) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001439 |
| ETIM 7.0 | EC001439 |
| ETIM 8.0 | EC001439 |
| ETIM 9.0 | EC001439 |
| ECLASS 9.0 | 27-37-16-05 |
| ECLASS 9.1 | 27-37-16-05 |
| ECLASS 10.0 | 27-37-16-05 |
| ECLASS 11.0 | 27-37-16-05 |
| ECLASS 12.0 | 27-37-16-05 |
| ECLASS 13.0 | 27-37-16-05 |
| ECLASS 14.0 | 27-37-16-05 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E360862 |
