Ominaisuudet
| Order No. | 2904480000 |

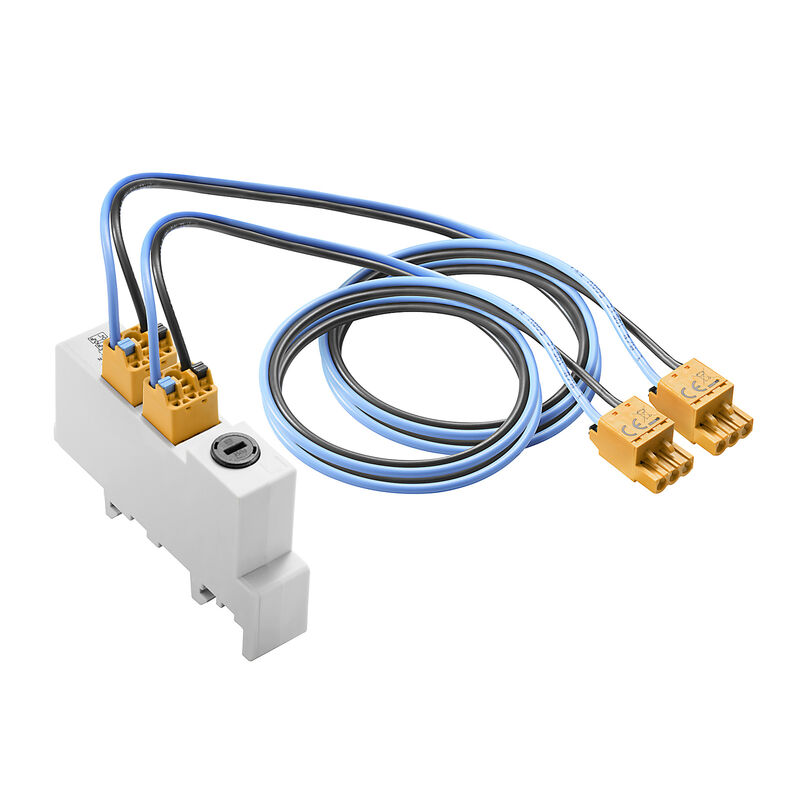

| Type | V-ZPA FUSE HOLDER |
| GTIN (EAN) | 4099986010383 |
| Qty. | 1 items |
| Depth | 65,5 mm |
| Depth (inches) | 2,579 inch |
| Height | 95,2 mm |
| Height (inches) | 3,748 inch |
| Width | 18,5 mm |
| Width (inches) | 0,728 inch |
| Net weight | 144 g |
| Operating temperature | -25 °C...55 °C |
| Humidity | 5 - 95% rel. humidity |
| Colour | grey |
| Operating altitude | ≤ 4000 m |
| Protection degree | IP00 |
| Rail | Busbar |
| Pollution severity | 2 |
| Fuse | 6.3 A |
| Rated voltage (AC) | 240 V |
| Short-circuit current rating ISCCR | 25 kA |
| Voltage type | AC |
| Wire connection method | PUSH IN |
| Wire cross-section, solid, max. | 2,5 mm² |
| Approval/Certificate/Document of Conformity | [EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_295937) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_310606) |
| User Documentation | [Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_295930) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ECLASS 9.0 | 27-13-08-05 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| ROHS | Conform |
On lisävaruste
-
Tuotteen tunnus:2830960000VPE:1 items
Surge voltage arrester, Low voltage, Leakage-current-free, TN-C-S, TN-S, TT, IT with N
-
Tuotteen tunnus:2830930000VPE:1 items
Surge voltage arrester, Low voltage, Leakage-current-free, TN-C
-
Tuotteen tunnus:2830970000VPE:1 items
Surge voltage arrester, Low voltage, Leakage-current-free, TN-C-S, TN-S, TT, IT with N
-
Tuotteen tunnus:2830940000VPE:1 items
Surge voltage arrester, Low voltage, Leakage-current-free, TN-C
-
Tuotteen tunnus:2830980000VPE:1 items
Surge voltage arrester, Low voltage, Leakage-current-free, TN-C-S, TN-S, TT, IT with N
-
Tuotteen tunnus:2830950000VPE:1 items
Surge voltage arrester, Low voltage, Leakage-current-free, TN-C
-
Tuotteen tunnus:2830920000VPE:1 items
Surge voltage arrester, Low voltage, Leakage-current-free, TN-C-S, TN-S, TT, IT with N
-
Tuotteen tunnus:2830890000VPE:1 items
Surge voltage arrester, Low voltage, Leakage-current-free, TN-C
-
Tuotteen tunnus:2830910000VPE:1 items
Surge voltage arrester, Low voltage, Leakage-current-free, TN-C-S, TN-S, TT, IT with N
-
Tuotteen tunnus:2830880000VPE:1 items
Surge voltage arrester, Low voltage, Leakage-current-free, TN-C
-
Tuotteen tunnus:2830900000VPE:1 items
Surge voltage arrester, Low voltage, Leakage-current-free, TN-C-S, TN-S, TT, IT with N
-
Tuotteen tunnus:2830870000VPE:1 items
Surge voltage arrester, Low voltage, Leakage-current-free, TN-C
