Ominaisuudet

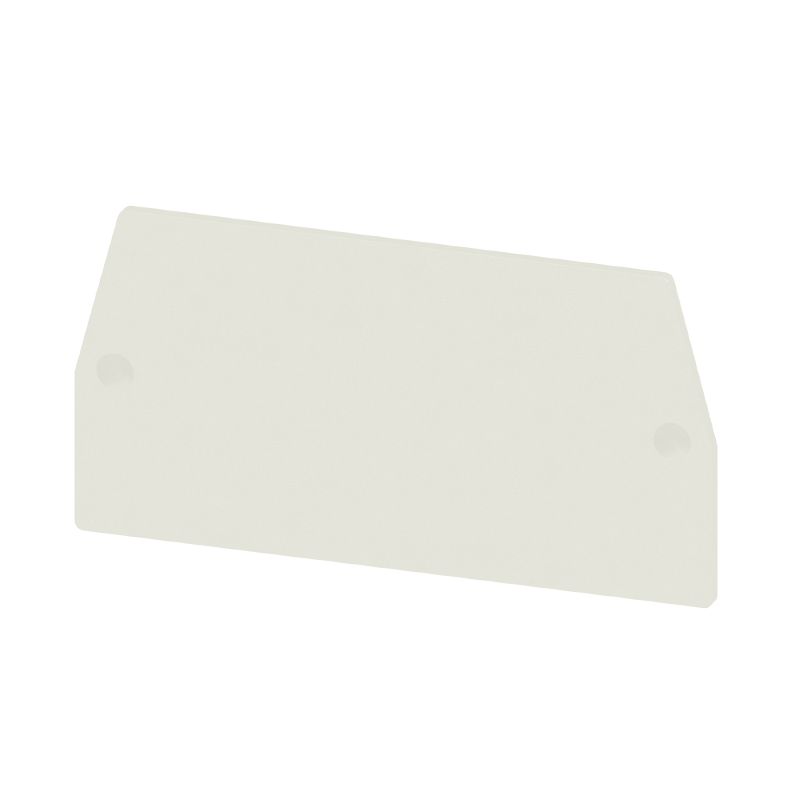

| Version | End and partition plate for terminals, grey, Height: 68.5 mm, Width: 1.5 mm, V-0, Wemid |
| Order No. | 2868500000 |
| Type | WAP WTL 6 GR |
| GTIN (EAN) | 4064675619574 |
| Qty. | 20 items |
| Depth | 35,2 mm |
| Depth (inches) | 1,386 inch |
| Height | 68,5 mm |
| Height (inches) | 2,697 inch |
| Width | 1,5 mm |
| Width (inches) | 0,059 inch |
| Net weight | 3,917 g |
| Continuous operating temp., min. | −60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | grey |
| UL 94 flammability rating | V-0 |
| Snap-on | Yes |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_300930) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2868500000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-33 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| Approvals |  |
| ROHS | Conform |
