Ominaisuudet

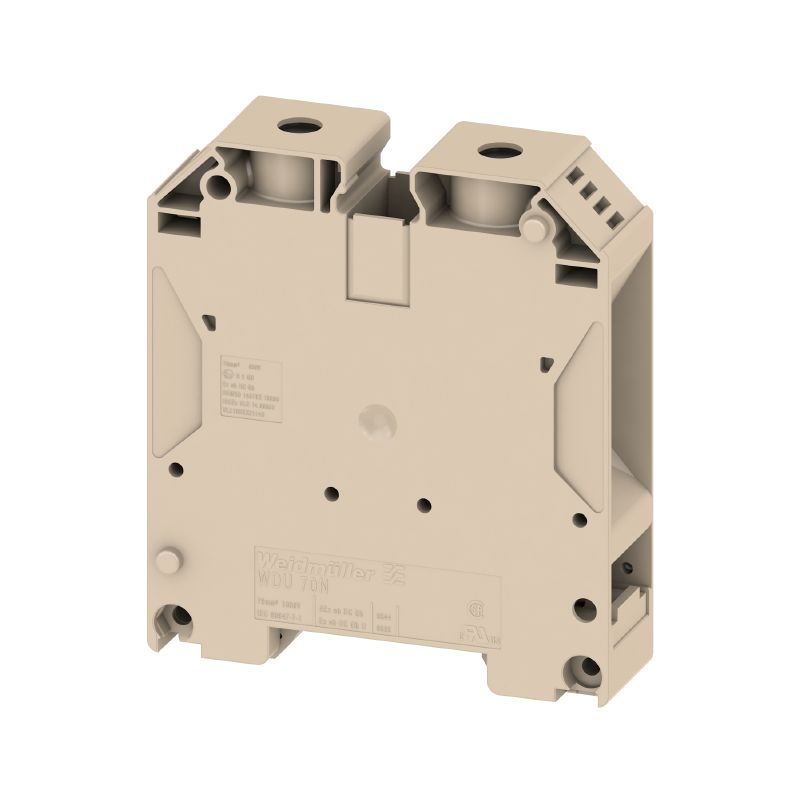

| Version | Feed-through terminal block, Screw connection, dark beige, 70 mm², 192 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C |
| Order No. | 1393420000 |
| Type | WDU 70N/35 IR |
| GTIN (EAN) | 4050118495089 |
| Qty. | 10 items |
| Depth | 85 mm |
| Depth (inches) | 3,346 inch |
| Depth including DIN rail | 86 mm |
| Height | 75 mm |
| Height (inches) | 2,953 inch |
| Width | 20,5 mm |
| Width (inches) | 0,807 inch |
| Net weight | 119,233 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | −60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version |
Screw connection
for screwable cross-connection in closed state |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | Yes |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Number of similar terminals | 1 |
| Open sides | closed |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Blade size | TX 40 |
| Clamping range, max. | 95 mm² |
| Clamping range, min. | 16 mm² |
| Clamping screw | M 8 |
| Connection cross-section, stranded, max. | 95 mm² |
| Connection cross-section, stranded, min. | 16 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B11 |
| Number of connections | 2 |
| Stripping length | 22 mm |
| Tightening torque, max. | 12 Nm |
| Tightening torque, min. | 8 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 0 |
| Wire connection cross section AWG, min. | AWG 6 |
| Wire connection cross section, finely stranded, max. | 70 mm² |
| Wire connection cross section, finely stranded, min. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 70 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 50 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 16 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 16 mm² |
| Installation advice | Direct mounting |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 0 |
| Wire connection cross section AWG, min. | AWG 6 |
| Rated cross-section | 70 mm² |
| Rated voltage | 1 000 V |
| Rated DC voltage | 1 000 V |
| Rated current | 192 A |
| Current at maximum wires | 232 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0,17 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 6,14 W |
| Pollution severity | 3 |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 0 AWG |
| Conductor size Factory wiring min. (cURus) | 6 AWG |
| Conductor size Field wiring max. (cURus) | 0 AWG |
| Conductor size Field wiring min. (cURus) | 6 AWG |
| Current size C (cURus) | 150 A |
| Voltage size C (cURus) | 600 V |
| Approval/Certificate/Document of Conformity |
[IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_39462)
[ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_39463) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61654) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1393420000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1393420000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1393420000&norm=0) |
| User Documentation |
[NTI WDU/WPE 70N/35](https://mdcop.weidmueller.com/mediadelivery/asset/900_72413)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [Instruction](https://mdcop.weidmueller.com/mediadelivery/asset/900_97219) [Instruction](https://mdcop.weidmueller.com/mediadelivery/asset/900_150061) [User documentation WZAD](https://mdcop.weidmueller.com/mediadelivery/asset/900_184624) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| ECLASS 14.0 | 27-25-01-01 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
