Ominaisuudet
| Version | OMNIMATE Power - series WGK, Feed-through terminal, Rated cross-section: 50 mm², Wemid (PA), Direct mounting, Feed-through (bushing) |
| Order No. | 2427680000 |
| Type | WGK 50 BK BX |
| GTIN (EAN) | 4050118436679 |
| Qty. | 10 items |
| Product data |
IEC: 690 V / 150 A / 16 - 50 mm² UL: 600 V / 150 A / AWG 6 - AWG 1/0 |
| Packaging | Box |

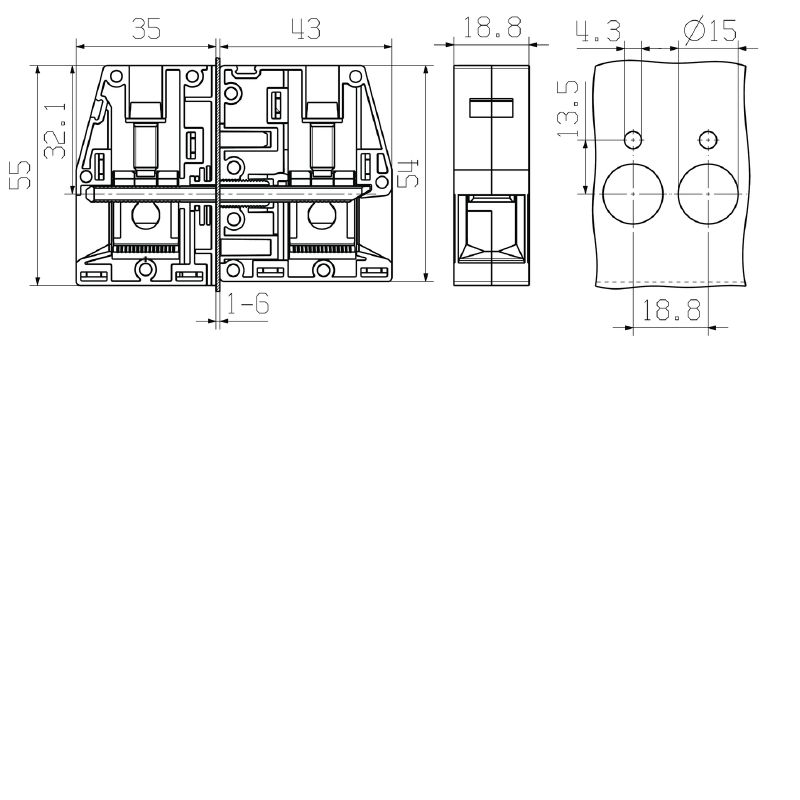

| Height | 55 mm |
| Height (inches) | 2,165 inch |
| Height of lowest version | 55 mm |
| Width | 22,8 mm |
| Width (inches) | 0,898 inch |
| Length | 18,8 mm |
| Length (inches) | 0,74 inch |
| Net weight | 101,1 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Product family | OMNIMATE Power - series WGK |
| Wire connection method | Screw connection |
| Conductor outlet direction | 180° |
| Number of poles | 1 |
| Pin series quantity | 1 |
| Fitted by customer | No |
| Screwdriver blade | 1.2 x 6.5 |
| Tightening torque, min. | 4 Nm |
| Tightening torque, max. | 5,5 Nm |
| Clamping screw | M 6 |
| Stripping length | 24 mm |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Protection degree | IP20 |
| Type of connection 1 | Clamping yoke |
| Type of connection 2 | Clamping yoke |
| Insulating material | Wemid (PA) |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| UL 94 flammability rating | V-0 |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Storage temperature, min. | −40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | −50 °C |
| Operating temperature, max. | 120 °C |
| Temperature range, installation, min. | −25 °C |
| Temperature range, installation, max. | 120 °C |
| Clamping range, min. | 10 mm² |
| Clamping range, max. | 50 mm² |
| Wire connection cross section AWG, min. | AWG 6 |
| Wire connection cross section AWG, max. | AWG 1/0 |
| Solid, min. H05(07) V-U | 16 mm² |
| Solid, max. H05(07) V-U | 16 mm² |
| Stranded, min. H07V-R | 16 mm² |
| Stranded, max. H07V-R | 50 mm² |
| Flexible, min. H05(07) V-K | 16 mm² |
| Flexible, max. H05(07) V-K | 50 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 10 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 50 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 10 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 50 mm² |
| Clampable conductor |
|
| Reference text |
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P) |
| tested acc. to standard | IEC 60664-1 |

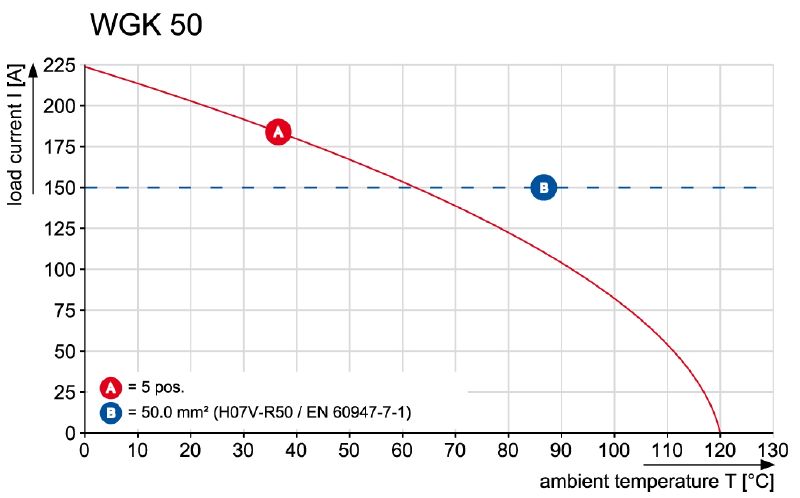

| Rated current, min. number of poles (Tu=20°C) | 150 A |
| Rated current, max. number of poles (Tu=20°C) | 150 A |
| Rated voltage for surge voltage class / pollution degree III/3 | 690 V |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 6 kV |
| Rated voltage (Use group B / CSA) | 600 V |
| Rated voltage (Use group C / CSA) | 600 V |
| Rated voltage (Use group D / CSA) | 300 V |
| Rated current (Use group B / CSA) | 150 A |
| Rated current (Use group C / CSA) | 150 A |
| Rated current (Use group D / CSA) | 10 A |
| Wire cross-section, AWG, min. | AWG 6 |
| Wire cross-section, AWG, max. | AWG 1/0 |
| Institute (cURus) | CURUS |
| Certificate No. (cURus) | E60693 |
| Rated voltage (Use group B / UL 1059) | 600 V |
| Rated voltage (Use group C / UL 1059) | 600 V |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Rated current (Use group B / UL 1059) | 150 A |
| Rated current (Use group C / UL 1059) | 150 A |
| Rated current (Use group D / UL 1059) | 10 A |
| Wire cross-section, AWG, min. | AWG 6 |
| Wire cross-section, AWG, max. | AWG 1/0 |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Packaging | Box |
| VPE length | 210 mm |
| VPE width | 99 mm |
| VPE height | 60 mm |
| Notes |
|
| Approval/Certificate/Document of Conformity | [Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_50454) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2427680000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL DRIVES EN](http://download.weidmueller.com/asset/download/file/40061)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL DRIVES DE](http://download.weidmueller.com/asset/download/file/40062) [FL_BASE_STATION_EN](http://download.weidmueller.com/asset/download/file/38194) [FL ELEVATOR EN](http://download.weidmueller.com/asset/download/file/38203) [FL POWER SUPPLY EN](http://download.weidmueller.com/asset/download/file/38213) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 6.0 | EC001283 |
| ETIM 7.0 | EC001283 |
| ETIM 8.0 | EC001283 |
| ETIM 9.0 | EC001283 |
| ECLASS 9.0 | 27-14-11-34 |
| ECLASS 9.1 | 27-14-11-34 |
| ECLASS 10.0 | 27-14-11-34 |
| ECLASS 11.0 | 27-14-11-34 |
| ECLASS 12.0 | 27-14-11-34 |
| ECLASS 13.0 | 27-14-11-34 |
| ECLASS 14.0 | 27-14-11-34 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
