ZAP/TW ZDK 2.5/3AN

ZAP/TW ZDK 2.5/3AN

Z-series, End plate, Partition plate

Tuotteen tunnus 1924910000
Lataa tietosivu Engineering Support Product Downloads
On lisävaruste 7 Samankaltaiset tuotteet 426
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data General Product images Classifications

Approvals

ROHS
Conform

General ordering data

Version
Z-series, End plate, Partition plate
Order No.
1924910000
Тип
ZAP/TW ZDK 2.5/3AN
GTIN (EAN)
4032248565436
Qty.
20 items

Dimensions and weights

Głębokość
41,5 mm
Depth (inches)
1,634 inch
Высота
92,6 mm
Высота (в дюймах)
3,646 inch
Szerokość
1,5 mm
Width (inches)
0,059 inch
Net weight
5,39 g

Temperatures

Температура хранения
-25 °C...55 °C
Температура окружающей среды
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

Состояние соответствия RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.047 kg CO2eq.

Material data

Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0

System specifications

Version
End and intermediate plate

Additional technical data

Installation advice
Direct mounting
Snap-on
Yes

General

Installation advice
Direct mounting

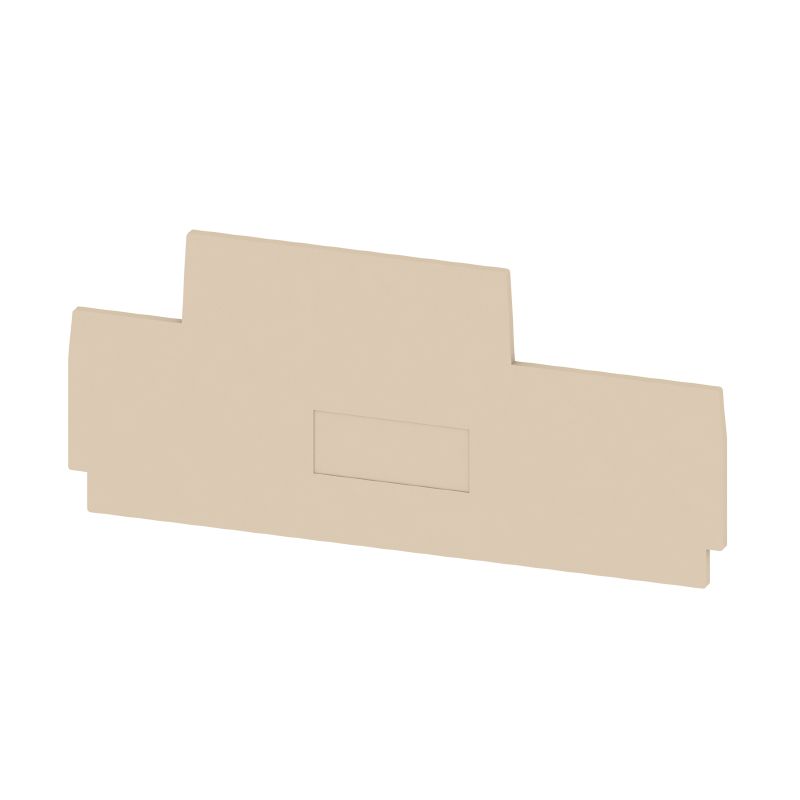

Product images

Classifications

ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
