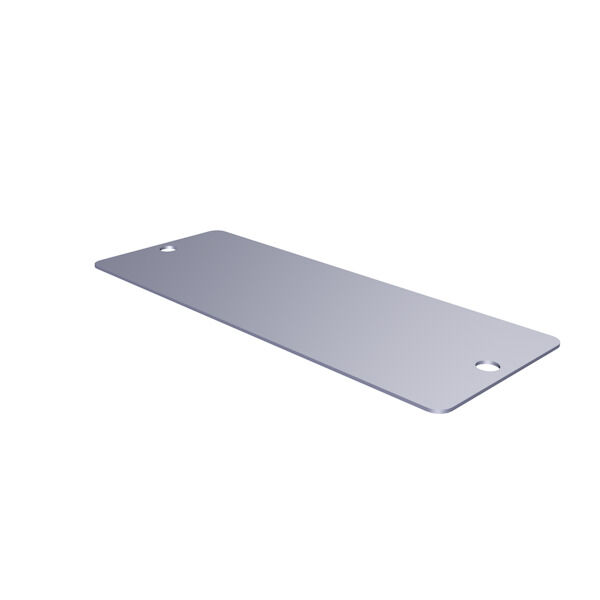

CC-M 27/70 2X3 ST

MetalliCard, Device markers, 27 x 70 mm, silver

Tuotteen tunnus 1500190000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 2 Samankaltaiset tuotteet 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Ausfuehrung
MetalliCard, Device markers, 27 x 70 mm, silver
Order No.
1500190000
Type
CC-M 27/70 2X3 ST
GTIN (EAN)
4050118309003
Qty.
80 items

Dimensions and weights

Depth
0,5 mm
Depth (inches)
0,02 inch
Height
27 mm
Height (inches)
1,063 inch
Width
70 mm
Width (inches)
2,756 inch
Net weight
6,182 g

Temperatures

Zakres temperatury stosowania
-55...130 °C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Stainless steel 1.4301
Colour
silver
Gama de temperaturas de servicio
-55...130 °C
Javasolt iparágak
Energy
Process
Jelölők száma kombinációnként
1 MetalliCard = Device markers
Número de señalizadores por unidad de embalaje
  • Form of supply:
    MetalliCard
Operating temperature range, max.
130 °C
Operating temperature range, min.
-55 °C
Printed characters
without
Tamaño del campo para rotulación
68.3 x 25.3 mm
Version
pluggable
with 3.5 mm mounting hole
Width
70 mm

Device markers

Drill-hole diameter
3 mm

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
