IE-FM6Z2LO0010MST0ST0-X
IE-FM6Z2LO0010MST0ST0-X
Detailed drawing

IE-FM6Z2LO0010MST0ST0-X

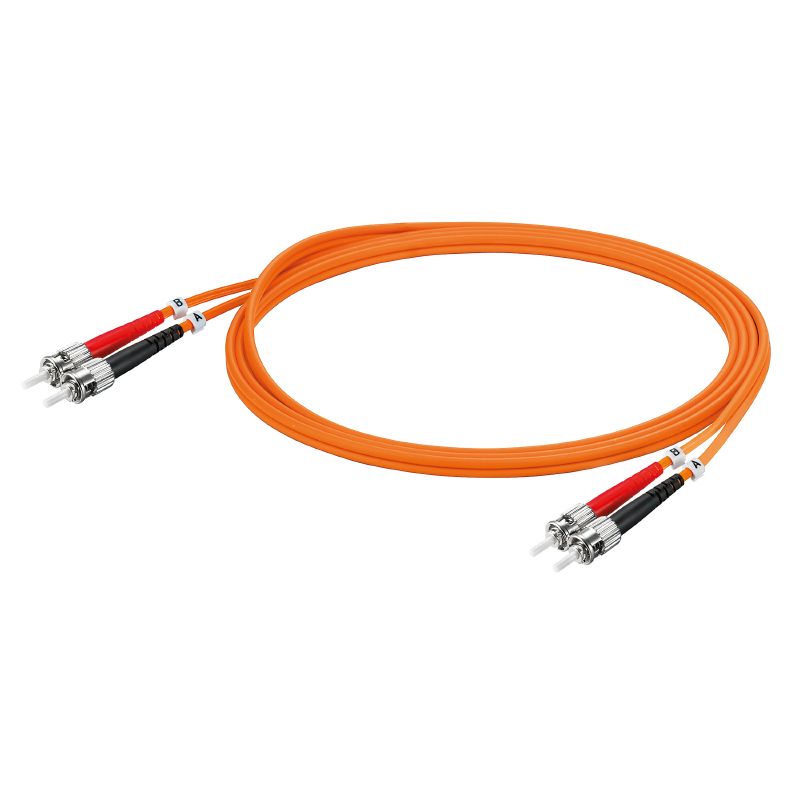

Patch cable, ST IP 20, ST IP 20, 62.5 µm, LSZH, 10 m

Produkt ID 1433980100
Download datablad Ürün İndirmleri
Aksesuarlar 2 İlgili ürünler 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards General standards Standards Fibre-optic Cable structure Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
Patch cable, ST IP 20, ST IP 20, 62.5 µm, LSZH, 10 m
Order No.
1433980100
Type
IE-FM6Z2LO0010MST0ST0-X
GTIN (EAN)
4050118242720
Qty.
1 adet

Dimensions and weights

Length
10 m
Length (inches)
393.701 inch
Net weight
150 g

Temperatures

Operating temperature
-20 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable specific standards

Specification for checking the symmetrical communication cabling
IEC 61935-3
Specification for twisted-pair device connection cables
IEC 61156-6
DIN EN 50288-4-2

General standards

커넥터 표준
IEC 60874-10

Standards

Connector standard
IEC 60874-10

Fibre-optic

Attenuation
≤ 3.0 dB/km at 850 nm
≤0.8 dB/km at 1300 nm
Bandwidth
≥ 200 MHz*km at 850 nm
≥ 600 MHz*km at 1300 nm
Fibre type
GOF
Multimode
OM1

Cable structure

Core diameter
62.5 µm
Kabeluppbyggnad
ZIPCORD
Primary coating
245 µm
Sheath diameter
2.8 * 5.7 mm
Материал оболочки
LSZH
Нормативные обозначения
I-V(ZN)H
Цвет оболочки
orange

Mechanical and material properties of cable

Halogen
No
Min. bending radius, once only
28 mm
Min. bending radius, repetitive
56 mm

Plug

Plug left
ST, IP20, male contact, straight, plug, Plastic, unshielded
Plug right
ST, IP20, male contact, straight, plug, Plastic, unshielded

Plug, left

Plug left
ST, IP20, male contact, straight, plug, Plastic, unshielded

Plug, right

Plug right
ST, IP20, male contact, straight, plug, Plastic, unshielded

Classifications

ETIM 8.0
EC002607
ETIM 9.0
EC002607
ETIM 10.0
EC002607
ECLASS 14.0
27-06-10-03
ECLASS 15.0
27-06-10-03
