SAI-H3-M12-S

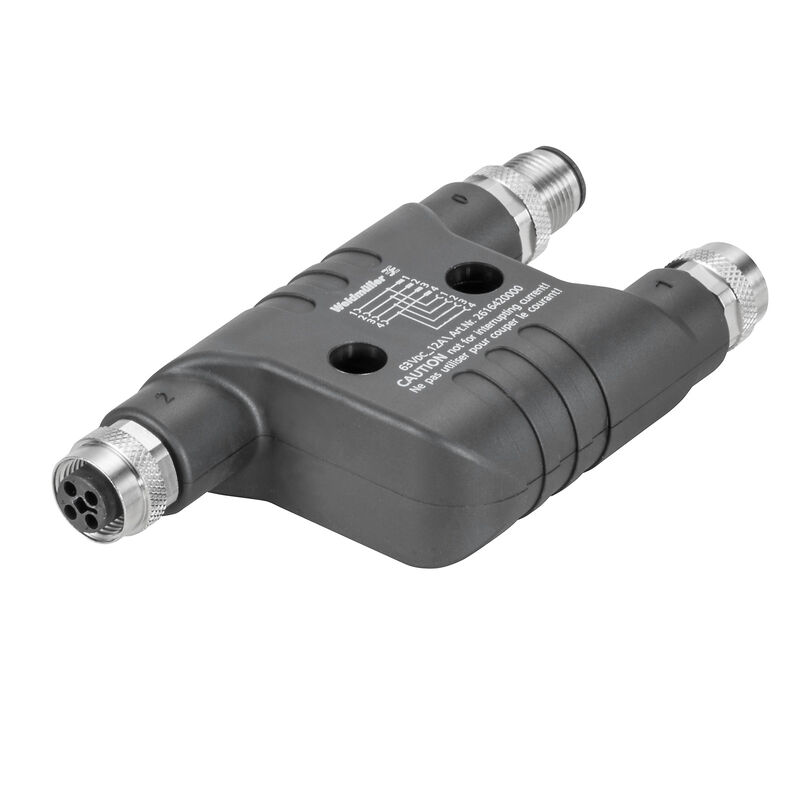

Similar to illustration
SAI-H3-M12-S

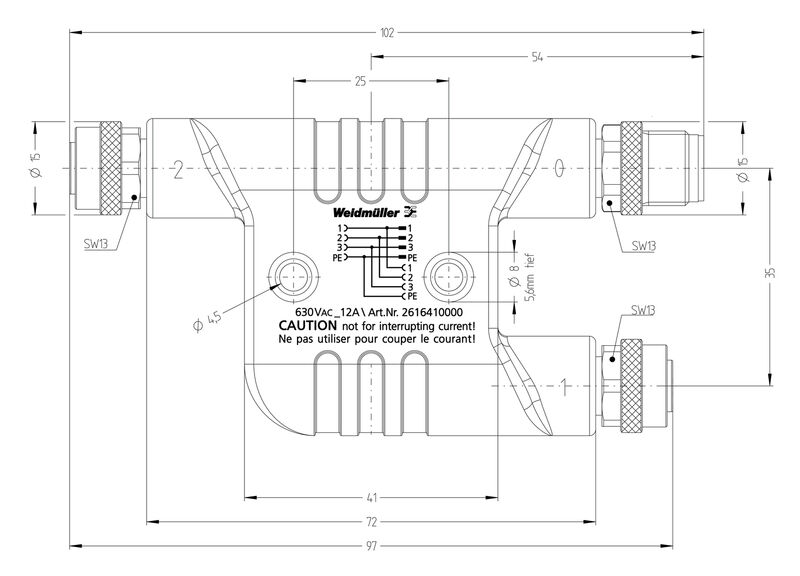

Drawing
SAI-H3-M12-S

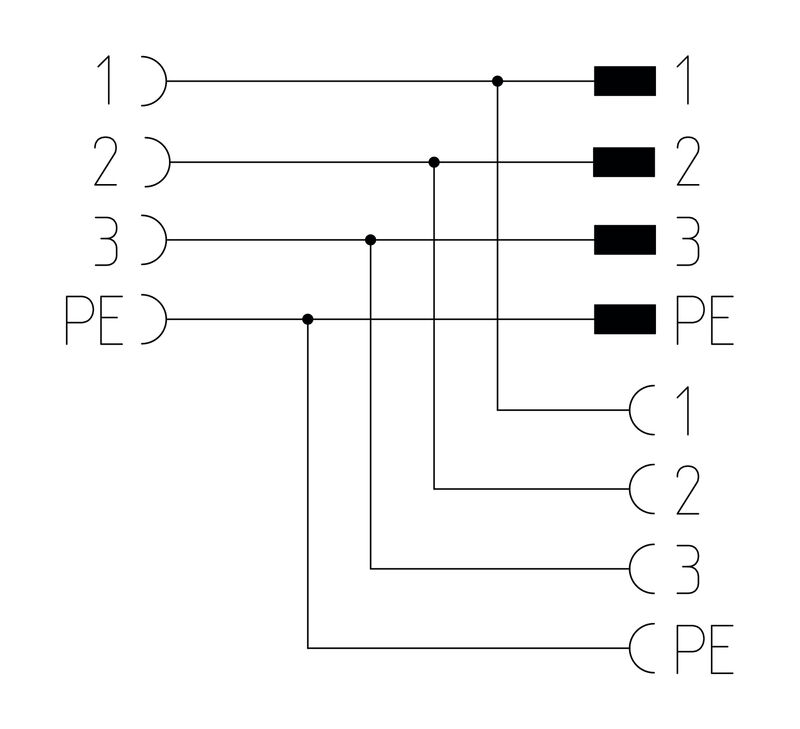

Connection diagram
SAI-H3-M12-S
Pole scheme
Socket
SAI-H3-M12-S
Pole scheme
Plug

SAI-H3-M12-S

Y connector

Tuotteen tunnus 2616410000
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 20
Zulassungen General ordering data Dimensioni e pesi Umweltanforderungen Connection data Technical data customisable plug-in connectors Standards General data Clasificaciones

Zulassungen

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conforme
UL File Number Search
[Sito web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E310075

General ordering data

Version
Y connector
Order No.
2616410000
Type
SAI-H3-M12-S
GTIN (EAN)
4050118621372
CPZ
1 Pezzo

Dimensioni e pesi

Peso netto
89,76 g

Umweltanforderungen

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
4060c755-8d0b-4d43-bdb3-4ffabe9d7497

Connection data

Group outlet - plug-in connector
M12 pin
Single outlet 1 - plug-in connector
M12 socket
Single outlet 2 - plug-in connector
M12 socket

Technical data customisable plug-in connectors

Cable gland
M 12
Coding
S-coded
Contact surface
Gold-plated
Housing main material
TPU
Insulation resistance
≥ 100 MΩ
Nominal current
12 A
Number of poles
4
Pollution severity
3
Protection degree
IP67
Shield connection
No
Temperature range of housing
-30…+90 °C

Standards

Connector standard
IEC 61076-2-111

General data

Cable gland
M 12
Coding
S-coded
Conductor O.D.
-
Connection 1
M12/M12
Connection 2
Screw
Contact surface
Gold-plated
Housing main material
TPU
Insulation resistance
≥ 100 MΩ
Nominal current
12 A
Number of poles
4
Pollution severity
3
Protection degree
IP67
Rated voltage
630 V AC
Shield connection
No
Temperature range of housing
-30…+90 °C

Clasificaciones

ETIM 8.0
EC002925
ETIM 9.0
EC002925
ETIM 10.0
EC002925
ECLASS 14.0
27-44-01-06
ECLASS 15.0
27-44-01-06
