SC-SMT 3.81/05/90G 1.5SN BK BX
Product image
SC-SMT 3.81/05/90G 1.5SN BK BX
Dimensional drawing

SC-SMT 3.81/05/90G 1.5SN BK BX

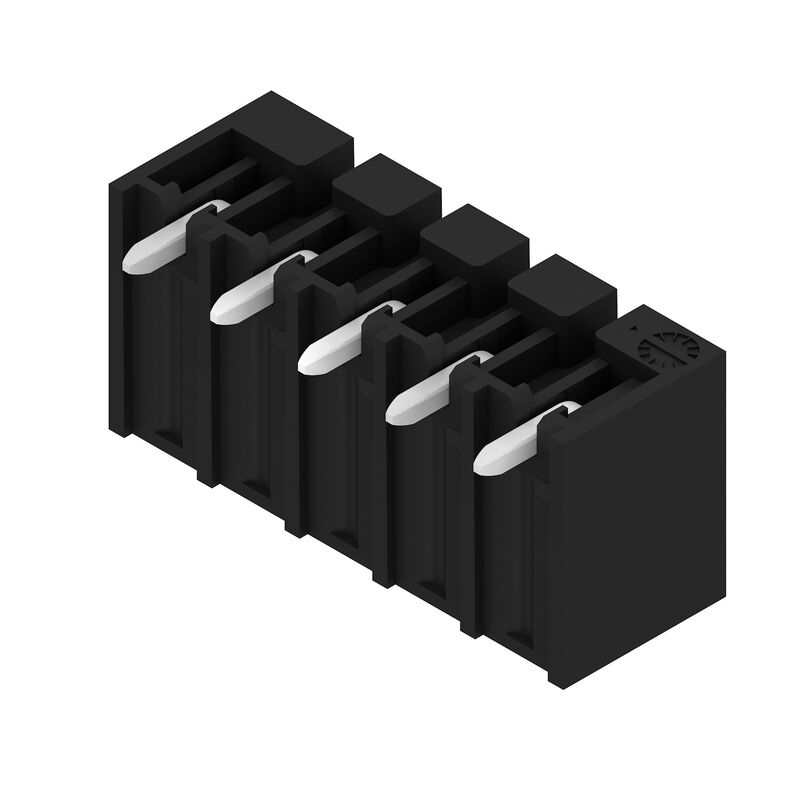

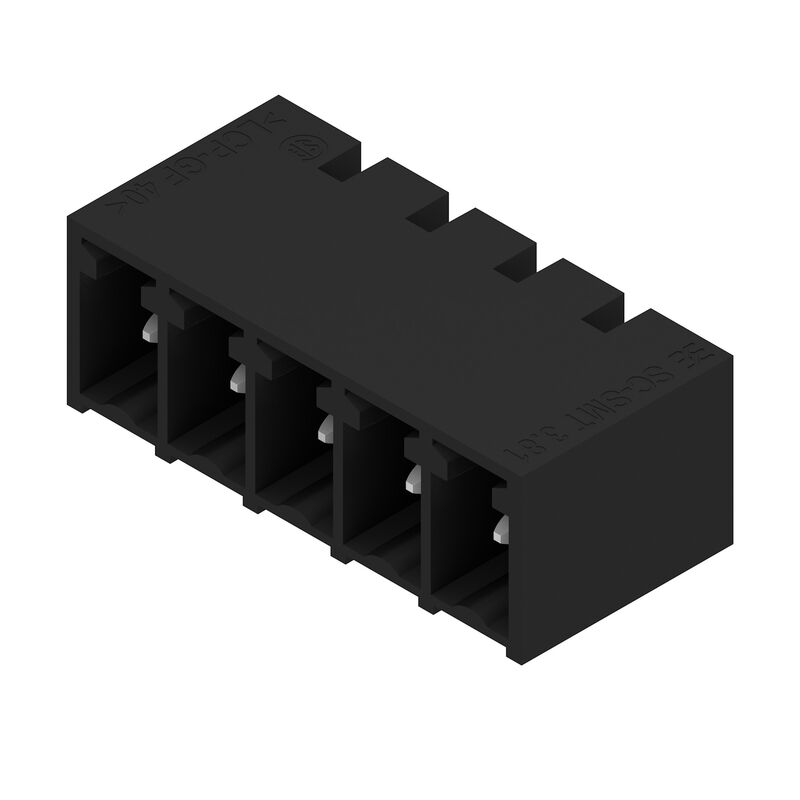

PCB plug-in connector, male header, closed side, THT/THR solder connection, 3.81 mm, Number of poles: 5, 90°, Solder pin length (l): 1.5 mm, tinned, black, Box

Produkt ID 1862990000
Download datablad Engineering-support Produktdownloads
Tilbehør 2 Er et modstykke til 1 Anvendte produkter 20
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
인증 번호(cURus)
E60693

General ordering data

Verze
PCB plug-in connector, male header, closed side, THT/THR solder connection, 3.81 mm, Number of poles: 5, 90°, Solder pin length (l): 1.5 mm, tinned, black, Box
Číslo objednávky
1862990000
Typ
SC-SMT 3.81/05/90G 1.5SN BK BX
GTIN (EAN)
4032248428090
Qty.
50 Styk
Product data
IEC: 320 V / 17.5 A
UL: 300 V / 11 A
Packaging
Box

Dimensions and weights

Hloubka
9,2 mm
Głębokość (cale)
0,362 inch
Výška
8,57 mm
Height (inches)
0,337 inch
Height of lowest version
7,07 mm
Šířka
19,74 mm
Width (inches)
0,777 inch
순중량
1,068 g

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Signal - series BC/SC 3.81
Type of connection
Board connection
Mounting onto the PCB
THT/THR solder connection
Pitch in mm (P)
3,81 mm
Raster w calach (P)
0,15 "
Outgoing elbow
90°
Number of poles
5
Number of solder pins per pole
1
Solder pin length (l)
1,5 mm
Solder pin length tolerance
0 / -0,02 mm
솔더핀 크기
d = 1.0 mm
Octagonal
Solder pin dimensions = d tolerance
0 / -0,04 mm
솔더 구멍 직경(D)
1,3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Outside diameter of solder pad
2,1 mm
Template aperture diameter
1,9 mm
L1 in mm
15,24 mm
L1 in inches
0,6 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Volume resistance
≤5 mΩ
Can be coded
Yes

Material data

絶縁材
LCP GF
色
black
Tabella dei colori (simile)
RAL 9011
Gruppo materiali isolanti
IIIa
Porównywalny wskaźnik śledzenia (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Érintkező anyaga
Cu-alloy
Surface du contact
tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Rated data acc. to IEC

przetestowane zgodnie z normą
IEC 60664-1
IEC 61984
定格電流、最小極数 （Tu=20°C）
17,5 A
定格電流、最大極数（Tu=20°C）
13,9 A
Corrente di dimensionamento, numero minimo di poli (Tu=40 °C)
17 A
Névleges áram, maximális pólusszám (Tu=40°C)
12,4 A
Rated voltage for surge voltage class / pollution degree II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
서지 전압 클래스 정격 전압 / 오염 등급 III/3
160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2,5 kV
서지 전압 클래스 정격 임펄스 전압 / 오염 등급 III/2
2,5 kV
Névleges lökőfeszültség a III/3 túlfeszültség osztályhoz / szennyeződés mértékéhez
2,5 kV
Short-time withstand current resistance
3 x 1s with 76 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated current (Use group B / CSA)
11 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
11 A
Rated current (Use group D / UL 1059)
11 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
85 mm
VPE width
70 mm
VPE height
40 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Hinweise
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • P on drawing = pitch
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
