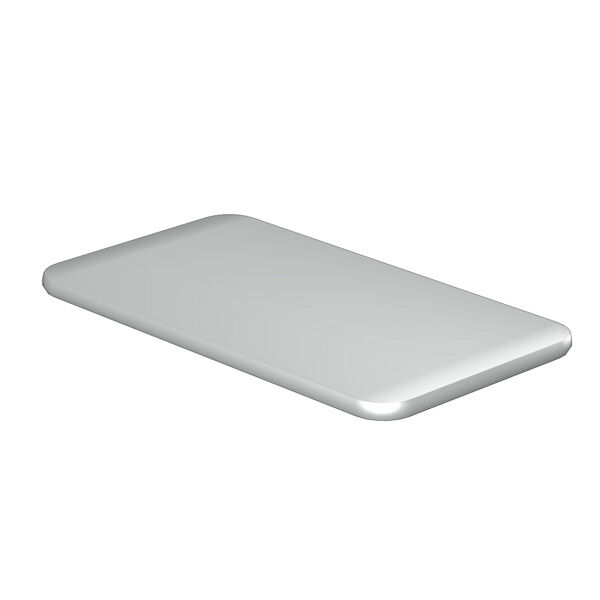

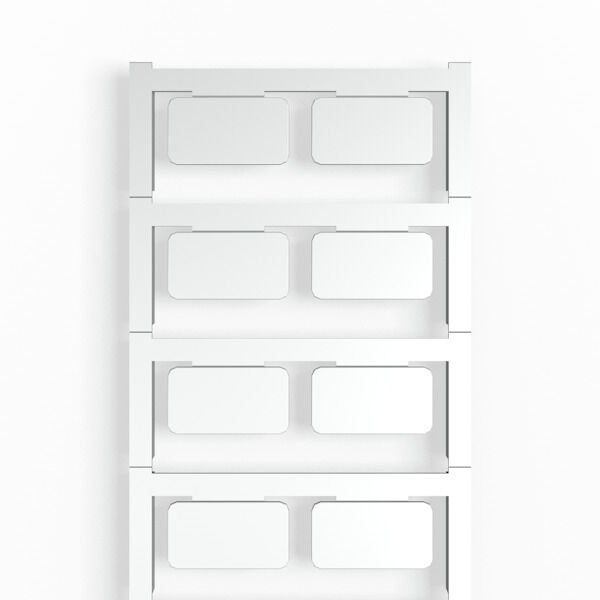

ClipCard, Device markers, 15 x 27 mm, Holder CC-H 15/27, silver

Produkt ID 1876760000
Download datablad Engineering Support Product Downloads
Tilbehør 5 Anvendte produkter 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Változat
ClipCard, Device markers, 15 x 27 mm, Holder CC-H 15/27, silver
Order No.
1876760000
Type
CC 15/27 MC NE SI
GTIN(EAN)
4032248467266
Qty.
80 Styk

Dimensions and weights

Profondeur
1 mm
Depth (inches)
0,039 inch
Hauteur
15 mm
Height (inches)
0,591 inch
Largeur
27 mm
Width (inches)
1,063 inch
Net weight
1,363 g

Temperatures

Üzemi hőmérsékleti tartomány
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.009 kg CO2 eq.

General data

Application/manufacturer
Holder CC-H 15/27
Basic material
Polyamide 66
Bredd
27 mm
Brännbarhetsklass enligt UL 94
V-2
Colour
silver
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
[MCP PLUS](~/p/1925000000)
Halogen
No
Material colour according to resistance code
4
Number of markers per combination
1 MultiCard = Device markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
Printed characters
without
Recommended industries
Machinery
Utförande
pluggable

Device markers

Halogener
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
