DFFC 0.2-0.35 ZRV1.5

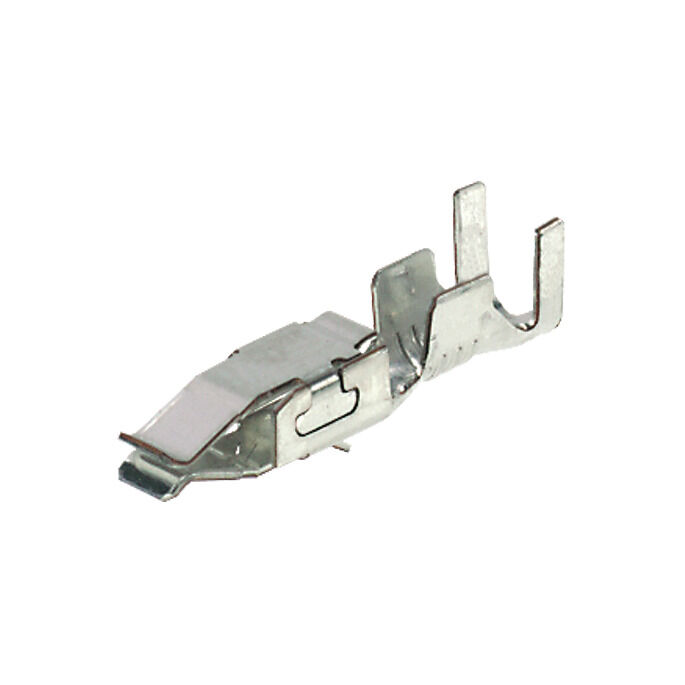

Product image
Similar to illustration

DFFC 0.2-0.35 ZRV1.5

Crimp contact (terminal), 0.35 mm²

Ürün No. 1705310000
Veri sayfasını indir Engineering Support Product Downloads
aksesuarıdır 2 İlgili ürünler 79
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (rated connection) General Rating data Classifications

Approvals

ROHS
Conform

General ordering data

Version
Crimp contact (terminal), 0.35 mm²
Order No.
1705310000
Type
DFFC 0.2-0.35 ZRV1.5
GTIN (EAN)
4008190948573
Qty.
500 adet

Dimensions and weights

Net weight
0,21 g

Temperatures

Ambient temperature
-5 °C…40 °C
Operating temperature
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Plastic
Surface finish
tinned
Colour
silver

System specifications

Version
for holding 0.2 ... 0.35 mm²

Additional technical data

Installation advice
Direct mounting

Conductors for clamping (rated connection)

Stripping length
6 mm
Type of connection
Crimp contact
Wire connection cross section, finely stranded, max.
0,35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
0,35 mm²

General

Installation advice
Direct mounting
Surface finish
tinned

Rating data

Rated cross-section
0,35 mm²
Volume resistance according to IEC 60947-7-x
1,83 mΩ
Power loss in accordance with IEC 60947-7-x
0,56 W

Classifications

ETIM 6.0
EC000796
ETIM 7.0
EC000796
ETIM 8.0
EC000796
ETIM 9.0
EC000796
ETIM 10.0
EC000796
ECLASS 9.0
27-44-02-04
ECLASS 9.1
27-44-02-04
ECLASS 10.0
27-44-02-04
ECLASS 11.0
27-44-02-04
ECLASS 12.0
27-44-02-04
ECLASS 13.0
27-44-02-04
ECLASS 14.0
27-44-02-04
ECLASS 15.0
27-44-02-04
