Properties
| Version | Data use |
| Order No. | 2748640000 |

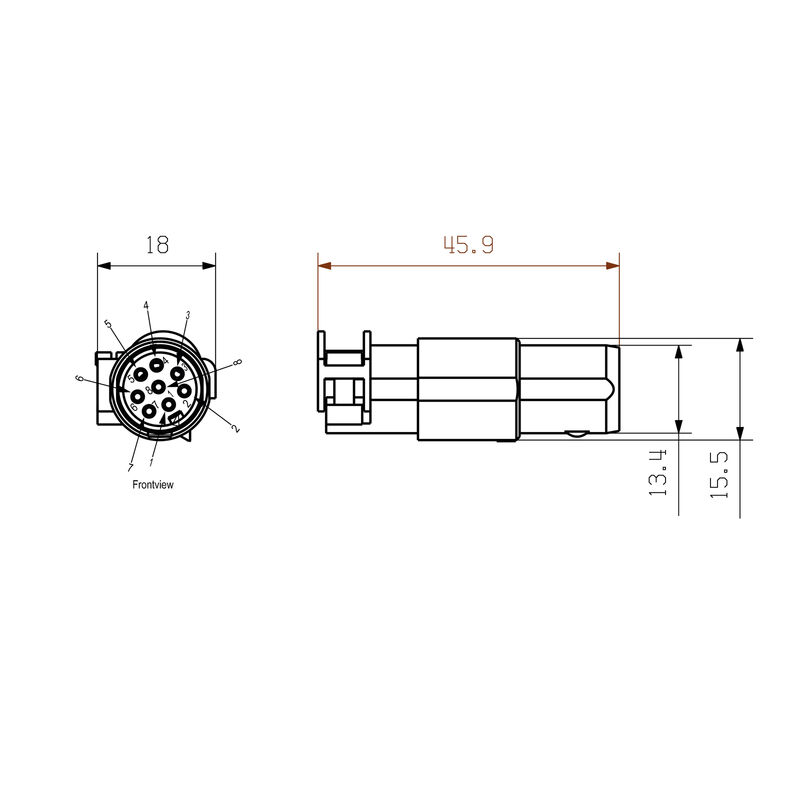

| Type | HDC MBUS HS 8 F |
| GTIN (EAN) | 4050118890686 |
| Qty. | 1 items |
| Depth | 45.9 mm |
| Depth (inches) | 1.807 inch |
| Height | 16.8 mm |
| Height (inches) | 0.661 inch |
| Width | 18 mm |
| Width (inches) | 0.709 inch |
| Net weight | 31 g |
| Limit temperature | -40 °C ... 125 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | fa505316-3e43-4ad0-930c-360dfdbe182a |
| Material | Polycarbonate |
| Number of poles | 8 |
| Plugging cycles | ≥ 500 |
| Pollution severity | 3 |
| Rated current (DIN EN 61984) | 5 A |
| Rated impulse voltage (DIN EN 61984) | 0.8 kV |
| Rated voltage (DIN EN 61984) | 50 V |
| Series | ModuPlug |
| Surge voltage category | III |
| Type | Female |
| UL 94 flammability rating | V-0 |
| Connection type PE | Screw connection via module frame |
| Conductor cross-section, max. | 0.52 mm² |
| Conductor cross-section, min. | 0.09 mm² |
| Type of connection | Crimp connection |
| Wire connection cross section AWG, max. | AWG 20 |
| Wire connection cross section AWG, min. | AWG 28 |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_188727) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2748640000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC002312 |
| ETIM 9.0 | EC002312 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-18 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ROHS | Conform |
