IE-C6EL8UG0150U40XCS-E

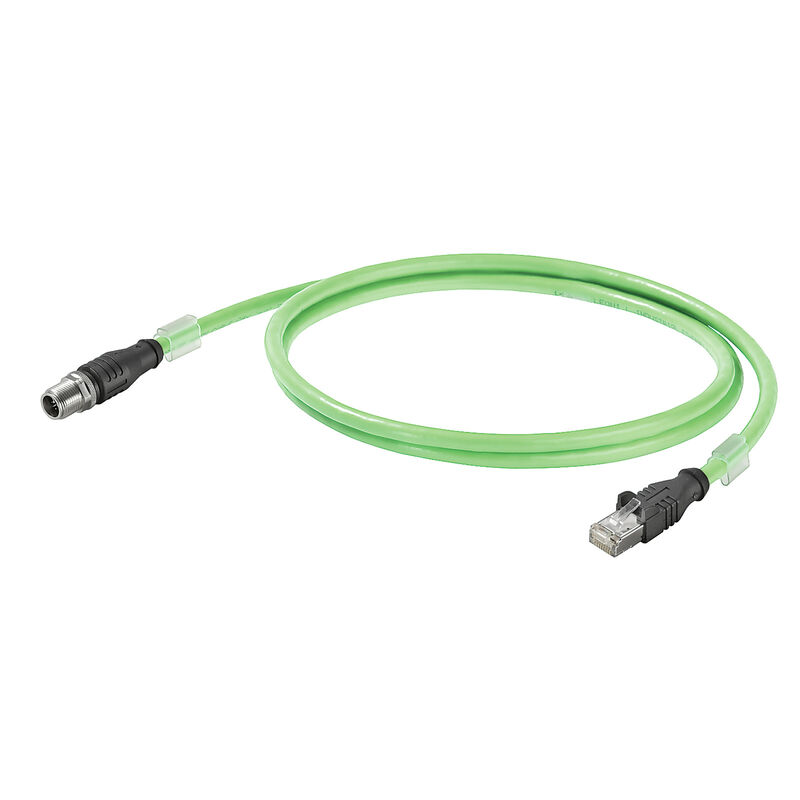

System cable, RJ45 IP 20, M12 X-type IP 67 straight male, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 15 m

Produkt ID 1457580150
Download datablad Engineering-support
Tilbehør 2 Anvendte produkter 44
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Stecker links Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
System cable, RJ45 IP 20, M12 X-type IP 67 straight male, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 15 m
Rendelési szám
1457580150
Type
IE-C6EL8UG0150U40XCS-E
GTIN(EAN)
4050118527612
Ilość
1 Styk

Dimensions and weights

Hossz
15 m
Length (inches)
590,551 inch
Net weight
694 g

Temperatures

보관 온도
-40 °C...80 °C
Рабочая температура
-40 °C...80 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Impervious to smoke
According to IEC 61034
Standard, assembly
UL Style 20963

Standards

Densidad de humo
According to IEC 61034
Norme de construction
UL Style 20963

Cable structure

Arrangement of wire cores
Twisted pair
Colour sequence or wires - wire pairs
white - blue, white - orange, white - green, white - brown
Complete shielding
Shielding braid made from copper wiring
Cross-section
4*2*AWG 26/7 - 4*2*0.128 mm²
Diamètre de la gaine, max.
6,7 mm
Insulation
PE
Insulation cross-section
0,98 mm
Koppardiameter
0,48 µm
Köpenyátmérő, min.
6,1 mm
Number of wires
8
Shielding
S/FTP
Shielding braid thickness
0,1 mm
Sodratok
7
Standard designations
S/FTP
LIO2YSC11Y 4x2x0.15 PIMF FRNC GN
Wire material
Stranded tin-plated copper wire
Wire pair shielding
Aluminium foil
Монтаж
EIA/TIA T568 B
외피 색상
green (RAL 6018)
재질 외피
PUR

Electrical properties of cable

Category
Cat.6A / Class EA (ISO/IEC 11801 2010)
Characteristic impedance
100 ± 5 Ω at 100MHz
Doba propagace signálu
5,2 ns/m
Loop resistance
290 Ω/km
Testspannung Ader-Ader-Schirm
700 Vrms, 50 Hz, 1 min
Transfer impedance
15 mΩ/m at 1 MHz
10 mΩ/m at 10 MHz
30 mΩ/m at 30 MHz

Mechanical and material properties of cable

Abrasion resistance
very good
Halogen
halogen-free, according to IEC 60754-1
Impervious to smoke
According to IEC 61034
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
10 x cable diameter
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1-2

Stecker links

Plug left
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
M12, X-coded, IP67, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
