KMVT LI 2.4 EP/SW

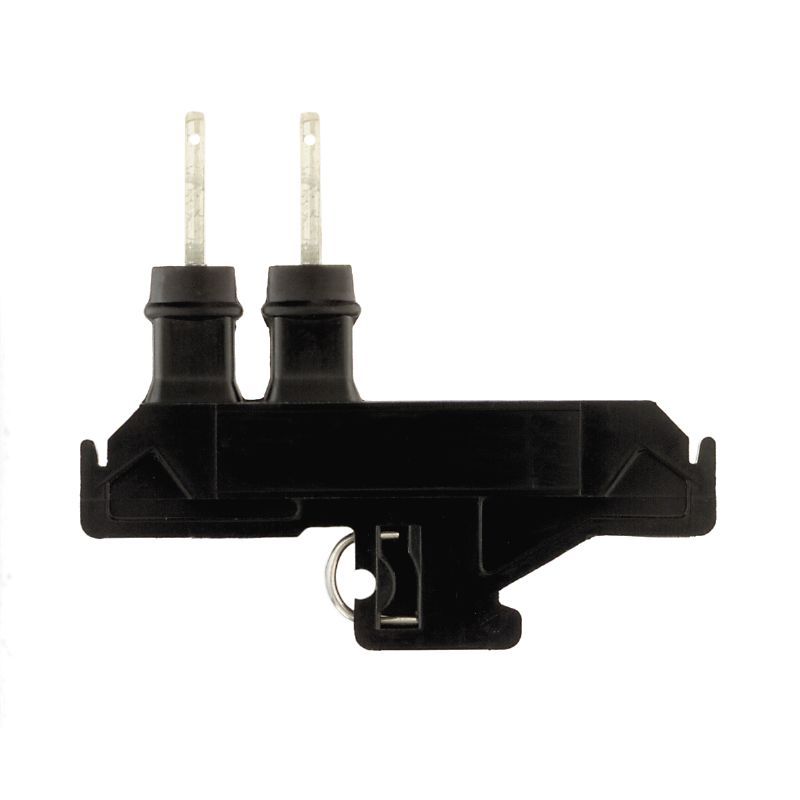

Product image

KMVT LI 2.4 EP/SW

Bloque de bornes de paso, Conexión Termipoint, negro, 0.5 mm², 12 A, 800 V, Número de conexiones: 2

Item No. 0249300000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 4 Related products 1077
Approvals Datos generales para pedido Dimensions and weights Temperaturas Conformidad medioambiental del producto Material data Valores característicos del sistema Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) General Data hodnocení 분류

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

Datos generales para pedido

Version
Bloque de bornes de paso, Conexión Termipoint, negro, 0.5 mm², 12 A, 800 V, Número de conexiones: 2
Order No.
0249300000
Type
KMVT LI 2.4 EP/SW
GTIN (EAN)
4008190004798
Qty.
50 items

Dimensions and weights

Depth
6 mm
Profondeur (pouces)
0,236 inch
Height
70 mm
높이 (인치)
2,756 inch
Width
6 mm
Width (inches)
0,236 inch
Net weight
15,84 g

Temperaturas

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
160 °C

Conformidad medioambiental del producto

RoHS Compliance Status
Conforme sin exención
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Epoxy resin, EP
Colour
black
UL 94 flammability rating
V-0

Valores característicos del sistema

Version
with cable-lug connection
End cover plate required
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 32
N-function
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
No
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Conductors for clamping (rated connection)

2,5 mm²
Clamping range, min.
0,5 mm²
Connection cross-section, finely stranded, min.
0,5 mm²
Connection cross-section, stranded, max.
2,5 mm²
Connection cross-section, stranded, min.
0,5 mm²
Csatlakozási irány
top
Numero di collegamenti
2
Tipo di collegamento
Termipoint connection
Vezeték csatlakozási keresztmetszet AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²
Wire connection cross-section, solid core, max.
2,5 mm²
Wire connection cross-section, solid core, min.
0,5 mm²

General

Mounting rail
TS 32
Normen
In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 20

Data hodnocení

Rated cross-section
0,5 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
12 A
Current at maximum wires
12 A
Standards
In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
5,33 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0,19 W
Pollution severity
3

분류

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
