LIF 1,5M638 R
LIF 1,5M638 R

LIF 1,5M638 R

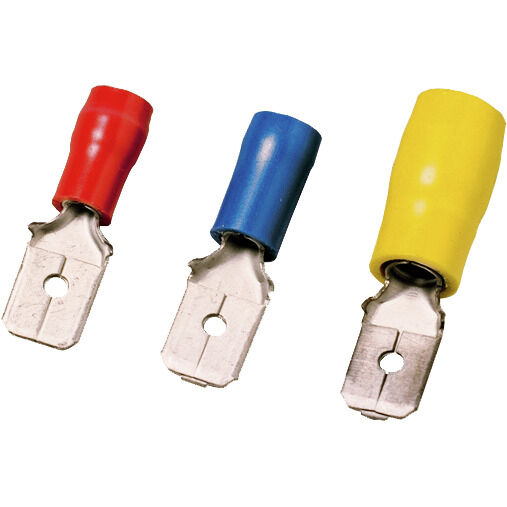

cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red

Ürün No. 9200580000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 3 aksesuarıdır 3 İlgili ürünler 9
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data Connectors Classifications

Approvals

ROHS
Conform

General ordering data

Versione
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
Order No.
9200580000
Tipo
LIF 1,5M638 R
GTIN (EAN)
4032248410422
Qty.
100 adet

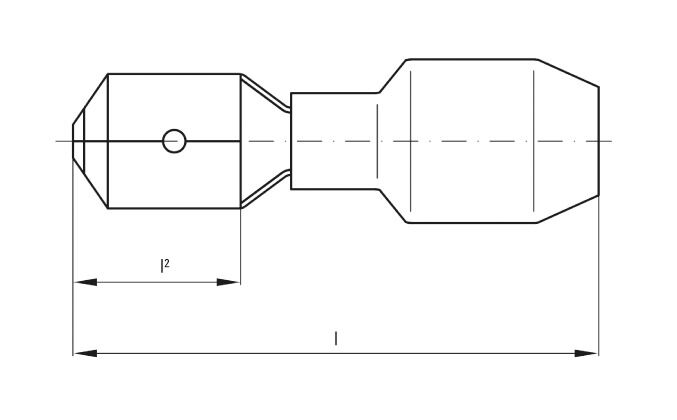

Dimensions and weights

Profondità
5,8 mm
Depth (inches)
0,228 inch
Larghezza
20,8 mm
Width (inches)
0,819 inch
Net weight
0,81 g

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data

Description of article
Cable lug connector 0.5-1.5 mm²

Connectors

Conductor cross-section, max.
1,5 mm²
Conductor cross-section, min.
0,5 mm²
Dimension
6.3 x 0.8 mm
Dimension (flat blade connector)
6.3 x 0.8 mm
Espesor de conexión (d3)
0,8 mm
Insulation
Available
Partially insulated
Materiál - plast
PVC
Műanyag gallér átmérője (D)
4 mm
Plastic collar length (b)
10 mm
Plug-in width (d2)
6,3 mm

Classifications

ETIM 8.0
EC000516
ETIM 9.0
EC000516
ETIM 10.0
EC000516
ECLASS 14.0
27-44-03-92
ECLASS 15.0
27-44-03-92
