RS 16IO 1W L H Z
RS 16IO 1W L H Z

RS 16IO 1W L H Z

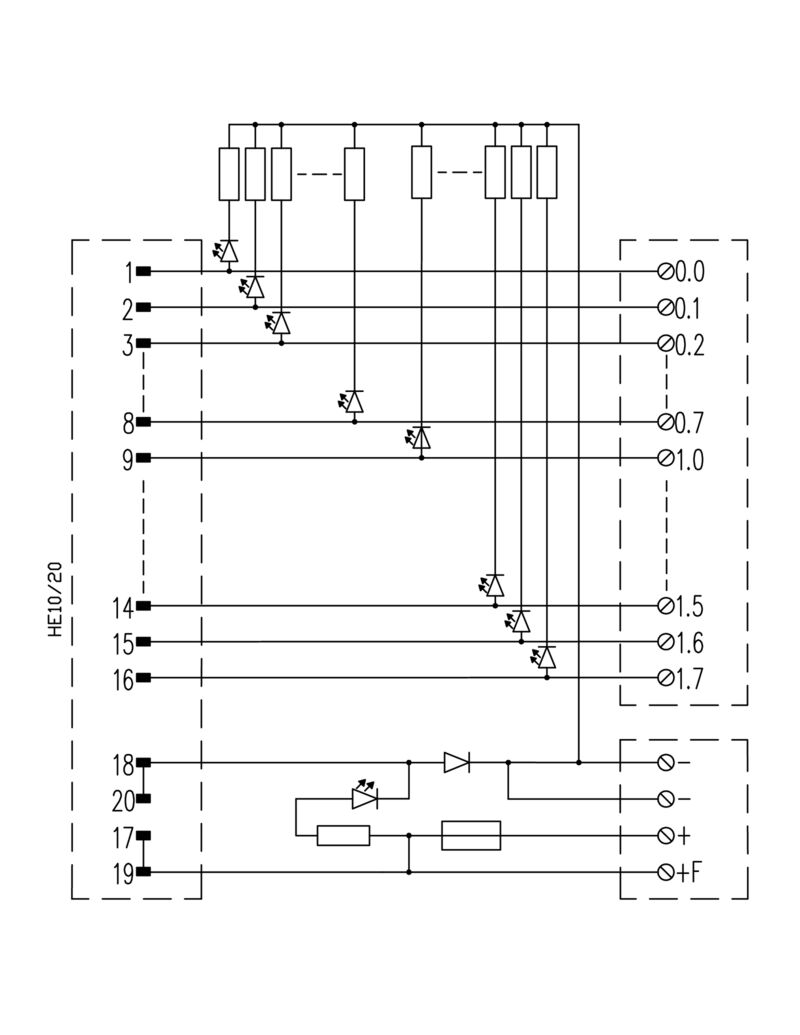

Interface, RS, LED, 1-wire, Tension-clamp connection

Produkt ID 1311770000
Download datablad Engineering Support Product Downloads
Anvendte produkter 35
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Connection data Ratings data Insulation coordination (EN50178) Connection field Supply connection Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Interface, RS, LED, 1-wire, Tension-clamp connection
Order No.
1311770000
Type
RS 16IO 1W L H Z
GTIN (EAN)
4050118114133
Qty.
1 Styk

Dimensions and weights

Depth
72 mm
Depth (inches)
2,835 inch
Height
87 mm
Height (inches)
3,425 inch
Width
46 mm
Width (inches)
1,811 inch
Net weight
114 g

Temperatures

Storage temperature
-40...60 °C
Operating temperature
-25...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
7b5ffb72-271d-4c73-8b09-bd0aaee3697a

General data

LED status display per channel
green
Disconnection per channel
No
Type of test point
No
Fuse per channel
No
LED status of the supply voltage
yellow
Power supply fuse
3.15 A
Common pole polarity
No

Connection data

Connection (field side)
LM2NZF 5.08mm
Numero di poli (lato comando)
20-pole plug
Sistema di cablaggio
1-wire
Соединение (со стороны устройства управления)
Plug-in connector in acc. with IEC60603-13 / DIN41651

Ratings data

Operating voltage
24 V DC ± 10%
Max. current per channel
1 A
Total operating current
2 A

Insulation coordination (EN50178)

According to
DIN EN 50178
Rated insulation voltage
< 50 V AC
Surge voltage category
III
Pollution severity level
2
Pulse voltage test (1,2/50μs)
0,8 kV
Insulation test voltage AC
0,35 kV

Connection field

Campo di serraggio, max.
2,5 mm²
Campo di serraggio, min.
0,13 mm²
Couple de serrage, min.
0,5 Nm
Fest, min. H05(07) V-U
0,5 mm²
Flexible with sleeve, max.
2,5 mm²
Flexible with sleeve, min.
0,5 mm²
Flexible, max. H05(07) V-K
4 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Min. wire cross-section, AWG
AWG 26
Par de apriete, máx.
0,6 Nm
Pevné, max. H05(07) V-U
1,5 mm²
Sezione di collegamento cavo max, AWG
AWG 14
Sleeve with plastic collar, max.
2,5 mm²
Stripping length
7 mm
Type of connection
Tension-clamp connection

Supply connection

Type of connection
Tension-clamp connection
Clamping range, min.
0,13 mm²
Clamping range, max.
2,5 mm²
Solid, min. H05(07) V-U
0,5 mm²
Solid, max. H05(07) V-U
1,5 mm²
Flexibel, min. H05(07) V-K
0,5 mm²
Flexible, max. H05(07) V-K
1,5 mm²
Flexible with sleeve, max.
1,5 mm²
Flexible with sleeve, min.
0,5 mm²
Ferrule with plastic collar, max.
1,5 mm²
Wire cross-section, min. AWG
AWG 26
Wire cross-section, max. AWG
AWG 12
Tightening torque, min.
0,5 Nm
Tightening torque, max.
0,6 Nm
Stripping length
6 mm

Classifications

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
