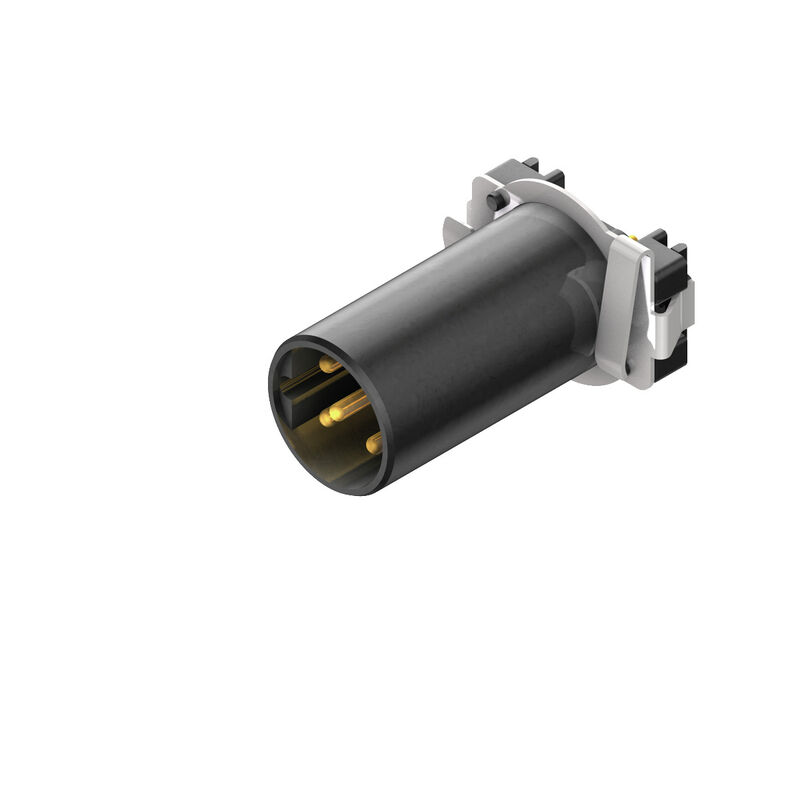

SAID-M12SB-5S-9SMT
Podobné ilustraci
SAID-M12SB-5S-9SMT

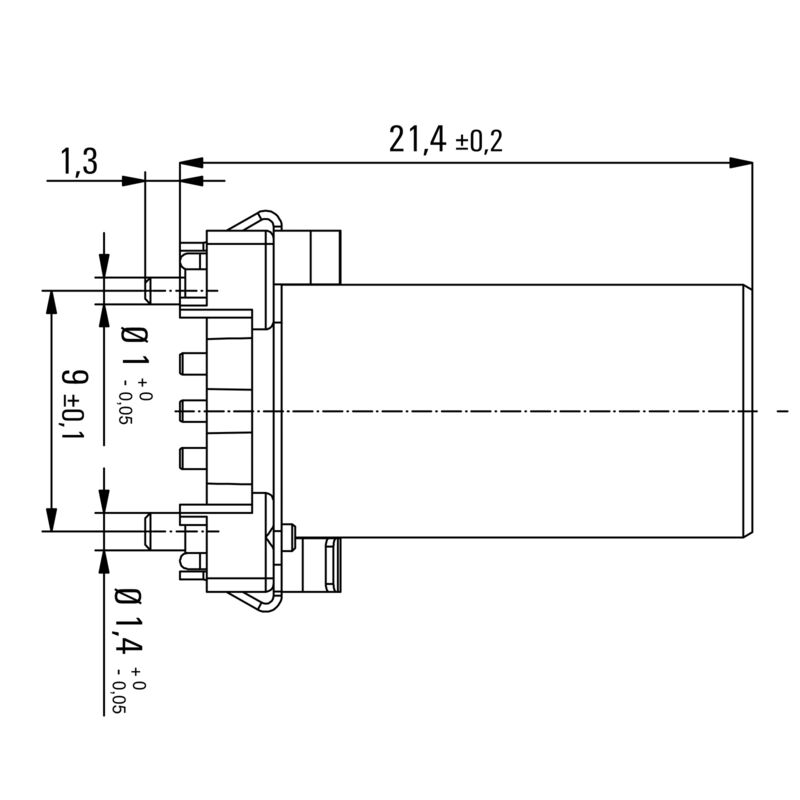

Rozměrový výkres
SAID-M12SB-5S-9SMT

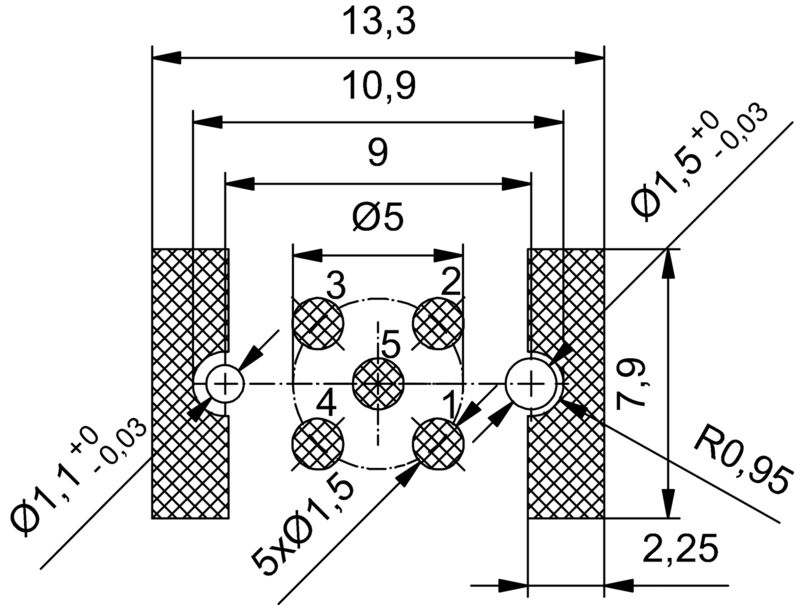

DPS design
SAID-M12SB-5S-9SMT
Schéma pólů
Male

SAID-M12SB-5S-9SMT

Built-in plugs, M12, Mounting thread: , Number of poles: 5, Strand / cable length:

Ürün No. 2422780000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 2 İlgili ürünler 17
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data of PCB plug-in connector General Info Material data System parameters Classifications

Approvals

ROHS
Conform

General ordering data

Wersja
Built-in plugs, M12, Mounting thread: , Number of poles: 5, Strand / cable length:
Nr zam.
2422780000
Typ
SAID-M12SB-5S-9SMT
GTIN (EAN)
4050118430868
Ilość
25 adet

Dimensions and weights

Net weight
2,6 g

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant with exemption
Wyłączenie RoHS (w przypadkach, w których ma to zastosowanie / jest znane)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data of PCB plug-in connector

Collegamento schermato
Yes
Házak
M12 pin
Kodering
B-coded
Количество полюсов
5
Nominal voltage
60 V
Rated voltage
250 V (4-pole) / 60 V (5-pole)
Номинальный ток
4 A
Rated current
4 A
온도 범위
-25…95 °C
Protection degree
IP67
Contact surface
Au (Gold)
Housing main material
LCP
Соединительная резьба
M12
Tightening torque
M12: 0.8 Nm
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn

General Info

Number of poles
5
Klasa palności wg UL 94
V-0
Podstawowy materiał obudowy
LCP
Connection thread
M12
Contact material
Cu-alloy
Contact surface
Au (Gold)
Protection degree
IP67
Plugging cycles
≥ 100

Material data

Grado inflamabilidad según UL 94
V-0
Contact material
Cu-alloy
Kontaktoberfläche
Au (Gold)

System parameters

Cykle wpinania
≥ 100
Grado di protezione
IP67
Liczba biegunów
5
liczba rzędów z biegunami
1

Classifications

ETIM 8.0
EC003557
ETIM 9.0
EC003557
ETIM 10.0
EC003557
ECLASS 14.0
27-44-02-23
ECLASS 15.0
27-44-02-23
