SAIE-M12B-4D-H12TL-M16

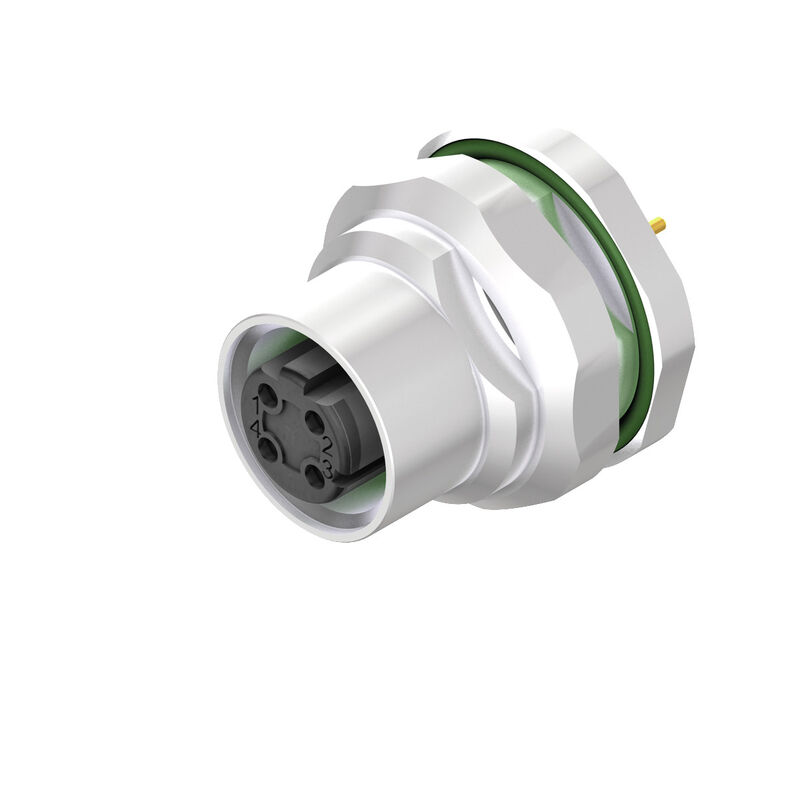

Bildliknande
SAIE-M12B-4D-H12TL-M16

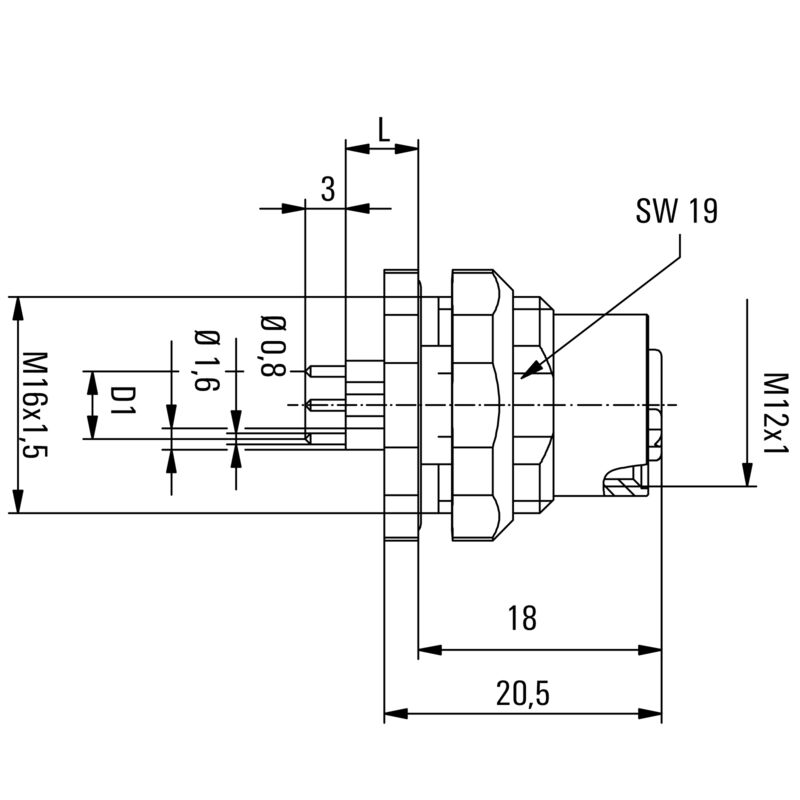

Profilritning
L(board-to-board distance) = 12mm
D1 = 5,0 mm
SAIE-M12B-4D-H12TL-M16

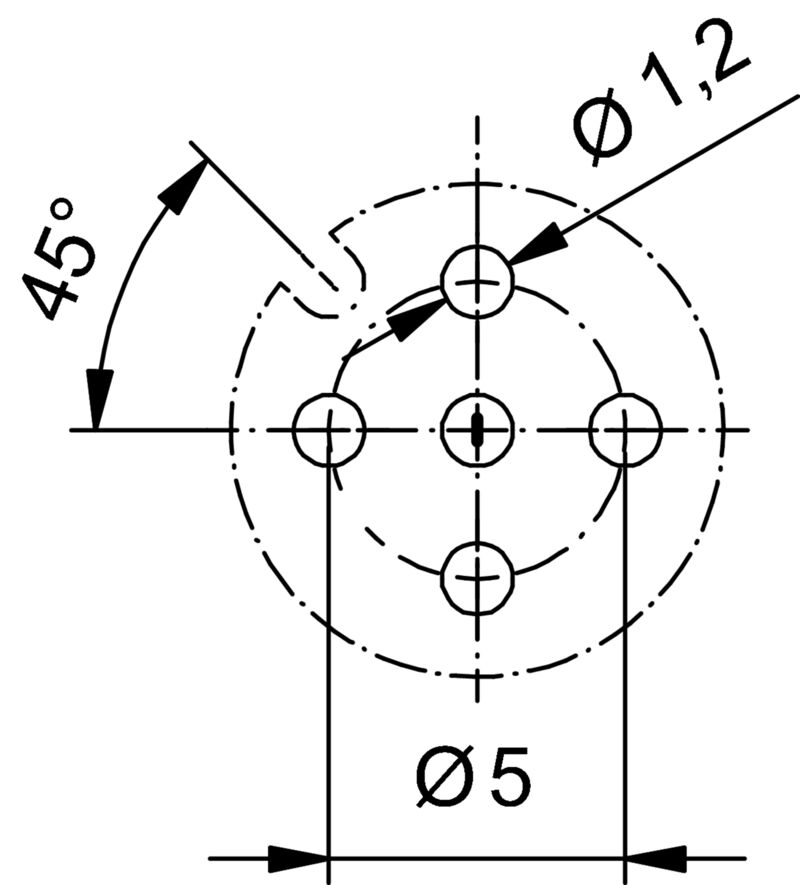

Kretskortsdesign
SAIE-M12B-4D-H12TL-M16

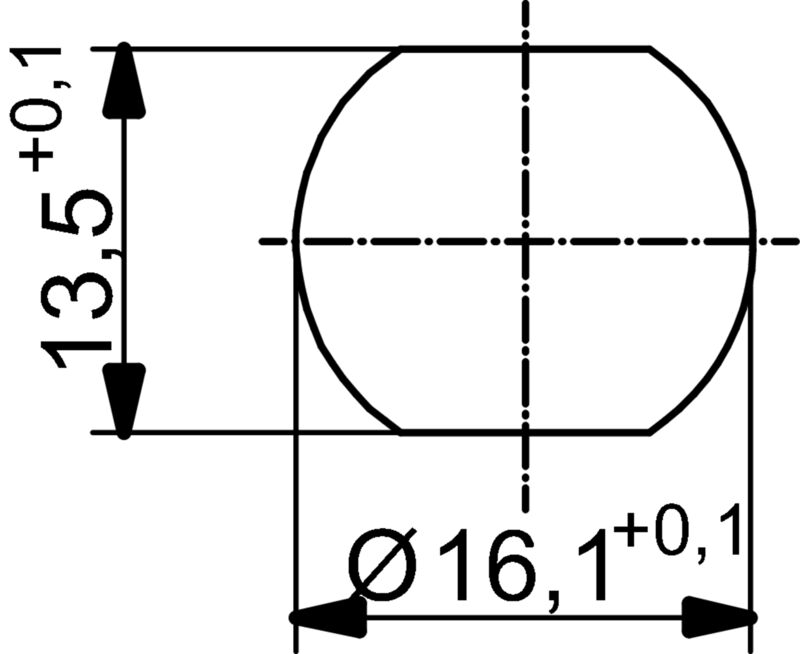

Håltagning frontpanel
SAIE-M12B-4D-H12TL-M16
Polschema
M12 = D-coded

SAIE-M12B-4D-H12TL-M16

Built-in plugs, M12, Mounting thread: M 16 x 1.5, Number of poles: 4, Strand / cable length:

Ürün No. 2422280000
Veri sayfasını indir Ürün İndirmleri Mühendislik desteği
İlgili ürünler 45
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data of PCB plug-in connector General Info Material data System parameters Classifications

Approvals

ROHS
Conform

General ordering data

Versión
Built-in plugs, M12, Mounting thread: M 16 x 1.5, Number of poles: 4, Strand / cable length:
Código
2422280000
Type
SAIE-M12B-4D-H12TL-M16
GTIN (EAN)
4050118431193
Ilość
10 adet

Dimensions and weights

Масса нетто
20 g

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data of PCB plug-in connector

Antal poler
4
Installationshöjd
12 mm
Kapsling
M12 socket
Kodering
D-coded
Monteringstyp
Rear panel mounting
Skärmanslutning
No
Nominell spänning
250 V
Märkspänning
250 V
Nominal current
4 A
Corrente nominale
4 A
온도 범위
-30…80 °C
Skyddsklass
IP67
Contact surface
Au (Gold)
Housing main material
CuZn
nickel-plated
Ścieżka połączenia
M12
Anzugsdrehmoment
M12: 0.8 Nm
Монтажная резьба
M 16 x 1.5
Couple de montage
  • max.:
    1,2 Nm
Mounting torque range
1.2 Nm
Insulation resistance
100 MΩ
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn

General Info

Number of poles
4
Housing main material
CuZn
nickel-plated
Connection thread
M12
Contact material
Cu-alloy
Contact surface
Au (Gold)
Type of mounting
Rear panel mounting
Protection degree
IP67
Plugging cycles
≥ 100

Material data

접점 재질
Cu-alloy
Kontaktyta
Au (Gold)

System parameters

Antal poler
4
Isolationsmotstånd
100 MΩ
Polradstal
1
Skyddsklass
IP67
Stickcykler
≥ 100

Classifications

ETIM 8.0
EC003568
ETIM 9.0
EC003568
ETIM 10.0
EC003568
ECLASS 14.0
27-44-01-10
ECLASS 15.0
27-44-01-10
